Starting from a excavator strike
On a sunny construction site, dust flies freely with the roar of machines, and excavators are busy waving their robotic arms to carry out earthmoving operations. Suddenly, an excavator went on strike without warning, with an abnormal engine noise, and then stopped running. Master Wang, the owner of the excavator, is extremely anxious. This excavator is his "money making tool", and stopping work for one day means losing a lot of profits.

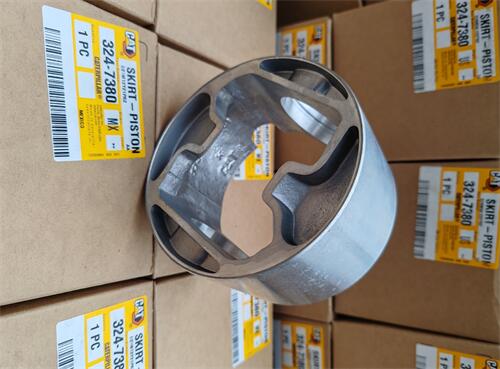

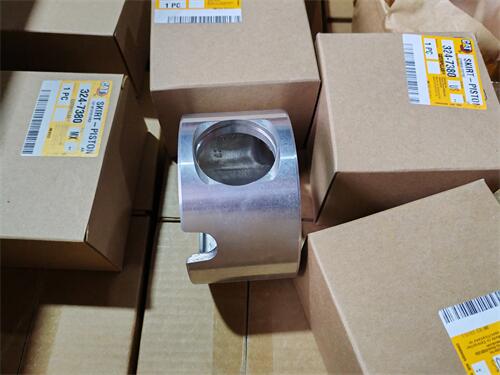

The maintenance personnel quickly rushed to the scene, and after careful inspection and diagnosis, the problem pointed to a key component of the engine - the piston. And this excavator is equipped with the Cat C9 engine, with piston models 3247380, 324-7380, and 2651401. Many people may not pay much attention to this small piston, but it plays a crucial role in the operation of the engine, just like the heart valve in the human body. Although small, it is related to the normal operation of the entire "life system". The "strike" of excavators also gives us the opportunity to delve into the mysteries of Cat C9 engine pistons.

Get to know Cat C9 engine pistons
Basic information of piston
The pistons of models 3247380, 324-7380, and 2651401 are specifically designed for Cat C9 engines. From a parameter perspective, they have strict size standards, and their diameter, height, and other dimensions have been meticulously designed and calculated to ensure perfect compatibility with the engine's cylinders. For example, the tolerance of piston diameter is strictly controlled within a very small range to ensure that the piston can move back and forth flexibly in the cylinder without affecting the performance of the engine due to excessive or insufficient clearance. Excessive clearance may cause air leakage and reduce engine power; A too small gap may cause excessive friction between the piston and the cylinder wall, and even lead to serious malfunctions such as cylinder pulling.
In terms of material, these pistons usually use high-strength aluminum alloy materials. Aluminum alloy has the advantages of light weight, good thermal conductivity, and high strength. Lightweight can reduce the inertia force of the piston during reciprocating motion, thereby lowering the energy consumption and vibration of the engine; Good thermal conductivity can quickly transfer the heat generated by the piston during operation, avoiding damage to the piston due to overheating; A higher strength can ensure that the piston maintains a stable structure and performance even under high temperature and pressure.

The role of pistons in engines
During the operation of the Cat C9 engine, the piston acts as an tireless "dancer", performing precise and powerful movements on the cylinder stage, converting energy and driving the excavator's work.
When the engine starts, air first enters the cylinder through the intake system, and then the fuel injector injects fuel into the cylinder, mixing with the air to form a combustible mixture. Then, the spark plug ignites (for diesel engines, it is self ignition through compression), and the combustible mixture burns violently, instantly producing high-temperature and high-pressure gas. These gases expand and generate strong thrust on the piston, pushing it to make reciprocating linear motion inside the cylinder. The reciprocating motion of the piston is transmitted to the crankshaft through the connecting rod, converting linear motion into rotational motion of the crankshaft. The rotational motion of the crankshaft ultimately drives the hydraulic pump, walking mechanism, and working device of the excavator through a series of transmission devices, achieving various operations such as excavation, loading and unloading, and transportation of the excavator.
It can be said that the piston is a key link in the engine's conversion of fuel chemical energy into mechanical energy, and its performance directly affects the engine's power output, fuel economy, and reliability. If the engine is compared to the heart of a machine, then the piston is the most powerful "heart muscle" in the heart, continuously providing surging power for the operation of the entire excavator.

Warning light for piston malfunction
Common fault manifestations
In the daily use of excavators, once there is a problem with the piston of the Cat C9 engine, various warning signals will be issued through various fault manifestations.
The decrease in power is one of the most intuitive manifestations. The excavator, which was originally capable of easily excavating hard soil and rock, experienced a significant decrease in excavation force and work efficiency after a piston failure. It's like an athlete suddenly losing physical strength before a competition and unable to perform at their normal level. Taking a construction site as an actual case, an excavator equipped with a Cat C9 engine gradually experienced a lack of power after several months of normal operation. Originally, one bucket could only be filled with soil and rock, but now it can only hold half a bucket. Moreover, during the excavation process, the sound of the engine also became dull and powerless.
Increased fuel consumption is also a common signal of piston failure. When there are problems such as piston wear and poor sealing, gas leaks inside the engine, resulting in insufficient combustion. In order to maintain the normal operation of the excavator, the engine needs to consume more fuel. According to statistics, in some cases of piston failure, the fuel consumption of excavators has increased by 15% -20% compared to normal conditions, which undoubtedly greatly increases the cost of use.
Abnormal sounds cannot be ignored either. When the gap between the piston and the cylinder wall is too large, or when the piston pin is loose, the engine will make a crisp knocking sound during operation, like a collision between metals. This sound becomes more pronounced as the engine speed increases, and can even be heard clearly in a quiet environment, even standing next to an excavator.

Deep analysis of faults
Behind piston failures, there are multiple complex reasons that are intertwined and jointly affect the performance and lifespan of the piston.
Oil quality is a key factor. If the quality of the fuel used is poor, impurities and moisture can cause incomplete combustion, resulting in carbon deposits. These carbon deposits will adhere to the surface of the piston, exacerbating its wear. Poor quality lubricating oil cannot provide good lubrication and heat dissipation for the piston, making it more susceptible to damage in high temperature and high pressure environments. For example, in some remote construction sites, due to unstable oil supply channels, substandard fuel and lubricants are used, resulting in frequent malfunctions of excavator pistons.
The impact of the working environment on the piston should not be underestimated. Excavators often operate in harsh environments, where dust, sediment, and other impurities can easily enter the engine interior. These impurities are like tiny 'sandpaper', rubbing between the piston and cylinder wall, causing piston strain. Excavators working in dusty environments such as mines and deserts have significantly accelerated piston wear rates. High temperature and high humidity environments can accelerate the aging and corrosion of piston materials, reducing the strength and performance of the piston.
Operating habits are also closely related to piston failures. Frequent rapid acceleration, sudden braking, and prolonged overload operation can cause excessive pressure and impact on the piston, leading to damage during acceleration. Some operators, in order to pursue work efficiency, carry out full load operations on excavators without sufficient preheating, which greatly damages the pistons. In some large-scale construction projects, due to tight schedules, operators work continuously for long periods of time, resulting in serious malfunctions such as engine overheating and piston breakage.

The maintenance and replacement techniques of pistons
Daily meticulous care
To keep the pistons of the Cat C9 engine in good working condition, careful daily maintenance is essential. Regular inspection is the first step, and it is recommended to conduct a comprehensive inspection of the piston every once in a while (such as 500-1000 hours of work). The inspection includes examining the appearance of the piston and checking for signs of wear, strain, carbon buildup, etc; It is also possible to determine the degree of piston wear by measuring the diameter, height, and other dimensions of the piston and comparing them with standard values. During the examination process, attention should be paid to details and not miss any potential issues, just like a doctor conducting a physical examination for a patient, with meticulous attention to detail.
The correct selection of engine oil is also crucial. Engine oil is as important to the piston as blood is to the human body. It not only lubricates and reduces friction between the piston and cylinder wall, but also takes away the heat generated by the piston during operation, providing cooling and heat dissipation effects. Therefore, it is necessary to choose the appropriate specification and quality of engine oil according to the engine model and usage environment. For example, in high-temperature environments, high viscosity engine oil should be selected to ensure good lubrication performance; In cold regions, it is necessary to choose engine oil with good low-temperature fluidity to ensure that the piston can receive timely lubrication when the engine is started at low temperatures. At the same time, it is necessary to regularly replace the oil and oil filter. Generally speaking, the oil change cycle is 200-300 hours of working time, which can ensure the cleanliness and performance of the oil and provide reliable protection for the piston.
In addition, keeping the engine clean cannot be ignored. Regularly clean the dust and debris outside the engine to prevent them from entering the interior of the engine. Especially in dusty working environments, it is necessary to strengthen the cleaning and replacement of the air filter to ensure that the air entering the engine is clean and reduce the wear of the piston caused by dust. Just as we need to maintain a clean living environment to live a healthier life, engines also require a clean 'working environment' for the pistons to function better.

Accurate timing for replacement
When the piston experiences severe wear, tear, deformation, or when the piston ring loses elasticity or seals poorly, it is necessary to consider replacing the piston. To determine whether the piston needs to be replaced, specific indicators and phenomena can be used. For example, when the engine's power drops significantly, fuel consumption increases significantly, and other component problems are checked and eliminated, it is likely that the piston has malfunctioned; If the engine makes abnormal knocking sounds during operation, and the sound intensifies with the increase of speed, it may also be due to excessive clearance between the piston and the cylinder wall, and the piston needs to be replaced.
There are a series of precautions and procedures when replacing the piston. Firstly, it is necessary to choose reliable original pistons or substitutes that meet quality standards, ensuring that the material, size, performance, etc. of the piston match the engine. Be careful when dismantling old pistons to avoid damage to cylinder walls, connecting rods, and other components. Special tools can be used to disassemble according to the correct steps. For example, first remove the cylinder head, then take out the piston connecting rod assembly, and then separate the piston from the connecting rod. When installing a new piston, it is necessary to strictly follow the assembly process requirements. First, install the piston ring correctly on the piston, paying attention to the staggered opening position of the piston ring to ensure good sealing performance; Then install the piston connecting rod assembly into the cylinder, and apply an appropriate amount of lubricating oil during installation to reduce friction and facilitate installation. At the same time, it is necessary to ensure that the installation position of the piston connecting rod assembly is correct, and the tightening torque of the connecting rod screws should meet the standard requirements. Generally speaking, the tightening torque of the connecting rod screws of the Caterpillar C9 engine is between 25-30N, and they should be tightened step by step from the middle to both sides.
After replacing the piston, it is necessary to debug and break in the engine. During the debugging process, it is necessary to check whether the various performance indicators of the engine, such as power output, fuel consumption, sound, etc., are normal; During the running in stage, it is necessary to avoid prolonged high load operation of the engine, and operate according to the specified running in mileage and speed requirements, so that the new piston and cylinder wall can better cooperate and achieve the best working state.

The "Nirvana in Fire List" of Pistons in the Market
Great competition between the original factory and the subsidiary factory
In the excavator parts market, pistons are mainly divided into two camps: original factory and subsidiary factory, which have significant differences in multiple aspects.
The original piston, as a product provided by excavator manufacturers, has extremely high quality assurance. It is produced strictly according to the design requirements of the engine, from material selection to processing technology, every link has been strictly controlled and tested, and the matching degree with the engine can be called perfect. This high degree of compatibility enables the original piston to perform excellently in terms of performance, fully utilizing the power of the engine and ensuring efficient operation of the excavator. For example, in terms of power output, the original piston can stably transmit the explosive force of gas to the crankshaft, making the engine's power output smoother and stronger; In terms of fuel economy, due to its good sealing and precise coordination, it can effectively reduce energy loss and lower fuel consumption. However, the price of original pistons is relatively high, mainly due to factors such as brand value, research and development costs, and strict quality control systems. Taking the original piston of Cat C9 engine as an example, its price may be 1.5-2 times that of the auxiliary piston.
The subsidiary piston has attracted many users with its price advantage. Due to the large number of manufacturers and fierce market competition, the prices of subsidiary pistons are usually relatively affordable, which can save users a certain amount of procurement costs. However, the quality of the secondary factory pistons varies greatly, which is also the most concerning issue for users. Some high-quality secondary factory pistons also follow certain standards in the production process, using high-quality materials and advanced technology. Their performance is not much different from that of the original factory pistons, which can meet the basic needs of excavators while providing users with higher cost-effectiveness. However, there are also a large number of low-quality subsidiary pistons in the market, which cut corners in material selection and have insufficient machining accuracy, leading to problems such as wear, deformation, and fracture during use. This not only affects the normal operation of excavators, but may also cause serious damage to engines, increase maintenance costs and downtime.

Recommended high-quality brands
Among numerous piston brands, some stand out with good reputation and excellent quality. MAHLE is one of them, a globally renowned automotive parts supplier with deep technical accumulation and rich experience in piston manufacturing. Mahler pistons have won the trust of a large number of users with their high-quality materials, precise manufacturing processes, and strict quality inspections. Its products not only perform well in terms of performance, but also have a long service life, providing stable and reliable power support for excavators. Mahler pistons are widely used in excavators that require high piston performance.
Federal Mogul is also a long-standing and powerful automotive parts manufacturer. Federal Mogul pistons adopt advanced design concepts and manufacturing technologies to meet the needs of different engines. It has excellent stability and reliability in high temperature and high pressure environments, which can effectively reduce the probability of engine failure and improve the work efficiency of excavators. Federal Mogul pistons also pay attention to environmental protection and energy conservation. Through optimized design, they reduce fuel consumption and exhaust emissions, meeting the requirements of modern society for environmental protection.
There are also some practical tips when choosing pistons. Firstly, it is necessary to choose legitimate channels for purchase, such as authorized dealers, well-known e-commerce platforms, etc., which can ensure the quality of the product and after-sales service. Secondly, it is important to carefully examine the packaging and labeling of the product. Genuine piston products typically have exquisite packaging and clear labeling, including brand, model, production date, manufacturer, and other information. You can also verify the authenticity by checking the anti-counterfeiting code of the product. To understand the reputation and user evaluation of the product, we can learn about other users' experience and evaluation of the brand piston through the Internet, industry forums and other channels, so as to provide reference for our own purchase.

Write in the final 'Piston Revelation'
The small piston contains a lot of energy, and it is the core component of the Cat C9 engine, as well as the power source for efficient operation of excavators. From its working principle to fault manifestation, from maintenance to market selection, every link is worth our in-depth understanding and attention. During the use of excavators, it is important to keep the maintenance of the pistons in mind, regularly inspect and carefully maintain them, so that the excavator can always maintain a good working condition and contribute to our engineering construction.
If you have any experience or stories in the use, maintenance, and selection of excavator pistons, please feel free to share them in the message section. Let's communicate and make progress together.
