How much do you know about the mysterious 91-01-3703n?
Hello everyone! I am a mechanical blogger from Yingpuwei, who is obsessed with the research of engineering machinery parts. Today, we are going to talk about a crucial small role in the Caterpillar 329d engine - the 91-01-3703n starter motor, 24V 12t 7.5kw. Does this number sound a bit mysterious? Don't worry, let me ask everyone, do you know what role it plays in the Cat 329d engine? Why can it become an indispensable part of the entire power system? Next, let's unveil its mysterious veil together.

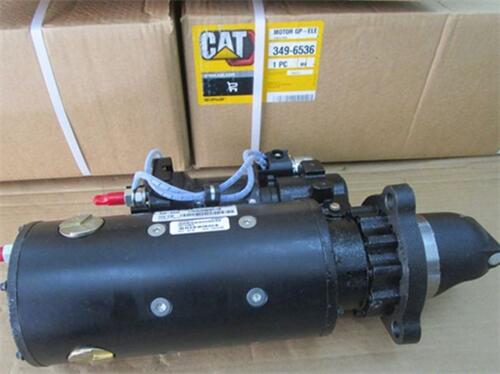

Small parts, great energy
Now, let's take a closer look at the parameters of the 91-01-3703n starter motor. 24V indicates that its operating voltage is 24 volts, which is the electrical basis for its normal operation; 12t, where "t" may represent torque and other related parameters, meaning that it can output strong torque when starting, quickly "waking up" the engine; 7.5kw is its power, which may not be considered high for some large machinery, but it is just right for starting a Cat 329d engine.
In the entire Cat 329d engine system, this small starter motor plays a crucial role in starting the engine. It can be said that it is like the "pacemaker" of an engine. Imagine when you press the start button of an excavator, the current instantly flows into the 91-01-3703n starter motor, which quickly converts electrical energy into mechanical energy, driving the crankshaft of the engine to start rotating, allowing the engine to gradually enter normal operation from a stationary state. The entire excavator is thus given "life" and can carry out various high-intensity operations.

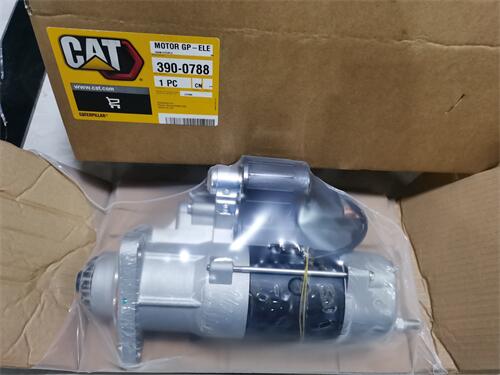

Working principle revealed
Some friends may be curious, how does this small 91-01-3703n starter motor make the engine go from stationary to running? Next, I will give you a detailed explanation of its working principle.
In fact, its working principle is closely related to the knowledge of electric conductors being subjected to forces in a magnetic field that we learned in middle school physics. Simply put, when we press the start button, 24V current will flow from the battery into the 91-01-3703n starter motor. This starter motor is mainly composed of a DC series excited motor, a control mechanism, and a clutch mechanism. The current first enters the DC series excited motor, which has a stator and rotor inside. The stator is wound with a magnetic field coil, which generates a magnetic field when powered on; On the rotor is the armature winding. When current passes through the armature winding, according to Ampere's law, the energized conductor will be subjected to force in a magnetic field, and the armature winding will experience an electromagnetic torque. This electromagnetic torque will cause the rotor to start rotating, just like when we turn the blades of a small fan by hand, the small fan will start rotating.
As the rotor rotates, it will drive the starting gear connected to it to start rotating. This starting gear is not an ordinary gear, its mission is to precisely mesh with the ring gear on the engine flywheel. When the two successfully mesh, the rotational power of the rotor will be transmitted to the engine flywheel through the starting gear, thereby driving the crankshaft of the engine to start rotating. It's like using a small gear to drive a large gear to rotate, and the large gear is connected to a shaft, and the shaft will rotate accordingly. In this way, the engine is successfully 'awakened' and begins its working journey.
In this process, the control mechanism is like an intelligent commander, responsible for controlling the on/off of the current and the engagement and disengagement of the starting gear and flywheel ring gear. The clutch mechanism is like a flexible "mediator", which can quickly cut off the power connection between the starter motor and the engine after the engine is successfully started, avoiding damage to the starter motor during high-speed operation of the engine. So, despite the small size of the 91-01-3703n starter motor, its various internal components work together perfectly to complete the conversion from electrical energy to mechanical energy, as well as the important task of starting the engine.

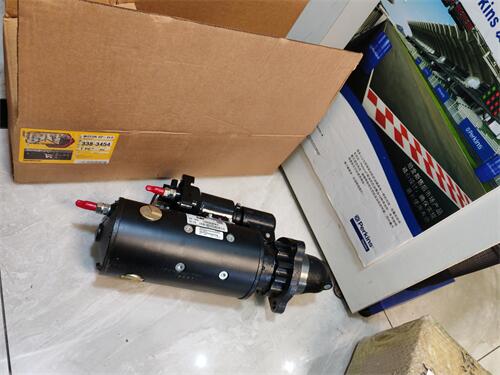

Application scenarios and 'partners'
After understanding the working principle of the 91-01-3703n starter motor, everyone must still want to know on which "battlefields" it has demonstrated its skills. This starter motor is mainly used for excavators of Caterpillar E324D, 325D, 329D and other models. In various large-scale engineering operations, these excavators are the main force, and the 91-01-3703n starter motor is the "key" for them to start working.
Take mining as an example, excavators need to operate in harsh environments to extract ore from hard rocks. Every time it starts, the 91-01-3703n starter motor must respond quickly, relying on its powerful torque to quickly start the engine and enable the excavator to quickly engage in high-intensity excavation work. At construction sites, excavators need to perform tasks such as earthwork excavation and foundation treatment. Whether starting in the morning or restarting after a brief pause, the 91-01-3703n starter motor can function stably, ensuring that the excavator starts in a timely manner and does not delay the project progress.
In the big family of engines, the 91-01-3703n starter motor also has many good "partners". It is closely connected to the battery, which provides it with 24V electrical energy and is the energy source for its operation. The two are like a pair of tacit partners, with the battery supplying power to the starter motor at any time, ensuring that it can start quickly when needed. It also works closely with the flywheel ring gear of the engine, and the starting gear of the starter motor is precisely matched with the flywheel ring gear to transmit the power of the starter motor to the engine, allowing the engine to start smoothly. In addition, it also works in conjunction with various sensors, which monitor the engine's status and other information in real time. When the engine needs to be started, a signal is sent to the starter motor, and the starter motor starts working.

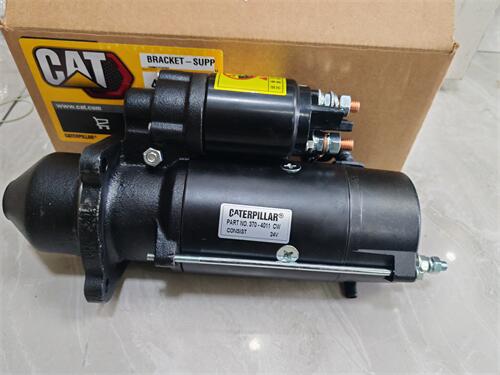

Common faults and response strategies
In practical use, the 91-01-3703n starter motor may also experience some malfunctions, affecting the normal operation of the excavator. Below, I will talk to you about some common faults and corresponding solutions.
The starter motor is not running
Sometimes, when we press the start button, we find that the starter motor has no response, which is really a headache. There are many reasons for this situation. Firstly, it may be due to battery depletion, or a broken connection wire or loose connector. Just like how we can't turn on our phones when they run out of battery, the starter motor doesn't have enough power and naturally won't work. In addition, severe erosion of the starter relay contacts or open circuit of its coils, severe erosion of the starter electromagnetic switch contacts or open circuit of its suction and pull coils, can also cause the starter to not operate. Another possibility is that the internal winding of the starter DC motor is open or short circuited, or the starter armature shaft is bent and the gap between the shaft and the bearing is too tight. In addition, severe erosion of the commutator, excessive wear of the electric brush, and the electric brush getting stuck in the brush holder or pressing the brush spring too soft can also affect the normal operation of the starter motor.
When encountering a situation where the starter motor is not running, we can check it this way. Turn on the headlights or honk the horn first. If the headlights do not light up and the horn does not sound, it means that the circuit may be dead. It is necessary to check whether the battery and wires are dead or open. If the headlights light up and the horn sounds, it means that the battery is charged. At this time, you can use a screwdriver to overlap the two terminals of the starter switch. If the starter is idling, it indicates that there is a problem with the starter switch; If the starter does not turn and is accompanied by strong sparks, it indicates that there is a short circuit or grounding point inside the starter; If there is neither rotation nor spark, it indicates that there is an open circuit inside the starter motor.
The starter motor runs weakly
There is also a situation where the starter can rotate, but the rotation is slow and weak, and the engine cannot be driven. What is the reason for this? The most common issues are insufficient battery storage or loose connections in the starting circuit wires, resulting in poor contact. In addition, poor contact between the electric brush and the commutator, as well as local short circuits in the motor winding, can also cause the starter motor to run weakly. Also, the motor shaft rotation is not flexible or the engine assembly is too tight, resulting in excessive rotational resistance, which can also make the starter motor appear "powerless".
When the starter motor runs weakly, we first need to check if the battery is fully charged, and then check if there are any poor contact parts in the circuit. If all of these are okay, then it may be a problem with the starter itself. Before starting, turn on the headlights. If the headlights suddenly dim when starting, it is likely that the battery is running low. We can use a test lamp to directly place it on the positive and negative poles of the battery and start it again. If the brightness of the test lamp suddenly decreases at this time, it can be determined that the battery is running low. If there is poor contact in the circuit, it is usually caused by loose or corroded contact and connection points. We can determine this by measuring the voltage. Measure the voltage between the main switch power terminal of the starter and the engine housing during startup, and then measure the terminal voltage of the positive and negative terminals of the battery. Normally, the two should be equal. If the former is much lower than the latter, it indicates that there is a large contact resistance in the circuit.

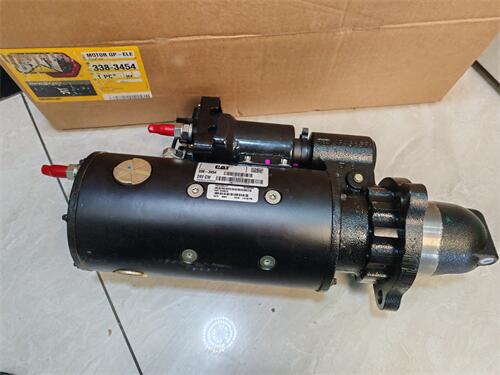

Maintenance Tips
To keep the 91-01-3703n starter motor in good working condition and extend its service life, daily maintenance is essential. Below, I will share with you some practical maintenance tips.
In terms of daily inspection, we need to carefully check whether the wiring of the 91-01-3703n starter motor is loose before using the excavator every time. Loose wiring is a big problem as it can cause poor contact, affect the normal transmission of current, and ultimately prevent the starter from functioning properly. Just like the electrical plugs in our home, if they are not plugged in properly, the appliances cannot function properly. We can gently shake the wiring with our hands to see if there are any signs of looseness. If you find it loose, be sure to tighten it in a timely manner.
Regular maintenance is also crucial. Every once in a while, we need to check the wear of the electric brush. The electric brush is an important component in the starter motor, which constantly rubs against the commutator during operation and will wear out over time. When the electric brush wears out to a certain extent, it will affect the performance of the starter motor. Generally speaking, when the height of the electric brush wears down to about one-third of its original level, replacement needs to be considered. We can measure the height of the electric brush with tools such as calipers to determine whether it needs to be replaced.
In addition, we also need to regularly clean the dust and debris inside the starter motor. During excavator operation, the surrounding environment is often harsh, and dust, dirt, and other substances can easily enter the interior of the starter motor. Excessive accumulation of dust and debris not only affects the heat dissipation of the starter motor, but may also lead to increased wear of internal components. We can use compressed air or specialized cleaning agents to clean the interior of the starter motor, but it is important to disconnect the power supply before cleaning to ensure safety.
When starting the excavator, there are also some things to pay attention to. The startup time should not be too long, generally not exceeding 5 seconds. If the initial startup is unsuccessful, do not start continuously and wait for 1-2 minutes before attempting to start again. This is because continuous starting will cause the starter to work for a long time, generating excessive heat and damaging the starter. Just like running, if we keep running fast, our bodies won't be able to handle it.
The above are some maintenance tips about the 91-01-3703n starter motor, hoping to be helpful to everyone. Proper maintenance not only allows the starter to work better, but also saves maintenance costs and improves the efficiency of excavators. Everyone must take it seriously during use!

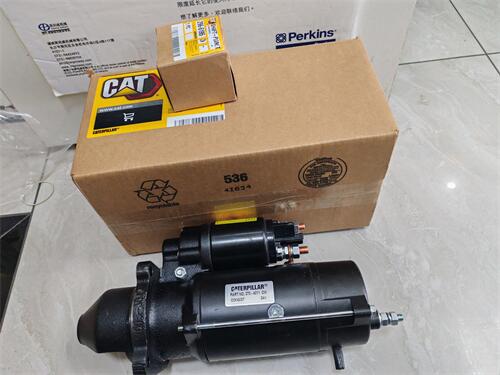

Summary and Interaction
Alright, that's all for today's content about Caterpillar Cat 329d engine parts 91-01-3703n starter motor 24V 12t 7.5kw. From its mysterious number, to its powerful energy, ingenious working principle, to its wide range of application scenarios, as well as common faults and maintenance methods, I believe everyone has gained a deeper understanding of it. This small starter motor, seemingly ordinary, plays an irreplaceable role in the power start-up of excavators, like a small screw that can steadily support the operation of the entire machine.
