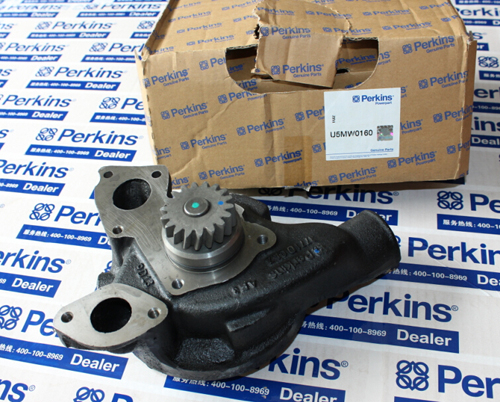

Perkins珀金斯850-854F柴油發動機T421441水泵
詳細描述

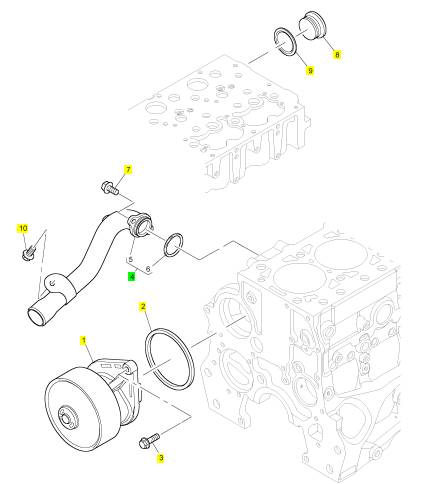

項目 零配件號碼 最新件號 描述
1 T412070 1 T421441 水泵
2 T412174 1 T412174 密封 - 水泵
3 2314 H004 2 2314 H004 螺旋
4 T411884 1 T411884 管 -冷卻器
7 T412379 2 T412379 螺旋
8 T412167 1 T412167 栓塞
9 T412492 1 T412492 墊圈
10 2314 H001 1 2314 H001 螺旋
10 T412379 1 T412379 螺旋
|
Piston ring and block |
|
To inspect |
|
Operation 4-6 |
|
Note: If the piston ring is worn or damaged, renew it. |
|

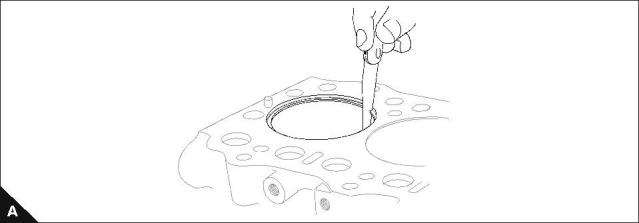

Piston ring gap |
|
Insert the rings into the cylinder at right angles to the cylinder bore and measure the gaps with a feeler gauge. If the gap is more than the service limit, renew the ring. |
|
102-05, 103-07 Gap mm (in) Standard |
|
103-10 Gap mm (in) Standard |
|
Piston ring |
|
Service limit |
|
Piston ring |
|
Service limit |
|
0,13 - 0,25 (0.0051 - 0.0100) |
|
1,0 (0.040) |
|
0,15 - 0,27 (0.0059 - 0.0106) |
|
1,0 (0.040) |
|
No. 01 ring |
|
No. 01 ring |
|
0,10 - 0,22 (0.0040 - 0.0087) |
|
1,0 (0.040) |
|
0,12 - 0,24 (0.0047 - 0.0094) |
|
1,0 (0.040) |
|
No. 02 ring |
|
No. 02 ring |
|
0,10 - 0,30 (0.0040 - 0.0120) |
|
1,0 (0.040) |
|
0,20 - 0,35 (0.0079 - 0.0138) |
|
1,0 (0.040) |
|
Oil control ring |
|
Oil control ring |
|
103-13, 103-15, 104-19, 104-22 Gap mm (in) |
|
Piston ring |
|
Standard |
|
Service limit |
|
0,20 - 0,35 (0.0079 - 0.0138) |
|
1,0 (0.040) |
|
No. 01 ring |
|
0,20 - 0,40 (0.0079 - 0.0158) |
|
1,0 (0.040) |
|
No. 02 ring |
|
0,20 - 0,40 (0.0079 - 0.0158) |
|
1,0 (0.040) |
|
Oil control ring |
|
54 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
4 |
|
100 Series |
|

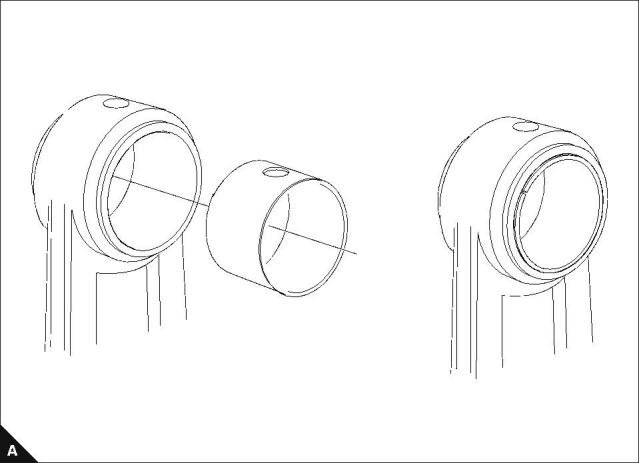

Small end bush |
|
To remove and to fit |
|
Operation 4-7 |
|
Special requirements |
|
Clearance mm (in) |
|
Engine model |
|
Standard |
|
Service limit 0,1 (0.004) 0,1 (0.004) 0,1 (0.004) |
|
102-05, 103-07 |
|
0,013 - 0,028 (0.00051 - 0.00110) 0,008 - 0,023 (0.00031 - 0.00091) 0,010 - 0,025 (0.00040 - 0.00099) |
|
103-10 |
|
103-13, 103-15, 104-19, 104-22 |
|
Calculate the clearance between the small end bush and the gudgeon pin. If the clearance exceeds the service limit, renew. |
|
Workshop Manual, TPD 1377E, issue 4 |
|
55 |
|
This document has been printed from SPI². Not for Resale |
|
4 |
|
100 Series |
|

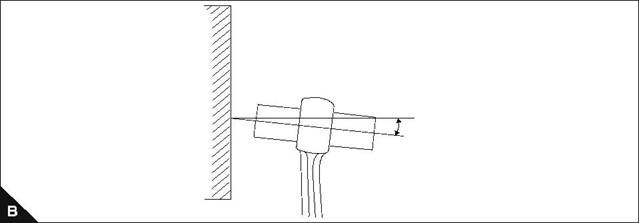

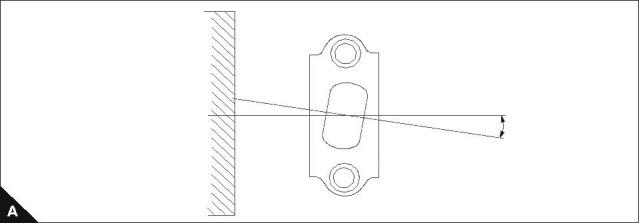

Connecting rod |
|
To inspect |
|
Operation 4-8 |
|
Special requirements |
|
Dimension mm (in) Standard |
|
Service limit |
|
Distortion for 100 (3.937) Parallel for 100 (3.937) |
|
Less than 0,08 (0.0031) |
|
0,20 (0.0079) max 0,15 (0.0059) max |
|
Less than 0,05 (0.0020) |
|
56 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
100 Series |
|
5 |
|
Crankshaft assembly |
|
5 |
|

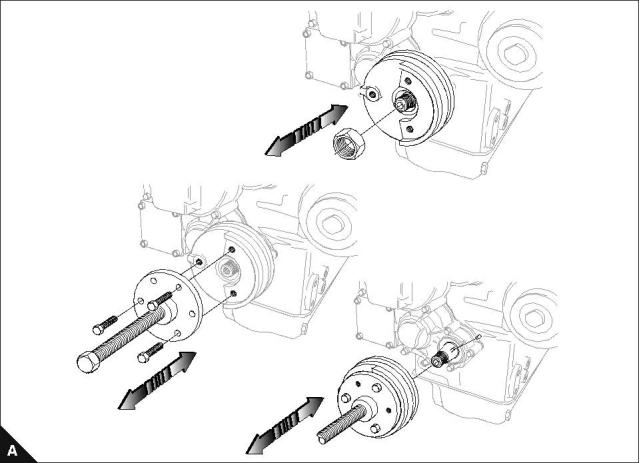

Crankshaft pulley |
|
To remove and to fit |
|
Operation 5-1 |
|
Special requirements |
|
Special tools Description |
|
Torque Nm (lbf ft) kgf m |
|
Part number |
|
102-05, 103-07 |
|
93 (69) 9,5 123 (91) 12,5 304 (224) 31 |
|
103-10 |
|
Crankshaft pulley remover |
|
21825619 |
|
103-13, 103-15, 104-19, 104-22 |
|
Note: Store the key (A1) in a safe place until assembly. |
|
Workshop Manual, TPD 1377E, issue 4 |
|
57 |
|
This document has been printed from SPI². Not for Resale |
|
5 |
|
100 Series |
|
Flywheel, backplate and oil seal |
|
To remove and to fit |
|
Operation 5-2 |
|
Special requirements |
|
POWERPART products Description |
|
Part number |
|
Silicone RTV sealing and jointing compound |
|
1861108 |
|
Flywheel setscrews : Torque Nm (lbf ft) kgf m |
|
Backplate setscrews : Torque Nm (lbf ft) kgf m |
|
102-05, 103-07 |
|
73 (54) 7,4 |
|
102-05, 103-07 |
|
15 (11) 1,5 50 (37) 5,1 15 (11) 1,5 |
|
103-10 |
|
73 (54) 7,4 73 (54) 7,4 |
|
103-10 |
|
103-13, 103-15, 104-19, 104-22 |
|
103-13, 103-15, 104-19, 104-22 |
|
Notes: |
|
To remove and fit the flywheel, see Operation 13-1. |
|
On assembly, apply Powerpart silicone RTV sealing and jointing compound to the block (around screw holes) before the backplate is fitted. |
|
103-10, 103-13 and 103-15 engines only: Remember the position of the dowel (A1). |
|
1 |
|
POWERPART silicone gasket sealant |
|
