3. Look for any leakage in the connection from the

adapter to the fuel injector (2). If leakage is visible,

make sure that the components are tightened to

the correct torque.

If leakage continues to occur, unscrew the body of

the fuel injector (2) from the nozzle nut. Inspect the

threaded surfaces for foreign particles and

damage.

If the faces are damaged, replace the fuel injector

(2).

If the faces are undamaged, clean the faces.

Repeat Steps 1 and 2. If leakage continues to

occur, replace the fuel injector.

4. Pump the pressure of the injector tester to

approximately 2030 kPa (294 psi) below the

opening pressure of fuel injector (2). Fuel should

not collect on the tip of the fuel injector (2) in a

sufficient quantity in order to drip from the tip for at

least ten seconds. A light dampness is acceptable.

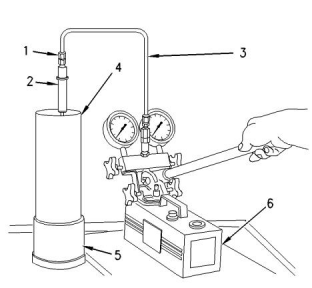

Illustration 46

g00470020

(1) Adapter

If the results of the tests are not acceptable,

replace the fuel injector (2).

(2) Fuel injector

(3) Tube Assembly

(4) Extension

(5) Fuel Collector

(6) Filter

Pressure Test

NOTICE

Do not use  dirty test fluids  when you test fuel  injec-

tors. Also, do  not test fuel injectors unless  you have

the correct  service tools.The  use  of dirty test  fluids

and  the use  of incorrect  service  tools will  result in

damage to the fuel injectors.

Ensure that you  wear eye protection  at all times

during testing. When fuel injectors are tested, test

fluids travel through the orifices of the  nozzle tip

with high  pressure.  Under this  amount of  pres-

sure, the test fluid can pierce  the skin and cause

serious injury to the operator. Always keep the tip

of the fuel injector pointed away from the operator

and into the fuel collector and extension.

Note: This procedure is a test of the opening

pressure of the fuel injector.

1. Connect the fuel injector (2) to suitable tooling that

is similar to the Illustration 46 .

The spray from the fuel injector (2) must be

directed into the extension (4) and the fuel

collector (5).

Use clean calibration fluid when the fuel injectors

are tested. The calibration fluid should be

equivalent to SAE J-967 (ISO 4113) oil.

2. Close the gauge protector valve. Close the shutoff

valve. Open the pump isolator valve. Flush the fuel

injector (2) by operating the nozzle tester. Operate

the nozzle tester for 10 to 15 strokes at a rate of

approximately sixty strokes per minute.

This document is printed from SPI². Not for RESALE




KENR9144

51

Fuel System

3. Open the gauge protector valve. Slowly increase

the pressure until the valve in the fuel injector (2)

opens. Note the highest pressure indication on the

dial indicator before the pointer moves to 0 kPa

(0 psi). This highest pressure indication is the

opening pressure of fuel injector (2). The opening

pressure occurs when the valve needle is lifted

from the nozzle seat.

1. Connect the fuel injector (2) to suitable tooling that

is similar to the Illustration 47 .

Position the fuel injector (2) so that the direction of

the fuel spray is into the extension (4) and the fuel

collector (5).

2. Close the gauge protector valve and the shutoff

valve. Open the pump isolator valve.

Refer to Specifications, “Fuel Injection Nozzles” for

the correct pressure settings. If the opening

pressure is not within the range of the setting

which is given in the table, the fuel injector (2) must

be replaced.

Test for the Nozzle Spray Pattern

Ensure that you  wear eye protection  at all times

during testing. When fuel injectors are tested, test

fluids travel through the orifices of the  nozzle tip

with high  pressure.  Under this  amount of  pres-

sure, the test fluid can pierce  the skin and cause

serious injury to the operator. Always keep the tip

of the fuel injector pointed away from the operator

and into the fuel collector and extension.

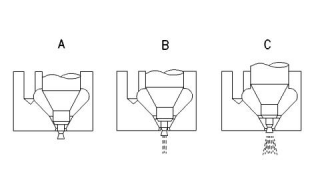

Illustration 48

g00468241

Phases of operation and spray pattern of the fuel

injector

The spray angle is 4 degrees from the vertical when

the nozzle is fully open.

(A) Closed nozzle

(B) Open nozzle

(C) Fully open nozzle

3. Quickly pump the nozzle tester and look at the

spray pattern when the fluid begins to flow through

the orifices of fuel injector (2) .

The spray flows around the tip of the nozzle. A

difference in the nozzle spray patterns indicates

that the fuel injector (2) is faulty. Refer to the

correct spray pattern in Illustration 48 .

Observe the following characteristics of the spray:

•   Drops of fuel should not be in the spray.

•   Fuel should be sprayed in the shape of a cone

around the nozzle.

•   Fuel should be sprayed evenly in a 360 degree

pattern around the nozzle.

Illustration 47

g00470020

(1) Adapter

(2) Fuel injector

(3) Tube Assembly

(4) Extension

(5) Fuel Collector

(6) Filter

Note: Be sure that the gauge protector valve is

closed before the fuel injector (2) is removed from the

nozzle tester. Closing the valve will prevent damage

to the pressure gauge.

The pressure adjustment must be correct before you

test the spray pattern.

This procedure tests for the correct spray pattern for

the fuel injectors.

This document is printed from SPI². Not for RESALE




52

KENR9144

Fuel System

i01944302

i02617170

Fuel Quality - Test

Gear Group (Front) - Time

Use the following procedure to test for problems

regarding fuel quality:

1. Determine if water and/or contaminants are

present in the fuel. Check the water separator (if

equipped). If a water separator is not present,

proceed to Step 2. Drain the water separator, if

necessary. A full fuel tank minimizes the potential

for overnight condensation.

Note: A water separator can appear to be full of fuel

when the water separator is actually full of water.

2. Determine if contaminants are present in the fuel.

Remove a sample of fuel from the bottom of the

fuel tank. Visually inspect the fuel sample for

contaminants. The color of the fuel is not

necessarily an indication of fuel quality. However,

fuel that is black, brown, and/or similar to sludge

can be an indication of the growth of bacteria or oil

contamination. In cold temperatures, cloudy fuel

indicates that the fuel may not be suitable for the

operating conditions. Refer to Operation and

Maintenance Manual, “Fuel Recommendations” for

more information.

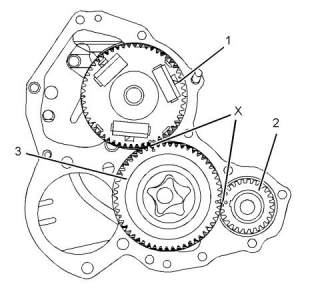

Illustration 49

g01335186

1. Align timing mark (X) on idler gear (3) with the

timing mark on crankshaft gear (2) and align timing

mark (X) on idler gear (3) with the timing mark on

camshaft gear (1).

3. If fuel quality is still suspected as a possible cause

of problems regarding engine performance,

disconnect the fuel inlet line, and temporarily

operate the engine from a separate source of fuel

that is known to be good. This will determine if the

problem is caused by fuel quality. If fuel quality is

determined to be the problem, drain the fuel

system and replace the fuel filters. Engine

performance can be affected by the following

characteristics:

i05223669

Governor - Adjust

Note: The setting of the front housing is only

necessary if the front housing is damaged or if the

front housing must be renewed.

•   Cetane number of the fuel

•   Air in the fuel

Table 3

Required Tools

Tool

Part Number

Part Description

Qty

•   Other fuel characteristics

A

21825617

Dial Indicator

1

graduated in 0.01 mm

(0.0004 inch)

i04903819

Fuel System - Prime

-

Extension that is 20 mm

(0.787 inch)long

1

B

C

27610331

27610332

Dial holder

1

1

Turn the keyswitch to the ON position for 2 minutes in

order to prime the fuel system. Turn keyswitch to OFF

position, then turn to the ON position again.

Adapter for the cylinder

block

D

E

27610333

-

Calibration spring

1

1

The engine is primed and ready to start.

Allen head screw (M4 x 20

mm x 0.70)

This document is printed from SPI². Not for RESALE




KENR9144

53

Fuel System

Record the Governor Settings

NOTICE

The engine must  be in running  condition in order  to

carry out  the governor  adjustment procedure. If  the

engine cannot be returned to a running condition con-

tact an authorized Perkins distributor

If the front housing has been removed, install the front

housing. Refer to Disassembly and Assembly,

“Housing (Front) - Install”

The setting of the low idle stop screw and the high

idle stop screw must be recorded. The settings are

recorded in order to ensure that the governor

operation is restored.

Note: Engine speed must be recorded from the

crankshaft.

1. Operate the engine until the normal operating

temperature is reached.

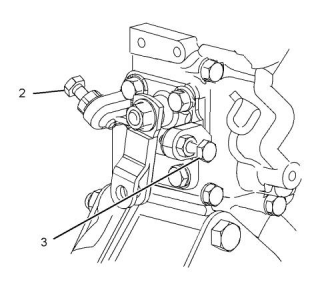

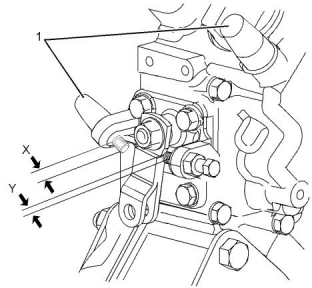

Illustration 51

g03345218

2. Operate the engine at low idle speed. Use the

electronic service tool to record the engine rpm as

“Speed B”  .

Typical example

4. Remove tamper proof caps (1).

3. Accelerate the engine to high idle. Use the

electronic service tool to record the engine rpm as

“Speed A”  .

5. Record Protrusion (X) of the high idle stop screw

(4).

6. Record Protrusion (Y) of the low idle stop screw

(5).

Note: The recorded “Speed B” will be lower than the

recorded “Speed A”  .

Removal of the Old Front Housing

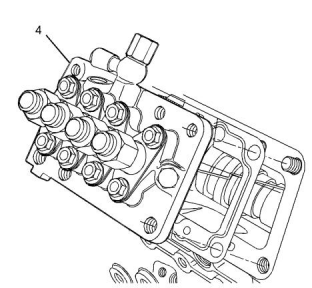

Illustration 50

g01494533

Illustration 52

g03345219

Typical example

Typical example

1. Remove fuel injection pump (4). Refer to

Disassembly and Assembly, “Fuel Injection Pump -

Remove and Install” for the correct procedure.

This document is printed from SPI². Not for RESALE




54

KENR9144

Fuel System

2. Remove the crankshaft pulley. Refer to

Disassembly and Assembly, “Crankshaft Pulley -

Remove”

Illustration 55

g03345224

Typical example

Illustration 53

g03345222

6. Remove start spring (8) and replace the start

spring with Tooling (D).

Typical example

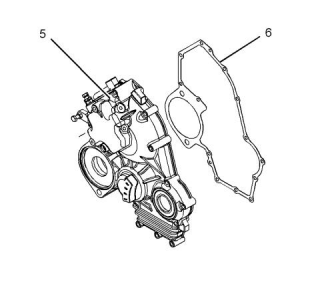

3. Remove front housing (5). Refer to Disassembly

and Assembly, “Housing (Front) - Remove” for the

correct procedure.

7. Install the front housing. Refer to Disassembly and

Assembly, “Housing (Front) - Install” for the correct

procedure.

4. Remove the gasket (6). Ensure that the face of the

Note: Do not install a gasket.

front plate is clean.

8. Install the fuel injection pump to the cylinder block.

Install the original shim. Refer to Disassembly and

Assembly, “Fuel Injection Pump - Remove and

Install” for the correct procedure.

Illustration 54

g03338638

Typical example

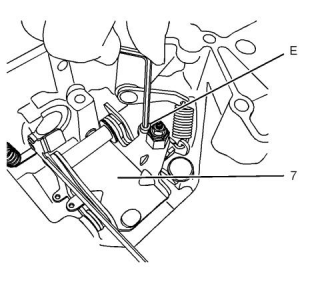

5. Install Tooling (E) to lever assembly (7). Tighten

tooling (E) to a torque of 0.4 N·m  (3.540 lb in).

This document is printed from SPI². Not for RESALE




KENR9144

55

Fuel System

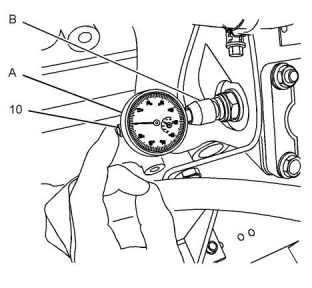

13. Push Tooling (A) into Tooling (B) for a further

2 mm (0.0787 inch). Lock Tooling (B) in order to

retain Tooling (A) in position. Set Tooling (A) to

read 2.00 ± 0.01 mm (0.0787 ± 0.0004 inch).

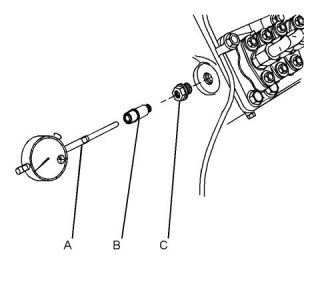

Illustration 56

g03338639

Typical example

9. Install Tooling (C) into cylinder block (9).

10. Install Tooling (B) into Tooling (C).

11. Assemble Tooling (A).

Illustration 58

g03338641

Typical example

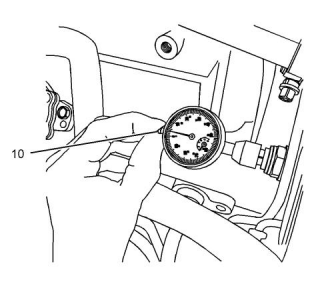

14. Push plunger (10) of Tooling (A) several times in

order to seat the rack of the fuel injection pump.

When the plunger is gently released, check that

Tooling (A) reads 2.00 ± 0.01 mm

12. Install Tooling (A) into Tooling (B) until the

extension on Tooling (A) touches the rack of the

fuel injection pump.

(0.0787 ± 0.0004 inch).

Note: If the rack of the fuel injection pump has heavy

resistance to movement, remove tooling (A). Remove

the fuel injection pump. Wash the fuel injection pump

with a suitable cleaner. Install the fuel injection pump.

Repeat steps 12, 13 and 14.

Setting the New Front Housing

Note: Do not move the position of Tooling (A), Tooling

(B), or Tooling (C) in the cylinder block.

1. Pull plunger (10) of Tooling (A) until the plunger has

reached the fully out position. Use a suitable clip to

retain the plunger in this position.

2. Remove the fuel injection pump. Refer to

Disassembly and Assembly, “Fuel Injection Pump -

Remove and Install” for the correct procedure.

3. Remove the original front housing. Refer to

Disassembly and Assembly, “Housing (Front) -

Remove” for the correct procedure.

Illustration 57

g03338640

Typical example

4. Disassemble the original front housing. Refer to

Disassembly and Assembly, “Housing (Front) -

Disassemble” for the correct procedure.

This document is printed from SPI². Not for RESALE




56

KENR9144

Fuel System

5. Assemble the replacement front housing with the

parts that were removed from the original front

housing. Install a new fuel screw and a new

locknut. Refer to Disassembly and Assembly,

“Housing (Front) - Assemble” for the correct

procedure.

6. Remove Tooling (E) from the original front housing.

Install Tooling (E) to the lever assembly of the

replacement front housing. Tighten Tooling (E) to a

torque of 0.4 N·m (3.5 lb in).

7. Install the replacement front housing. Refer to

Disassembly and Assembly, “Housing (Front) -

Install” for the correct procedure.

Note: Do not install a gasket.

8. Install the fuel injection pump to the cylinder block.

Install the original shim. Refer to Disassembly and

Assembly, “Fuel Injection Pump - Remove and

Install” for the correct procedure.

Illustration 60

g03338643

Typical example

9. Remove the clip from plunger (10) of Tooling (A).

1. Release the plunger on Tooling (A). Do not move

the position of Tooling (A), Tooling (B), or Tooling

(C) in the cylinder block.

Setting the Fuel Screw

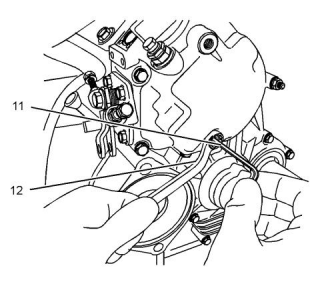

2. Use a ring spanner (Box wrench) (12) to retain the

locknut of the fuel screw in position.

3. Use an allen wrench (11) to rotate the allen head

screw. Observe the reading on the dial indicator.

Adjust the allen head screw until the indicator

reads 2.00 ± 0.01 mm (0.0787 ± 0.0004 inch).

4. Tighten the locknut to a torque of 6 N·m  (55 lb in)

in order to retain the allen head screw in position.

The fuel screw is now set.

5. Ensure that the reading of Tooling (A) is

2.00 ± 0.01 mm (0.0787 ± 0.0004 inch).

Final Installationof the New Front

Housing

Illustration 59

g03338642

Typical example

This document is printed from SPI². Not for RESALE




KENR9144

57

Fuel System

Illustration 61

g01495413

Typical example

Illustration 63

g03345222

Typical example

1. Remove Tooling (A) and Tooling (B).

2. Remove Tooling (C).

6. Install a new gasket (6). Ensure that the gasket is

clean and free from damage.

3. Remove the fuel injection pump. Refer to

Disassembly and Assembly, “Fuel Injection Pump -

Remove and Install” for the correct procedure.

7. Install the replacement front housing (5) Refer to

Disassembly and Assembly, “Housing (Front) -

Install” for the correct procedure.

4. Remove the front housing. Refer to Disassembly

and Assembly, “Housing (Front) - Remove” for the

correct procedure.

Illustration 64

g01494533

Typical example

Illustration 62

g03338638

Typical example

5. Remove Tooling (E) from lever assembly (7).

This document is printed from SPI². Not for RESALE




58

KENR9144

Fuel System

Illustration 65

g03345218

Illustration 66

g03338646

Typical example

Typical example

8. Set the Protrusion (X) of the high idle stop screw

(2) to the same dimensions as the stop screws on

the original front housing.

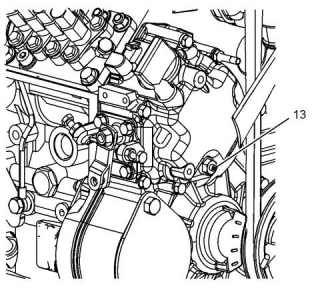

15. Install tamper proof caps (1) to the high idle screw

(2). Install the tamper proof cap (not shown) to fuel

screw (13).

9. Set the Protrusion (Y) of the low idle stop screw (3)

to the same dimensions as the stop screws on the

original front housing.

Note: Care should be taken when the tamper proof

cap is installed to the fuel screw .

10. Install the fuel injection pump to the cylinder

block. Refer to Disassembly and Assembly, “Fuel

Injection Pump - Remove and Install” for the

correct procedure.

11. Start the engine and allow the engine to reach

normal operating temperature.

12. Run the engine at low idle speed. Use the

electronic service tool to check if the engine rpm is

the same as “Speed B”  .

13. Run the engine at high idle speed. Use the

electronic service tool to check if the engine rpm is

the same as “Speed A”  .

Note: The recorded “Speed A” will be higher than

the recorded “Speed B”  .

Note: If “Speed A”  does not match the high idle

speed or “Speed B”  does not match the low idle

speed, contact Global Technical Support.

14. Ensure correct operation of the engine.

This document is printed from SPI². Not for RESALE




KENR9144

59

Air Inlet and Exhaust System

Air Inlet and Exhaust

System

5. If the breather tube is made of plastic, use low

pressure air to check for a blockage in the breather

tube. If a blockage is inside of the connector, the

cover assembly must be replaced. A broken valve

mechanism cover will result if you try to remove the

connection.

i02251899

i05223369

Air Inlet and Exhaust System -

Inspect

Diesel Particulate Filter - Clean

A general visual inspection should be made to the air

inlet and exhaust system. Make sure that there are no

signs of leaks in the system.

Wear goggles, gloves,  protective clothing, and a

National  Institute  for  Occupational   Safety  and

Health (NIOSH) approved P95 or N95 half-face res-

pirator when  handling a  used  Diesel Particulate

Filter or Catalytic Converter Muffler. Failure to do

so could result in personal injury.

There will be a reduction in the performance of the

engine if there is a restriction in the air inlet system or

the exhaust system.

Hot  engine components  can  cause  injury  from

burns. Before performing maintenance on the en-

gine,  allow  the engine  and  the  components  to

cool.

The muffler, catalytic converter/muffler, and diesel

particulate filter will become extremely hot during

engine operation. A hot muffler, catalytic convert-

er/muffler and  diesel particulate  filter can cause

serious burns.  Allow  adequate cooling  time be-

fore working on or near the muffler, catalytic con-

verter/muffler and diesel particulate filter.

Making contact with a  running engine can cause

burns from  hot parts and  can cause  injury from

rotating parts.

Diesel Particulate Filters (DPF) require periodic

removal of ash that accumulates from engine oil.

When working on an engine that is running, avoid

contact with hot parts and rotating parts.

Cleaning Procedure

Follow this cleaning procedure for removal of the ash

from a DPF. Refer to Operation and Maintenance

Manual for the intervals of service hours for cleaning

of the DPF.

1. Inspect the engine air cleaner inlet and ducting in

order to ensure that the passageway is not blocked

or collapsed.

2. Inspect the engine air cleaner element. Replace a

dirty engine air cleaner element with a clean

engine air cleaner element.

1. Connect the engine to the electronic service tool

before the DPF is removed from the engine. Once

the engine is connected to the electronic service

tool, then perform an ash service test. This test is a

manual regeneration. The test could take an hour.

3. Check for dirt tracks on the clean side of the engine

air cleaner element. If dirt tracks are observed,

contaminants are flowing past the engine air

cleaner element and/or the seal for the engine air

cleaner element.

Note: Allow the DPF to cool until the DPF can be

safely removed.

2. Remove the DPF from the Clean Emissions

Module (CEM). Refer to Disassembly and

Assembly for the correct procedure.

4. For engines with plastic valve mechanism covers, if

you experience excessive crankcase pressure,

remove the valve mechanism cover and check the

end of the shroud for a skin of plastic. If the end of

the shroud has a skin of plastic, remove the skin of

plastic. Ensure that all of the debris is removed.

Note: Identify all engine fault codes if black soot is

discovered on the outlet side of the center section on

the DPF. Refer to Troubleshooting for problem

identification and the disposition of the DPF.

This document is printed from SPI². Not for RESALE




60

KENR9144

Air Inlet and Exhaust System

3. The DPF must be cleaned. Contact your nearest

Perkins  distributor for assistance.

When the boost pressure increases against the

diaphragm in the canister, the wastegate will open.

The rpm of the turbocharger becomes limited. The

rpm is limited because a portion of the exhaust gases

bypass the turbine wheel of the turbocharger.

4. Reinstall the DPF onto the Clean Emissions

Module (CEM). Refer to Disassembly and

Assembly for the correct procedure.

The following levels of boost pressure indicate a

problem with the wastegate:

Reset the Engine Ash Model

•   Too high in full load conditions

The engine ash model must be reset whenever the

filter is cleaned or replaced. Reseting the ash model

places the DPF volume back to the  “Clean State”  .

The resetting will allow the regeneration of the DPF to

function properly.

•   Too low in all low boost conditions

The boost pressure controls the maximum rpm of the

turbocharger, because the boost pressure controls

the position of the wastegate. The following factors

also affect the maximum rpm of the turbocharger:

1. Use the electronic service tool to access the

configuration parameters. Select “Service”   from

the top menu and highlight the “DPF Soot Load

Reset”  from the menu in the service tool. The

select the “Reset”   option.

•   The engine rating

•   The horsepower demand on the engine

•   The high idle rpm

2. The electronic service tool will display  “Reset was

Successful”  when the calibration has been

completed.

•   Inlet air restriction

•   Exhaust system restriction

i03011728

Test the Wastegate for Proper Operation

Wastegate - Test

Table 4

Tools Needed

Part Name

Part

Number

Qty

21825617

Dial Gauge

1

Hot  engine components  can  cause  injury  from

burns. Before performing maintenance on the en-

gine,  allow  the engine  and  the  components  to

cool.

1. Remove the heat shield from the turbocharger.

Remove the guard for the wastegate.

2. Remove the boost line from the wastegate.

Connect an air supply to the wastegate that can be

adjusted accurately.

Note: The turbocharger is a nonserviceable item. The

pressure for the wastegate can be checked but not

adjusted.

3. Fasten a dial gauge to the turbocharger so that the

end of the actuator rod is in contact with the

plunger of the dial gauge. This will measure axial

movement of the actuator rod.

Before the wastegate is tested, be sure that the inlet

air restriction is within the specifications for your

engine. Be sure that the exhaust system restriction is

within the specifications for your engine. Refer to

Testing and Adjusting, “Air Inlet and Exhaust System -

Inspect”.

4. Slowly apply air pressure to the wastegate so that

the actuator rod moves 1.0 mm  (0.039 inch). The

air pressure should be within 52 kPa  (7.5 psi).

Ensure that the dial gauge returns to zero when

the air pressure is released. Repeat the test

several times. This will ensure that an accurate

reading is obtained.

Inspection of the Wastegate

The wastegate controls the amount of exhaust gas

that is allowed to bypass the turbine side of the

turbocharger. This valve then controls the rpm of the

turbocharger.

When the engine operates in conditions of low boost,

a spring presses against a diaphragm in the canister.

The actuating rod will move and the wastegate will

close. Then, the turbocharger can operate at

maximum performance.

5. Consult your nearest approved Perkins  dealer or

your nearest approved Perkins distributor if the

operation of the wastegate is not correct.

This document is printed from SPI². Not for RESALE




KENR9144

61

Air Inlet and Exhaust System

i05191124

g.

Observe the exhaust gas cooler (NRS) for air

bubbles that indicate a leak. If air bubbles are

seen within 30 seconds, this indicates a leak

with the exhaust gas cooler (NRS). Note the

location or the origin of the leak. Record this

information.

Exhaust Cooler (NRS) - Test

(If Equipped)

Air Under Water Leak Test Procedure.

h.

i.

If no bubbles are detected after 30 seconds,

the exhaust gas cooler (NRS) is reusable.

Remove the exhaust gas cooler (NRS) from

the water. If the exhaust gas cooler (NRS)

does not leak, the problem may be elsewhere

in the cooling system or the engine. Refer the

service manual in order to check for leakage. If

the exhaust gas cooler (NRS) does leak, the

exhaust gas cooler (NRS) should be replaced.

2. Follow steps 2.a. to 2.i. in order to test the gas side

of the exhaust gas cooler (NRS).

a.

b.

c.

Plug the gas inlet (5) of the exhaust gas cooler

(NRS) (2).

Plug the gas outlet port (1) with tube and

pressure regulator assembly.

Make sure that the air pressure regulator is

closed and connect compressed air to the

pressure regulator.

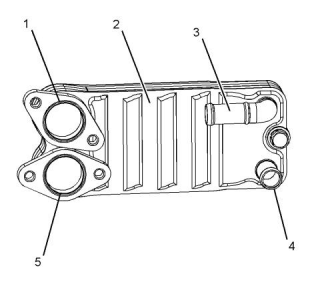

Illustration 67

g03326632

Typical example

1. Follow steps 1.a. to 1.i. in order to test the coolant

side of the exhaust gas cooler (NRS).

d.

e.

Use a suitable pressure gauge in order to

apply an air pressure of 300 kPa  (44 psi) to

the exhaust gas cooler (NRS).

a.

b.

c.

Plug the coolant inlet (3) of the exhaust gas

cooler (NRS) (2).

While the exhaust gas cooler (NRS) is still

pressurized, submerge the cooler in water that

is at ambient temperature.

Plug the coolant outlet port (4) with tube and

pressure regulator assembly.

f.

Allow the exhaust gas cooler (NRS) to settle in

order for the air that is trapped to escape.

Make sure that the air pressure regulator is

closed and connect compressed air to the

pressure regulator.

g.

Observe the exhaust gas cooler (NRS) for air

bubbles that indicate a leak. If air bubbles are

seen within 30 seconds, this indicates a leak

with the exhaust gas cooler (NRS). Note the

location or the origin of the leak. Record this

information.

d.

e.

f.

Use a suitable pressure gauge in order to

apply an air pressure of 300 kPa  (44 psi) to

the exhaust gas cooler (NRS).

While the exhaust gas cooler (NRS) is still

pressurized, submerge the cooler in water that

is at ambient temperature.

h.

i.

If no bubbles are detected after 30 seconds,

the exhaust gas cooler (NRS) is reusable.

Allow the exhaust gas cooler (NRS) to settle in

order for the air that is trapped to escape.

Remove the exhaust gas cooler (NRS) from

the water. If the exhaust gas cooler (NRS)

does not leak, the problem may be elsewhere

in the cooling system or the engine. Refer the

service manual in order to check for leakage. If

the exhaust gas cooler (NRS) does leak, the

exhaust gas cooler (NRS) should be replaced.

This document is printed from SPI². Not for RESALE




62

KENR9144

Air Inlet and Exhaust System

i02184786

Note: The cylinder compression test should not be

the only test for determining the condition of an

engine.

Compression - Test

Table 5

Standard at

Assembly

Repair Limit

Compression

Compression Pres-

2940 kPa (426 psi)    2450 kPa  (355 psi)

The following conditions can affect the results of the

cylinder compression test:

sure(1)

(1)

The compression pressure is taken at 250 rpm.

•   The battery is in good condition.

•   The battery is fully charged.

6. Repair procedures must be taken if the

compression is lower than the repair limit.

•   The starter motor operates correctly.

•   The valve lash is set correctly.

•   The compression gauge is accurate.

NOTICE

Be sure to measure the compression on all of the cyl-

inders. If all  of the cylinders are  not checked an  im-

proper   diagnosis   may   result.   The   compression

pressure will vary with the change in engine rpm. It is

necessary to keep the engine rpm constant for all cyl-

inders when you are taking a compression reading.

i04904667

Engine Valve Lash - Inspect/

Adjust

To prevent possible injury, do  not use the starter

to turn the flywheel.

Hot engine  components can cause  burns. Allow

additional time for the engine to cool before meas-

uring valve clearance.

Illustration 68

g00564993

Valve Lash Setting

The valve lash setting is for a cold engine.

Valve lash setting

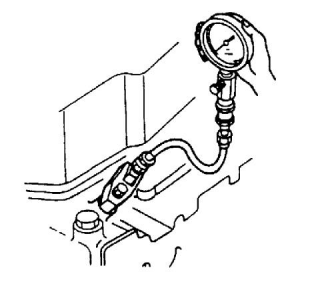

Checking compression of the engine

1. Remove the fuel injector from the cylinder in order

to measure the compression for that cylinder.

2. Connect a suitable compression gauge to the

cylinder.

Inlet valve.... 0.2 ± 0.05 mm (0.008 ± 0.0020 inch)

Exhaust valve.................................0.2 ± 0.05 mm

(0.008 ± 0.0020 inch)

3. Disconnect the fuel shutoff solenoid.

Valve Lash Adjustment

4. Operate the starter motor and record the pressure

on the compression gauge.

If the valve lash requires adjustment several times in

a short time period, excessive wear exists in a

different part of the engine. Repair the problem in

order to prevent more damage to the engine.

5. Repeat for each cylinder.

Note: Compression tests should only be used to

compare pressures between cylinders of an engine. If

one or more cylinders vary more than 350 kPa

(51 psi) then those cylinders may be damaged.

Not enough valve lash can be the cause of rapid wear

of the camshaft and valve lifters. Not enough valve

lash can indicate that the seats for the valves are

worn.

Valves become worn due to the following causes:

This document is printed from SPI². Not for RESALE




KENR9144

63

Air Inlet and Exhaust System

•   Incorrect operation of fuel injectors

•   Excessive dirt and oil are present on the filters for

the inlet air.

Accidental  engine  starting can  cause  injury  or

death to personnel.

•   Incorrect fuel settings on the fuel injection pump.

To  prevent  accidental  engine starting,  turn  the

ignition switch to the OFF position and place a do

not operate tag at the ignition switch location.

•   The load capacity of the engine is frequently

exceeded.

Too much valve lash can cause broken valve stems,

springs, and spring retainers. Too much valve lash

can be an indication of the following problems:

Valve Lash Adjustment for Three Cylinder

Engines

•   Worn camshaft and valve lifters

•   Worn rocker arms

NOTICE

Ensure that  this valve lash  adjustment procedure is

followed for the three cylinder engine. Do not use the

traditional opposing cylinders  method. Failure to  fol-

low the  correct procedure may  result in  serious en-

gine damage.

•   Bent pushrods

•   Broken socket on the upper end of a pushrod

•   Loose adjustment screw for the valve lash

If the camshaft and valve lifters show rapid wear, look

for fuel in the lubrication oil or dirty lubrication oil as a

possible cause.

Firing order for the three cylinder engine ...........1, 2, 3

The valve lash is measured between the top of the

valve stem and the rocker arm lever.

Note: No. 1 cylinder is at the front of the engine.

Remove the valve mechanism cover and perform the

following procedures in order to adjust the valve lash:

Note: When these procedures are performed, the

front housing must be installed.

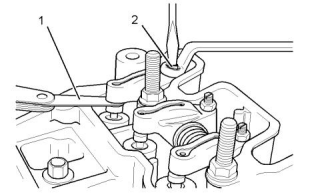

Illustration 69

g01107989

Setting the valve lash

Illustration 70

g03340757

(1) Feeler gauge

(2) Adjustment screw

A typical example of the crankshaft pulley and front

housing

This document is printed from SPI². Not for RESALE




64

KENR9144

Air Inlet and Exhaust System

If adjustment is necessary, refer to steps 2.a., 2.b.,

and 2.c..

4. Rotate the crankshaft in a clockwise direction that

is viewed from the front of the engine. Rotate the

crankshaft clockwise until the piston of No. 3

cylinder is at the top center position on the

compression stroke. Ensure that the “Top” mark

(3) on the timing case aligns with  “Dot” (6) on the

crankshaft pulley. Check the valve lash of the inlet

valve for No. 3 cylinder and the exhaust valve for

No. 3 cylinder.

If adjustment is necessary, refer to steps 2.a., 2.b.,

and 2.c..

Valve Lash Adjustment for Four Cylinder

Engines

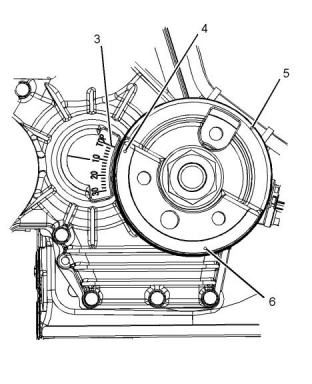

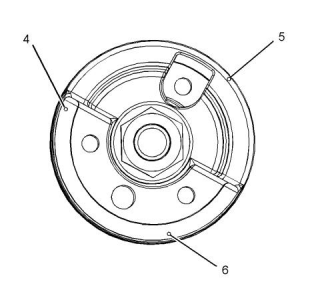

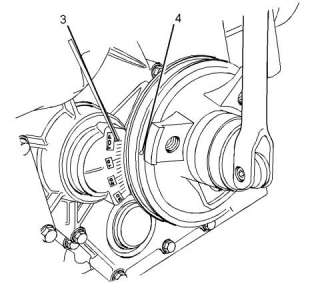

Illustration 71

g03340758

Top center markings for the Crankshaft pulley

1. Rotate the crankshaft clockwise until the piston of

No. 1 cylinder is at the top center position on the

compression stroke. Refer to Systems Operation,

Testing and Adjusting, “Finding Top Center

Position for No. 1 Piston” for the correct procedure.

Ensure that the “Top”  mark (3) on the timing case

aligns with “Dot” (4) on the crankshaft pulley.

2. Check the valve lash of the inlet valve of No. 1

cylinder and the exhaust valve of No. 1 cylinder. If

necessary, make adjustment.

a.

Loosen the valve adjustment screw locknut

that is on adjustment screw (2).

b.

Place the appropriate feeler gauge (1)

between the rocker arm and the valve. Turn

adjustment screw (2) while the valve

adjustment screw locknut is being held from

turning. Adjust the valve lash until the correct

specification is achieved.

Illustration 72

g03340755

A typical example of the crankshaft pulley and front

housing

c.

After each adjustment, tighten the valve

adjustment screw locknut while adjustment

screw (2) is being held from turning.

3. Rotate the crankshaft in a clockwise direction that

is viewed from the front of the engine. Rotate the

crankshaft clockwise until the piston of No. 2

cylinder is at the top center position on the

compression stroke. Ensure that the “Top” mark

(3) on the timing case aligns with  “Dot” (5) on the

crankshaft pulley. Check the valve lash of the inlet

valve for No. 2 cylinder and the exhaust valve for

No. 2 cylinder.

This document is printed from SPI². Not for RESALE




KENR9144

65

Air Inlet and Exhaust System

2. Rotate the crankshaft in a clockwise direction 360°.

When the inlet valve of the No. 1 cylinder has

started to open and the exhaust valve of the No. 1

cylinder has not closed, ensure that the  “Top”

mark (3) on the timing case aligns with  “Single

dot” (4) on the crankshaft pulley. Check the valve

lash of the exhaust valve of the No. 2 cylinder.

Check the valve lash of the inlet valve of the No. 3

cylinder. Check the valve lash of the inlet valve and

the exhaust valve of the No. 4 cylinder. If

necessary, make an adjustment.

If adjustment is necessary, refer to Steps 1.a., 1.b.,

and 1.c. above.

i02193792

Valve Depth - Inspect

Table 6

Illustration 73

g03340756

Top center markings for the Crankshaft pulley

Required Tools

Part Number

21825617

21825496

Part Description

Dial gauge

Qty

1

1. Rotate the crankshaft in a clockwise direction that

is viewed from the front of the engine. When the

inlet valve of the No. 4 cylinder has started to open

and the exhaust valve of the No. 4 cylinder has not

closed, ensure that the “Top”  mark (3) on the

timing case aligns with “Single dot” (4) on the

crankshaft pulley. Check the valve lash of the inlet

valve and the exhaust valve of the No. 1 cylinder.

Check the valve lash of the inlet valve of the No. 2

cylinder. Check the valve lash of the exhaust valve

of the No. 3 cylinder. If necessary, make an

adjustment.

Dial gauge holder

1

Note: The “Single dot” (4) on the crankshaft pulley is

the reference point for the top center position of No. 1

cylinder.

a.

Loosen the valve adjustment screw locknut

that is on adjustment screw (2).

b.

Place the appropriate feeler gauge (1)

between the rocker arm and the valve. Turn

adjustment screw (2) while the valve

adjustment screw locknut is being held from

turning. Adjust the valve lash until the correct

specification is achieved.

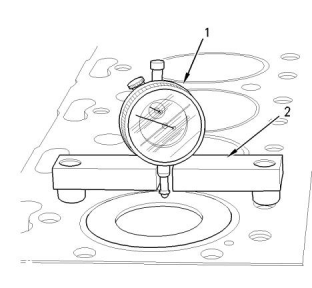

Illustration 74

g00953530

(1) Dial gauge

(2) Dial gauge holder

c.

After each adjustment, tighten the valve

adjustment screw locknut while adjustment

screw (2) is being held from turning.

1. Use the dial gauge (1) with the dial gauge holder

(2) to check the depths of the inlet valves and the

exhaust valves below the face of the cylinder head.

Use the cylinder head face (3) to zero the dial

gauge (1).

This document is printed from SPI². Not for RESALE




66

KENR9144

Air Inlet and Exhaust System

2. Position the dial gauge holder (2) and the dial

gauge (1) in order to measure the valve depth.

Measure the depth of the inlet valve and the

exhaust valve before the valve springs are

removed.

4. Move the valve in a radial direction away from the

dial indicator. Make sure that the valve moves

away from the dial indicator as far as possible.

Position the contact point of the dial indicator on

the edge of the valve head. Set the position of the

needle of the dial indicator to zero.

Refer to Specifications, “Cylinder Head Valves” for

the minimum, the maximum, and the service wear

limits for the valve depth below the cylinder head

face.

5. Move the valve in a radial direction toward the dial

indicator as far as possible. Note the distance of

movement which is indicated on the dial indicator.

If the distance is greater than the maximum

clearance of the valve in the valve guide, replace

the valve guide. Refer to Specifications, “Cylinder

Head Valves” for the maximum clearance of the

valve in the valve guide.

If the valve depth below the cylinder head face

exceeds the service limit, use a new valve to check

the valve depth. If the valve depth still exceeds the

service limit, renew the cylinder head or renew the

valve seat inserts (if equipped). If the valve depth

is within the service limit, renew the valves.

3. Inspect the valves for cracks and other damage.

Check the valve stems for wear. Check that the

valve springs are the correct length under the test

force. Refer to Specifications, “Cylinder Head

Valves” for the dimensions and tolerances of the

valves and valve springs.

i01962876

Valve Guide - Inspect

Perform this test in order to determine if a valve guide

should be replaced.

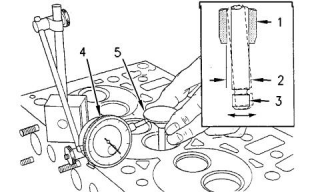

Illustration 75

g00314806

(1) Valve guide

(2) Radial movement of the valve in the valve guide

(3) Valve stem

(4) Dial indicator

(5) Valve head

1. Place a new valve in the valve guide.

2. Place the dial indicator with the magnetic base on

the face of the cylinder head.

3. Lift the edge of the valve head to a distance of

15.0 mm (0.60 inch).

This document is printed from SPI². Not for RESALE




KENR9144

67

Lubrication System

LubricationSystem

Perform the following procedures in order to inspect

the engine oil pump. Refer to Specifications, “Engine

Oil Pump”.

i02193793

Engine Oil Pressure - Test

An oil pressure gauge that has a defect can indicate

low oil pressure.

Use a suitable gauge that measures the oil pressure

in the engine.

1. Ensure that the engine is filled to the correct oil

level.

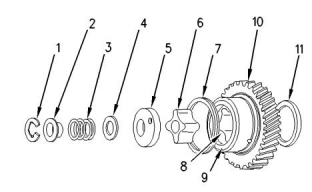

Illustration 76

g00458938

2. Connect the gauge to a pressure tap location for

Idler gear and components of the engine oil pump

engine oil.

(1) C-clip

(2) Collar

(3) Spring

3. Operate the engine. Allow the engine to obtain

(4) Shim

normal operating temperature.

(5) Oil pump cover

(6) Inner rotor

(7) Spring

(8) Outer rotor

(9) Bushing

(10) Idler gear

(11) Thrust washer

4. Keep the oil temperature constant with the engine

at the rated rpm. Read the pressure gauge.

5. Refer to Table 7 in order to determine if the engine

oil pressure is in tolerance.

Table 7

1. Remove the front housing. Remove C-clip (1).

Oil Pressure(1)

Note: If the front housing is removed, do not turn the

crankshaft.

196 to 441 kPa

Oil Pressure at high idle

(28.4 to 64 psi)

2. Disassemble the engine oil pump. Refer to

Disassembly and Assembly, “Engine Oil Pump -

Remove” for additional information. Do not remove

bushing (9) from idler gear (10) unless damage is

observed.

Oil Pressure at low idle

49 kPa (7.1 psi) or more

(1)

The oil temperature must be 80° to 110°C  (176° to 230°F).

Troubleshoot the cause of the problem and correct

the problem if the results of the test do not fall within

the pressure range in Table 7 . Engine failure or a

reduction in engine life can be the result if engine

operation is continued with oil pressure outside this

range.

3. Clean all of the parts and inspect the parts for

cracks in the metal or other damage. Look for wear

on the components. Ensure that bushing (9) is not

loose in idler gear (10).

Note: A record of engine oil pressure at regular

intervals can be used as an indication of possible

problems of the engine. A record of engine oil

pressure at regular intervals can also be used as an

indication of possible damage to the engine. The

engine should be inspected and the problem should

be corrected if there is a sudden increase or a sudden

decrease of 70 kPa (10 psi) in oil pressure.

i02617860

Engine Oil Pump - Inspect

If any part of the engine oil pump is worn enough in

order to affect the performance of the engine oil

pump, the engine oil pump must be replaced.

This document is printed from SPI². Not for RESALE




68

KENR9144

Lubrication System

The distance between the faces is adjusted with

shims (4). The thicknesses of the shims are given

in Specifications, “Engine Oil Pump”.

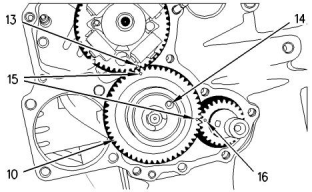

Illustration 79

g00826185

7. Install the components of the engine oil pump and

the front housing on the cylinder block. Make sure

that the two dowels align with the bushing, the

outer rotor, and the holes in the idler gear.

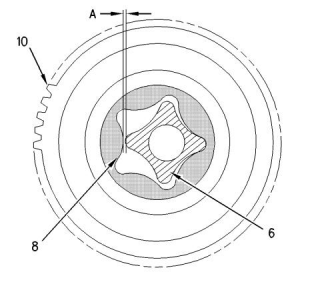

Illustration 77

g00459701

Clearance between the inner rotor and the outer rotor

4. Install the idler gear and the inner rotor on the

shaft. Measure clearance (A) between inner rotor

(6) and outer rotor (8).

Align the timing mark (15) on idler gear (10) with

the timing mark on crankshaft gear (16) when you

install the idler gear on the oil pump shaft. Also,

align the other timing mark (15) on idler gear (10)

with the timing mark on the camshaft gear (13).

The hole (14) in oil pump cover (5) should align

with the locating pin in the front housing.

Refer to Specifications, “Engine Oil Pump”.

Note: When the front housing is not installed on the

engine, do not rotate the crankshaft.

i01126690

Excessive Bearing Wear -

Inspect

When some components of the engine show bearing

wear in a short time, the cause can be a restriction in

an oil passage.

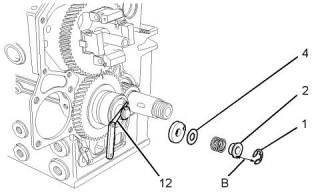

Illustration 78

g01290817

Face of the cover for the oil pump above the face of

the idler gear

An engine oil pressure indicator may show that there

is enough oil pressure, but a component is worn due

to a lack of lubrication. In such a case, look at the

passage for the oil supply to the component. A

restriction in an oil supply passage will not allow

enough lubrication to reach a component. This will

result in early wear.

(1) C-clip

(2) Collar

(4) Shim

(12) Feeler gauge

5. Use feeler gauge (12) to measure the distance

between C-clip (1) and collar (2).

6. When the components of the engine oil pump are

installed on the front housing, measurement (B)

between C-clip (1) and collar (2) must be between

0.10 to 0.15 mm (0.004 to 0.006 inch)for new

components. Dimension B must be not more than

0.20 mm (0.008 inch) for used parts.

This document is printed from SPI². Not for RESALE




KENR9144

69

Lubrication System

i03993149

Excessive Engine Oil

Consumption - Inspect

Engine Oil Leaks on the Outside of

the Engine

Check for leakage at the seals at each end of the

crankshaft. Look for leakage at the gasket for the

engine oil pan and all lubrication system connections.

Look for any engine oil that may be leaking from the

crankcase breather. This can be caused by

combustion gas leakage around the pistons. A dirty

crankcase breather will cause high pressure in the

crankcase. A dirty crankcase breather will cause the

gaskets and the seals to leak.

Engine Oil Leaks into the

Combustion Area of the Cylinders

Engine oil that is leaking into the combustion area of

the cylinders can be the cause of blue smoke. There

are several possible ways for engine oil to leak into

the combustion area of the cylinders:

•   Leaks between worn valve guides and valve stems

•   Worn components or damaged components

(pistons, piston rings, or dirty return holes for the

engine oil)

•   Incorrect installation of the compression ring and/

or the intermediate ring

•   Leaks past the seal rings in the turbocharger shaft

•   Overfilling of the crankcase

•   Wrong oil level gauge or guide tube

•   Sustained operation at light loads

Excessive consumption of engine oil can also result if

engine oil with the wrong viscosity is used. Engine oil

with a thin viscosity can be caused by increased

engine temperature.

This document is printed from SPI². Not for RESALE




70

KENR9144

Cooling System

Cooling System

b.

Check for debris or damage between the fins

of the radiator core. Debris between the fins of

the radiator core restricts air flow through the

radiator core. Refer to Testing and Adjusting,

“Cooling System - Inspect”.

i02193795

Cooling System - Check

(Overheating)

6. Check the filler cap. A pressure drop in the cooling

system can cause the boiling point to be lower.

This can cause the cooling system to boil. Refer to

Testing and Adjusting, “Cooling System - Test”.

Above normal coolant temperatures can be caused

by many conditions. Use the following procedure to

determine the cause of above normal coolant

temperatures:

7. Check the fan and/or the fan shroud. The fan

shroud must be the proper size and the fan shroud

must be positioned correctly.

1. Check the coolant level in the cooling system. If the

coolant level is too low, air will get into the cooling

system. Air in the cooling system will cause a

reduction in coolant flow and bubbles in the

coolant. Air bubbles will keep the coolant away

from the engine parts, which will prevent the

transfer of heat to the coolant. Low coolant level is

caused by leaks or incorrectly filling the expansion

tank.

8. Check for loose drive belts.

a.

A loose fan drive belt will cause a reduction in

the air flow across the radiator. Check the fan

drive belt for proper belt tension. Adjust the

tension of the fan drive belt, if necessary. Refer

to the Testing and Adjusting Section, “Belt

Tension Chart”.

b.

A loose water pump drive belt will cause a

reduction in coolant flow through the radiator.

Check the water pump drive belt for proper belt

tension. Adjust the water pump drive belt's

tension, if necessary. Refer to the Testing and

Adjusting Section, “Belt Tension Chart”.

2. If contamination of the coolant is suspected, refer

to Operation and Maintenance, “Maintenance

Section”for the correct specification of coolant.

3. Check for air in the cooling system. Air can enter

the cooling system in different ways. The most

common causes of air in the cooling system are

not filling the cooling system correctly and

combustion gas leakage into the cooling system.

Combustion gas can get into the system through

inside cracks, a damaged cylinder head, or a

damaged cylinder head gasket. Air in the cooling

system causes a reduction in coolant flow and

bubbles in the coolant. Air bubbles keep the

coolant away from the engine parts, which

prevents the transfer of heat to the coolant.

9. Check the cooling system hoses and clamps.

Damaged hoses with leaks can normally be seen.

Hoses that have no visual leaks can soften during

operation. The soft areas of the hose can become

kinked or crushed during operation. These areas of

the hose can cause a restriction in the coolant flow.

Hoses become soft and/or get cracks after a

period of time. The inside of a hose can

deteriorate, and the loose particles of the hose can

cause a restriction of the coolant flow.

10. Check for a restriction in the air inlet system. A

restriction of the air that is coming into the engine

can cause high cylinder temperatures. High

cylinder temperatures require higher than normal

temperatures in the cooling system.

4. Check the sending unit. In some conditions, the

temperature sensor in the engine sends signals to

a sending unit. The sending unit converts these

signals to an electrical impulse which is used by a

mounted gauge. If the sending unit malfunctions,

the gauge can show an incorrect reading. Also if

the electric wire breaks or if the electric wire shorts

out, the gauge can show an incorrect reading.

11. Check for a restriction in the exhaust system. A

restriction of the air that is coming out of the engine

can cause high cylinder temperatures.

5. Check the radiator.

a.

Make a visual inspection of the exhaust

system.

a.

Check the radiator for a restriction to coolant

flow. Check the radiator for debris, dirt, or

deposits on the inside of the core. Debris, dirt,

or deposits will restrict the flow of coolant

through the radiator.

b.

Check for damage to exhaust piping. Check

for damage to the exhaust elbow. If no damage

is found, check the exhaust system for a

restriction.

This document is printed from SPI². Not for RESALE




KENR9144

71

Cooling System

12. Check the water temperature regulator. A water

temperature regulator that does not open, or a

water temperature regulator that only opens part of

the way can cause overheating. Refer to Testing

and Adjusting, “Water Temperature Regulator -

Test”.

Note: A small amount of coolant leakage across the

surface of the water pump seals is normal. This

leakage is required in order to provide lubrication for

this type of seal. A hole is provided in the water pump

housing in order to allow this coolant/seal lubricant to

drain from the pump housing. Intermittent leakage of

small amounts of coolant from this hole is not an

indication of water pump seal failure.

13. Check the water pump. A water pump with a

damaged impeller does not pump enough coolant

for correct engine cooling. Remove the water

pump and check for damage to the impeller.

3. Make sure that air flow through the radiator does

not have a restriction. Look for bent core fins

between the folded cores of the radiator. Also, look

for debris between the folded cores of the radiator.

14. Consider high outside temperatures. When

outside temperatures are too high for the rating of

the cooling system, there is not enough of a

temperature difference between the outside air and

coolant temperatures. The maximum temperature

of the ambient air that enters the engine should not

exceed 50 °C (120 °F).

4. Inspect the drive belts for the fan.

5. Check for damage to the fan blades.

6. Look for air or combustion gas in the cooling

system.

15. When a load that is applied to the engine is too

large, the engine rpm does not increase with an

increase of fuel. This lower engine rpm causes a

reduction in coolant flow through the system. This

combination of less air and less coolant flow during

high input of fuel will cause above normal heating.

7. Inspect the filler cap, and check the surface that

seals the filler cap. This surface must be clean.

8. Look for large amounts of dirt in the radiator core.

Look for large amounts of dirt on the engine.

Remove the dirt from the radiator core and the

engine.

16. Timing of the engine which is incorrect may also

cause overheating of the engine. Late timing

creates more heat in the engine. Early timing

creates less heat in the engine.

9. Fan shrouds that are loose or missing cause poor

air flow for cooling.

i01964006

Note: If the timing of the engine is incorrect, the

exhaust valves may be burned and damage to the

exhaust manifold may occur.

Cooling System - Test

Remember that temperature and pressure work

together. When a diagnosis is made of a cooling

system problem, temperature and pressure must be

checked. The cooling system pressure will have an

effect on the cooling system temperature. For an

example, refer to Illustration 80 . This will show the

effect of pressure on the boiling point (steam) of

water. This will also show the effect of height above

sea level.

i01300404

Cooling System - Inspect

Cooling systems that are not regularly inspected are

the cause for increased engine temperatures. Make a

visual inspection of the cooling system before any

tests are performed.

Personal  injury  can  result  from  escaping  fluid

under pressure.

If a pressure indication is shown on the indicator,

push the release valve in order to relieve pressure

before removing any hose from the radiator.

1. Check the coolant level in the cooling system.

2. Look for leaks in the system.

This document is printed from SPI². Not for RESALE




72

KENR9144

Cooling System

Illustration 80

g00286266

Illustration 81

g00296067

Cooling system pressure at specific altitudes and

boiling points of water

Typical schematic of filler cap

(1) Sealing surface between the pressure cap and the radiator

Personal injury can result from hot coolant, steam

and alkali.

Personal injury can result from hot coolant, steam

and alkali.

At operating  temperature,  engine coolant  is hot

and under pressure. The  radiator and all lines  to

heaters  or  the   engine  contain  hot  coolant  or

steam. Any contact can cause severe burns.

At operating  temperature,  engine coolant  is hot

and under pressure.  The radiator and all lines  to

heaters  or  the   engine  contain  hot  coolant  or

steam. Any contact can cause severe burns.

Remove filler cap slowly to  relieve pressure only

when engine is  stopped and radiator cap is  cool

enough to touch with your bare hand.

Remove filler cap slowly to  relieve pressure only

when engine is  stopped and radiator cap is  cool

enough to touch with your bare hand.

The coolant level must be to the correct level in order

to check the coolant system. The engine must be cold

and the engine must not be running.

To check for the amount of pressure that opens the

filler cap, use the following procedure:

1. After the engine cools, carefully loosen the filler

cap. Slowly release the pressure from the cooling

system. Then, remove the filler cap.

After the engine is cool, loosen the pressure cap in

order to relieve the pressure out of the cooling

system. Then remove the pressure cap.

The level of the coolant should not be more than

13 mm (0.5 inch) from the bottom of the filler pipe. If

the cooling system is equipped with a sight glass, the

coolant should be to the correct level in the sight

glass.

2. Inspect the pressure cap carefully. Look for

damage to the seal. Look for damage to the

surface that seals. Remove any debris on the cap,

the seal, or the sealing surface.

Carefully inspect the filler cap. Look for any

damage to the seals and to the sealing surface.

Inspect the following components for any foreign

substances:

Checking the Filler Cap

One cause for a pressure loss in the cooling system

can be a faulty seal on the radiator pressure cap.

•   Filler cap

•   Seal

•   Surface for seal

Remove any deposits that are found on these

items, and remove any material that is found on

these items.

3. Install the pressure cap onto a suitable

pressurizing Pump.

This document is printed from SPI². Not for RESALE




KENR9144

73

Cooling System

4. Observe the exact pressure that opens the filler

i05183360

cap.

Water Temperature Regulator -

Test

5. Compare the pressure to the pressure rating that is

found on the top of the filler cap.

6. If the filler cap is damaged, replace the filler cap.

Introduction

Testing The Radiator And Cooling

System For Leaks

This procedure is intended to give information on

testing the water temperature regulator.

Use the following procedure to test the radiator and

the cooling system for leaks.

Test Procedure

Personal  injury  can  result  from  escaping  fluid

under pressure.

Personal injury can result from hot coolant, steam

and alkali.

If a pressure indication is shown on the indicator,

push the release valve in order to relieve pressure

before removing any hose from the radiator.

At operating  temperature,  engine coolant  is hot

and under pressure. The  radiator and all lines  to

heaters  or  the   engine  contain  hot  coolant  or

steam. Any contact can cause severe burns.

1. Remove the water temperature regulator from the

engine.

Remove filler cap slowly to  relieve pressure only

when engine is  stopped and radiator cap is  cool

enough to touch with your bare hand.

2. Heat water in a pan until the temperature of the

water is equal to the fully open temperature of the

water temperature regulator. Refer to

Specifications, “Water Temperature Regulator” for

the fully open temperature of the water

temperature regulator. Stir the water in the pan.

This will distribute the temperature throughout the

pan.

1. When the engine has cooled, loosen the filler cap

to the first stop. Allow the pressure to release from

the cooling system. Then remove the filler cap.

2. Make sure that the coolant covers the top of the

radiator core.

3. Put a suitable pressurizing Pump onto the radiator.

3. Hang the water temperature regulator in the pan of

water. The water temperature regulator must be

below the surface of the water. The water

temperature regulator must be away from the sides

and the bottom of the pan.

4. Use the pressurizing pump to increase the

pressure to an amount of 20 kPa  (3 psi) more than

the operating pressure of the filler cap.

5. Check the radiator for leakage on the outside.

4. Keep the water at the correct temperature for ten

minutes.

6. Check all connections and hoses of the cooling

system for leaks.

5. After ten minutes, remove the water temperature

regulator. Immediately measure the opening of the

water temperature regulator. Refer to

Specifications, “Water Temperature Regulator” for

the minimum opening distance of the water

temperature regulator at the fully open

temperature.

The radiator and the cooling system do not have

leakage if all of the following conditions exist:

•   You do NOTobserve any leakage after five

minutes.

•   The dial indicator remains constant beyond five

minutes.

If the distance is less than the amount listed in the

manual, replace the water temperature regulator.

The inside of the cooling system has leakage only

if the following conditions exist:

i02193835

•   The reading on the gauge goes down.

Water Pump - Inspect

•   You do NOTobserve any outside leakage.

Make any repairs, as required.

This document is printed from SPI². Not for RESALE




74

KENR9144

Cooling System

Illustration 82

g01109205

1. Start the engine. Inspect the water pump for

excessive leaks at the vent hole (1).

Note: A small amount of coolant leakage across the

surface of the seal for the jacket water pump is

normal. This leakage is required to provide lubrication

for this type of seal. A hole is provided in the water

pump housing in order to allow this coolant/seal

lubricant to drain from the water pump housing.

Intermittent leakage of small amounts of coolant from

this hole is not an indication of water pump seal

failure.

2. Inspect the water pump shaft for unusual noise,

excessive looseness and/or vibration of the

bearings.

This document is printed from SPI². Not for RESALE




KENR9144

75

Basic Engine

Basic Engine

i02965792

Piston Ring Groove - Inspect

Inspect the Piston and the Piston

Rings

1. Check the piston for wear and other damage.

Illustration 84

g01109214

2. Check that the piston rings are free to move in the

grooves and that the rings are not broken.

(1) Feeler gauge

(2) Piston ring

Inspect the Clearance of the Piston

Ring

1. Clean all carbon from the top of the cylinder bores.

2. Place each piston ring (2) in the cylinder bore.

1. Remove the piston rings and clean the grooves

and the piston rings.

3. Use a suitable feeler gauge (1) to measure piston

ring end gap. Refer to Specifications, “Piston and

Rings” for the dimensions.

Note: The coil spring must be removed from the oil

control ring before the gap of the oil control ring is

measured.

i02193842

Connecting Rod - Inspect

This procedure determines the following

characteristics of the connecting rod:

•   The distortion of the connecting rod

Illustration 83

g01109213

•   The parallel alignment of the bores of the

connecting rod

(1) Feeler gauge

(2) Piston grooves

(3) Piston ring

2. Fit new piston rings (3) in the piston grooves (2).

3. Check the clearance for the piston ring by placing a

suitable feeler gauge (1) between piston groove (2)

and the top of piston ring (3). Refer to

Specifications, “Piston and Rings” for the

dimensions.

Note: On 403D-15T, 404D-22Tand 404D-22TA

engines, the pistons have a tapered top groove and

the piston ring is wedged. The clearance for the top

piston ring cannot be checked by the above method

when this occurs.

Inspect the Piston Ring End Gap

This document is printed from SPI². Not for RESALE




76

KENR9144

Basic Engine

Connecting rod bearings are available with a smaller

inside diameter than the original size bearings. These

bearings are for crankshafts that have been ground.

i01748792

Main Bearings - Inspect

Check the main bearings for wear or other damage.

Replace both halves of the bearings and check the

condition of the other bearings if a main bearing is

worn or damaged.

Main bearings are available with a smaller inside

diameter than the original size bearings. These

bearings are for main bearing journals that have been

ground.

Illustration 85

g00690891

Inspection of the connecting rod parallel alignment.

(1) Measuring pins

(2) Connecting rod

(A) Measure the distance 100 mm  (3.94 inch) from the connecting

rod.

i02193978

(B) Measure the distance between the center of the bore for the

piston pin bearing and the center of the connecting rod bearing

bore.

Cylinder Block - Inspect

1. Use the appropriate tools in order to measure the

distances for the connecting rod (2).

•   Appropriate gauges for measuring distance

•   Measuring pins (1)

Note: The connecting rod bearings should be

removed before taking the measurements.

2. Measure the connecting rod for distortion and

parallel alignment between the bores.

The measurements must be taken at distance (A).

Distance (A) has a value of 100 mm  (3.94 inch)

from both sides of the connecting rod.

Illustration 86

g00907375

Measure length (B).

Use a straight edge and a feeler gauge to check the

six positions for flatness. Refer to Illustration 86 .

The total difference in measurements of length (B)

from each side should not vary more than

± 0.08 mm (± 0.0031 inch).

Inspect the top of the cylinder block for cracks,

damage, and warpage.

3. Inspect the piston pin bearing and the piston pin for

wear and other damage.

Inspect each cylinder bore. There should be no

scoring, rust or corrosion. Use a suitable gauge in

order to measure each cylinder bore. Measure the

area of each cylinder bore that is in contact with the

top, middle and bottom piston rings. Each cylinder

bore should be measured at 90 degrees to the

crankshaft.

4. Measure the clearance of the piston pin in the

piston pin bearing. Refer to Specifications,

“Connecting Rod” for clearance dimensions.

i01748770

NOTICE

The  flex-hone process  must not  be used  on  these

engines.

Connecting Rod Bearings -

Inspect

If the cylinder bores exceed the service limit, the

cylinder block must be renewed. Refer to

Specifications, “Cylinder Block” for the bore

diameters and tolerances.

Check the connecting rod bearings and the

connecting rod bearing journal for wear or other

damage.

This document is printed from SPI². Not for RESALE




KENR9144

77

Basic Engine

i04904653

Cylinder Head - Inspect

Illustration 87

g01317351

Bolt tightening sequence for the 403F-15T  engines

Illustration 89

g00842292

Typical example

4. Put the cylinder head (1) on suitable supports (2).

Illustration 88

g01109567

Bolt tightening sequence for the 404D-22, and 404D-

22T engines

Illustration 90

g00907448

1. Remove the bolts in the cylinder head in the

reverse sequence that is shown in Illustrations 87

and 88 .

Typical example

5. Use a straight edge and a feeler gauge to check

the six positions of the cylinder head for distortion.

Refer to Specifications, “Cylinder Head” for the

requirements of flatness.

Remove the cylinder head from the engine.

2. Clean the cylinder head thoroughly. Ensure that the

contact surface of the cylinder head and the

contact surface of the cylinder block are clean,

smooth, and flat.

i02194219

Piston Height - Inspect

3. Inspect the bottom surface of the cylinder head for

pitting, corrosion, and cracks. Inspect the area

around the valve seats and the holes for the fuel

injectors.

Table 8

Required Tools

Part Number

21825617

21825496

Part Description

Dial gauge

Qty

1

Dial gauge holder

1

This document is printed from SPI². Not for RESALE




78

KENR9144

Basic Engine

If the height of the piston above the cylinder block is

not within the tolerance that is given in the

Specifications Module, “Piston and Rings”, the

bearing for the piston pin must be checked. Refer to

Testing and Adjusting, “Connecting Rod - Inspect”. If

any of the following components are replaced or

remachined, the piston height above the cylinder

block must be measured:

3. Position the dial gauge holder (2) and the dial

gauge (1) in order to measure the piston height

above the cylinder block. Slowly rotate the

crankshaft in order to determine when the piston is

at the highest position. Record this dimension.

Compare this dimension with the dimensions that

are given in Specifications, “Cylinder Head”.

•   Crankshaft

i02194222

•   Cylinder head

Flywheel - Inspect

•   Connecting rod

•   Bearing for the piston pin

Alignment of the Flywheel Face

The correct piston height must be maintained in order

to ensure that the engine conforms to the standards

for emissions.

Note: The top of the piston must not be machined. If

the original piston is installed, be sure that the original

piston is assembled to the correct connecting rod and

installed in the original cylinder.

Illustration 92

g00987751

1. Install the dial indicator. Refer to Illustration 92 .

2. Set the pointer of the dial indicator to 0 mm

(0 inch).

Illustration 91

g00953648

3. Turn the flywheel. Read the dial indicator for every

(1) Dial gauge

(2) Dial gauge holder

90 degrees.

Note: During the check, keep the crankshaft pressed

toward the front of the engine in order to remove any

end clearance.

1. Use the dial gauge (1) and the dial gauge holder

(2) in order to measure the piston height above the

cylinder block. Use the cylinder block face to zero

the dial gauge (1).

4. Calculate the difference between the lowest

measurement and the highest measurement of the

four locations. This difference must not be greater

than 0.03 mm (0.001 inch) for every 25 mm

(1.0 inch) of the radius of the flywheel. The radius

of the flywheel is measured from the axis of the

crankshaft to the contact point of the dial indicator.

2. Rotate the crankshaft until the piston is at the

approximate top center.

This document is printed from SPI². Not for RESALE




KENR9144

79

Basic Engine

Flywheel Runout

Face Runout (Axial Eccentricity)of

the Flywheel Housing

Illustration 94

g00285931

21825617 Dial Indicator Group

1. Fasten a dial indicator to the flywheel so the anvil

of the dial indicator will contact the face of the

flywheel housing.

Illustration 93

g00987752

1. Install the dial indicator. Refer to Illustration 93 .

2. Put a force on the crankshaft toward the rear

before the dial indicator is read at each point.

2. Set the pointer of the dial indicator to 0 mm

(0 inch).

3. Turn the flywheel. Read the dial indicator for every

90 degrees.

4. Calculate the difference between the lowest

measurement and the highest measurement of the

four locations. This difference must not be greater

than 0.20 mm (0.008 inch).

i05191413

Flywheel Housing - Inspect

Illustration 95

g00285932

Table 9

Checking face runout of the flywheel housing

Required Tools

Part

Number

3. Turn the flywheel while the dial indicator is set at

0.0 mm (0.00 inch) at location (A). Read the dial

indicator at locations (B), (C), and (D).

Part Name

Qty

21825617

Dial Indicator Group

1

4. The difference between the lower measurements

and the higher measurements that are performed

at all four points must not be more than 0.20 mm

(0.008 inch) for an “SAE 5” flywheel housing. The

difference between the lower measurements and

the higher measurements that are performed at all

four points must not be more than 0.23 mm

(0.009 inch) for an “SAE 4” flywheel housing.

These measurements are the maximum

permissible face runout (axial eccentricity) of the

flywheel housings.

This document is printed from SPI². Not for RESALE




80

KENR9144

Basic Engine

Bore Runout (Radial Eccentricity)

of the Flywheel Housing

i02617095

Gear Group - Inspect

Illustration 96

g00285934

21825617 Dial Indicator Group

Illustration 98

g00907566

1. Fasten a dial indicator to the flywheel so the anvil

of the dial indicator will contact the bore of the

flywheel housing.

1. Inspect the gears for wear or damage. If one or

more of the gears are worn or damaged, use new

parts for replacement.

2. Measure the backlash of the gears with a feeler

gauge. Refer to Illustration 98 . If the backlash

measurement is greater than the maximum, install

new gears.

Note: Refer to Specifications, “Gear Group (Front)”

for the minimum and maximum backlash

measurements.

Illustration 97

g00285932

Checking bore runout of the flywheel housing

2. Turn the flywheel while the dial indicator is set at

0.0 mm (0.00 inch) at location (A). Read the dial

indicator at locations (B), (C), and (D).

3. The difference between the lower measurements

and the higher measurements that are performed

at all four points must not be more than 0.20 mm

(0.008 inch) for an “SAE 5” flywheel housing. The

difference between the lower measurements and

the higher measurements that are performed at all

four points must not be more than 0.23 mm

(0.009 inch) for an “SAE 4” flywheel housing.

These measurements are the maximum

permissible bore runout (radial eccentricity) of the

flywheel housings.

This document is printed from SPI². Not for RESALE




KENR9144

81

Electrical System

Electrical System

i02195377

Alternator - Test

1. Put the positive lead “+” of a suitable multimeter

on the “Bat”  terminal of the alternator. Put the

negative  “-” lead on the ground terminal or on the

frame of the alternator. Put a suitable ammeter

around the positive output wire of the alternator.

2. Turn off all electrical accessories. Turn off the fuel

to the engine. Operate the starter motor for 30

seconds. Wait for two minutes in order to cool the

starter motor. If the electrical system appears to

operate correctly, operate the starter motor again

for 30 seconds.

Note: Operating the starter motor for 30 seconds

partially discharges the batteries in order to do a

charging test. If the battery has a low charge, do not

perform this step. Jump start the engine or charge the

battery before the engine is started.

3. Start the engine and run the engine at high idle.

4. Check the output current of the alternator. The

initial charging current should be equal to the

minimum full load current or greater than the

minimum full load current. Refer to Specifications,

“Alternator and Regulator” for the correct minimum

full load current.

Table 10

Fault Conditions And Possible Causes

Current At Start-up

The Voltage Is Below Specifica-   The Voltage Is Within Specifica-  The Voltage Is Above Specifica-

tions After 10 Minutes.

tions After 10 Minutes.

tions After 10 Minutes.

Less than the specifications

Replace the alternator. Check the   Turn on all accessories. If the volt-

-

circuit of the ignition switch.

Replace the alternator.

age decreases below the specifi-

cations, replace the alternator.

Decreases after matching

specifications

The alternator and the battery

match the specifications. Turn on

all accessories in order to verify

that the voltage stays within

specifications.

Replace the alternator.

The voltage consistentlyex-

ceeds specifications.

Test the battery. Test the alternator  The alternator operates within the   Replace the alternator. Inspect the

again.                                            specifications. Test the battery.        battery for damage.

6. After ten minutes of engine operation, the charging

current should decrease to approximately 10

amperes. The actual length of time for the

decrease to 10 amperes depends on the following

conditions:

5. After approximately ten minutes of operating the

engine at high idle, the output voltage of the

alternator should be 14.0 ± 0.5 volts. Refer to the

Fault Conditions And Possible Causes in Table 10

.

This document is printed from SPI². Not for RESALE




82

KENR9144

Electrical System

•   The battery charge

Whenever it is possible, test the charging unit and the

voltage regulator on the engine. This test will use

wiring and components that are a permanent part of

the system. Off-engine testing or bench testing will

give a test of the charging unit and voltage regulator

operation. This testing will give an indication of

needed repair. After repairs are made, perform a test

in order to prove that the units have been repaired to

the original condition of operation.

•   The ambient temperature

•   The rpm of the engine

Refer to the Fault Conditions And Possible Causes

in Table 10 .

i01899136

Alternator Regulator

Battery - Test

The charging rate of the alternator should be checked

when an alternator is charging the battery too much

or not charging the battery enough.

Most of the tests of the electrical system can be done

on the engine. The wiring insulation must be in good

condition. The wire and cable connections must be

clean, and both components must be tight.

Alternator output should be 14 ± 0.5 volt. No

adjustment can be made in order to change the rate

of charge on the alternator regulator. If the rate of

charge is not correct, a replacement of the regulator

is necessary. For individual alternator output, refer to

Specification, “Alternator and Regulator”.

Never disconnect any charging unit circuit or bat-

tery circuit cable from the battery when the charg-

ing  unit   is  operated.   A  spark  can   cause  an

explosion from  the  flammable  vapor mixture  of

hydrogen and  oxygen  that is  released from  the

electrolyte through  the battery  outlets. Injury  to

personnel can be the result.

i02196186

Coolant Temperature Switch -

Test

This procedure tests the coolant temperature switch

for correct operation. Perform this procedure when

the engine is running.

The battery circuit is an electrical load on the

charging unit. The load is variable because of the

condition of the charge in the battery.

1. Use a suitable digital multimeter to measure the

resistance of the coolant temperature switch.

When the temperature of the coolant is 50 °C

(122 °F) or less, disconnect the wire connector

from the coolant temperature switch.

NOTICE

The charging unit will be damaged if the connections

between the battery and the charging unit are broken

while the  battery is  being charged.  Damage occurs

because the load from the battery is lost and because

there is an increase in charging voltage. High voltage

will damage the charging unit, the regulator, and other

electrical components.

2. Place one lead of the multimeter on the connector

of the coolant temperature switch. Place the other

lead of the multimeter on a ground for the coolant

temperature switch.

The correct procedures to test the battery can be

found in the manual that is supplied by the OEM.

Measure the resistance. The resistance should be

54 ± 2 ohms.

3. Repeat the previous step when the temperature of

the coolant is approximately 120 °C (248 °F). The

resistance should not be less than 15 ohms.

i02196181

Charging System - Test

4. If the resistance through the coolant temperature

switch is not within the given resistances, replace

the coolant temperature switch.

The condition of charge in the battery at each regular

inspection will show if the charging system is

operating correctly. A repair is necessary when the

battery is constantly in a low condition of charge or a

large amount of water is needed. There are no

adjustments on maintenance free batteries. A large

amount of water would be more than one ounce of

water per cell per week or per every 100 service

hours.

i02196199

Electric Starting System - Test

Use a suitable multimeter in the “DC volts” range to

find starting system components which do not

function.

This document is printed from SPI². Not for RESALE




KENR9144

83

Electrical System

Move the start control switch in order to activate the

starter solenoid. The operation of the starter solenoid

can be heard as the pinion of the starter motor is

engaged with the ring gear on the engine flywheel.

If the circuit is correct, replace the engine oil

pressure switch. If the circuit is repaired or if the

engine oil pressure switch or warning lamp are

replaced, repeat this Step in order to ensure that

the warning light turns on.

If the solenoid for the starter motor will not operate, it

is possible that the current from the battery did not

reach the solenoid. Fasten one lead of the multimeter

to the connection (terminal) for the battery cable on

the solenoid. Connect the other lead to a good

ground. A zero reading indicates that there is a

broken circuit from the battery. More testing is

necessary when there is a voltage reading on the

multimeter.

Note: The engine oil pressure switch may be

mounted on either the cylinder block or the valve

mechanism cover.

2. Remove the engine oil pressure switch from the

cylinder block or from the valve mechanism cover.

Disconnect the wire connector on the wiring

harness from the engine oil pressure switch. Use a

12 volt battery as a power source. Connect the

terminals of the battery, the engine oil pressure

switch and the leads of a suitable digital multimeter

in series. Measure the current through the engine

oil pressure switch.

The operation of the solenoid also closes the electric

circuit to the starter motor. Connect one lead of the

multimeter to the solenoid connection (terminal) that

is fastened to the starter motor. Connect the other

lead to a good ground. Activate the starter solenoid

and look at the multimeter. A voltage reading of the

battery shows that the problem is in the starter motor.

The starter motor must be removed for further testing.

A zero reading on the multimeter shows that the

solenoid contacts do not close. This indicates the

need for repair to the solenoid, or to the clearance for

the starter motor pinion.

3. The current should be 0.30 to 0.40 amperes. If the

current through the engine oil pressure switch is

greater than 0.42 amperes, replace the engine oil

pressure switch.

Perform a test. Fasten one multimeter lead to the

connection (terminal) for the small wire at the

solenoid and fasten the other lead to the ground.

Look at the multimeter and activate the starting

solenoid. A voltage reading shows that the problem is

in the solenoid. A zero reading indicates that the

problem is in the start switch or the wires for the start

switch.

i02196363

Fuel Shutoff Solenoid - Test

Fasten one multimeter lead to the start switch at the

connection (terminal) for the wire from the battery.

Fasten the other lead to a good ground. A zero

reading indicates a broken circuit from the battery.

Check of the circuit breaker and wiring. If there is a

voltage reading, the problem is in the start switch or in

the wires for the start switch.

A starter motor that operates too slowly can have an

overload due to excessive friction in the engine that is

being started. Slow operation of the starter motor can

also be caused by a short circuit, loose connections,

and/or dirt in the starter motor.

i02196230

Engine Oil Pressure Switch -

Test

This procedure tests the engine oil pressure switch

for correct operation.

Illustration 99

g01115662

(1) Positive “+”  lead

(2) Electrical connector

(3) Plunger

(4) Body of the fuel shutoff solenoid

(5) Negative “−”  lead

1. Turn the ignition switch to the ON, but do not start

the engine. The warning light for low engine oil

pressure should turn on.

This procedure tests the fuel shutoff solenoid for

correct operation.

If the warning light does not turn on, check the

electrical circuit to the warning light and the engine

oil pressure switch for shorts or an open circuit.

Check the bulb for the warning light for damage.

This document is printed from SPI². Not for RESALE




84

KENR9144

Electrical System

1. Remove the fuel shutoff solenoid from the engine.

Refer to Disassembly and Assembly, “Fuel Shutoff

Solenoid - Remove and Install”.

1. Connect a suitable test light between a ground and

the terminal of the glow plug (4). Choose the glow

plug that is farthest away from the battery. Turn the

starting aid switch to the ON position.

2. Use a 12 volt battery as a power source. Connect

the lead from the battery positive terminal (1) to

one of the pins in the electrical connector (2) on

the fuel shutoff solenoid. Connect the lead from the

battery negative terminal (5) to the remaining pin in

the electrical connector (2) on the fuel shutoff

solenoid.

If the circuit is correct, the test light should turn on.

If the test light does not turn on, inspect the circuit

for loose connections, broken wires, and other

damage.

2. Loosen the nut (1) on each glow plug and then

disconnect the connectors (3) from the glow plugs

(4).

The plunger (3) on the fuel shutoff solenoid (4)will

extend the maximum distance when the leads are

connected.

3. Use a suitable digital multimeter to measure the

resistance between the electrical terminal of the

glow plug (4) and ground. The point for the ground

should be as close to the glow plug as possible.

If the plunger does not move or if the plunger does

not extend the maximum distance, replace the fuel

shutoff solenoid.

3. Use a suitable digital multimeter to measure the

current through the fuel shutoff solenoid. Connect

the battery, the fuel shutoff solenoid, and the leads

of the multimeter in series.

Maximum resistance for the glow plugs. ....... 1.0 ohm

4. Connect the test light to the positive terminal of the

battery and to the electrical terminal of the glow

plug (4). If the light turns on, the continuity in the

glow plug is correct.

The current should be 1.0 ± 0.1 amperes. If the

current is not within this tolerance, replace the fuel

shutoff solenoid.

If the light does not turn on, replace the glow plug.

Repeat this step for each glow plug.

4. Install the fuel shutoff solenoid on the engine. Refer

to Disassembly and Assembly, “Fuel Shutoff

Solenoid - Remove and Install”.

5. Install the connector (3) on each glow plug (4) and

tighten the nut (1).

i05191119

Glow Plug Circuit

Glow Plugs - Test

1. Disconnect the power supply cable from the

connector (3). Loosen the nut (1) and remove the

connector (3) from the electrical terminal of the

glow plug (4).

2. Connect the leads of a suitable ammeter between

the power supply cable and the terminal of a glow

plug and then connect the leads of the digital

multimeter between the terminal of the glow plug

and a ground. Turn on the starting aid switch.

Observe the amperage reading of the ammeter

and the voltage reading on the multimeter.

403F-15T, 404F-22, and 404F-22T

Maximum current through the glow plug ....... 11 A

Illustration 100

g01109557

Current through the glow plug after 6 seconds

......................................................................8.5 A

Typical example

(1) Nut

The voltage should not drop more than 0.5 V.

Perform step 2 for each glow plug.

(2) Washer

(3) Connector

(4) Glow plug

3. If the multimeter reading is below the specified

amperes, the glow plug should be replaced. If

there is no reading, replace the glow plug.

Continuity Test

This document is printed from SPI². Not for RESALE




KENR9144

85

Electrical System

If the voltage reading of the multimeter is zero,

inspect the starting aid switch and the power

supply for faulty components and loose

connections.

4. When the tests are complete, install the connector

(3) to the terminal of each of the glow plugs (4) and

tighten the nut (1). Connect the cable for the power

supply to the glow plugs.

This document is printed from SPI². Not for RESALE




86

KENR9144

Index Section

Index

A

Cleaning Procedure..................................... 59

Reset the Engine Ash Model ....................... 60

Air in Fuel - Test............................................... 46

Air Inlet and Exhaust System......................35, 59

Crankcase Breather..................................... 37

Cylinder Head And Valves........................... 36

NOx Reduction System (NRS) - Turbocharged

Engines...................................................... 36

Turbocharger................................................ 35

Air Inlet and Exhaust System - Inspect............ 59

Alternator - Test ............................................... 81

E

Electric Starting System - Test......................... 82

Electrical System........................................43, 81

Charging System Components.................... 44

Engine Electrical System............................. 43

Other Components....................................... 45

Starting System Components...................... 44

Electronic Control System Components.......... 14

Block diagram for the 403F-15T engine...... 14

Block diagram for the 404F-22 engine........ 16

Block diagram for the 404F-22T engine...... 17

Diagnostic Codes......................................... 27

ECM............................................................. 27

Pressure Sensors and Switches.................. 30

Sensor Locations for the Clean Emissions

B

Basic Engine...............................................42, 75

Cylinder Head and Block ............................. 42

Pistons and Connecting Rods ..................... 42

Timing Gear Case and Gears...................... 43

Battery - Test.................................................... 82

Module ....................................................... 26

Sensor Locations for the Engine.................. 17

Speed Sensors ............................................ 27

Temperature Sensors................................... 31

Engine Oil Pressure - Test............................... 67

Engine Oil Pressure Switch - Test ................... 83

Engine Oil Pump - Inspect............................... 67

Engine Valve Lash - Inspect/Adjust................. 62

Valve Lash Adjustment ................................ 62

Valve Lash Setting....................................... 62

Excessive Bearing Wear - Inspect................... 68

Excessive Engine Oil Consumption - Inspect.. 69

Engine Oil Leaks into the Combustion Area of

the Cylinders.............................................. 69

Engine Oil Leaks on the Outside of the Engine

................................................................... 69

Exhaust Cooler (NRS) - Test (If Equipped)...... 61

C

Charging System - Test ................................... 82

Alternator Regulator..................................... 82

Clean Emissions Module................................. 37

Air System for the Clean Emissions Module

................................................................... 40

Electronic Controls....................................... 40

Fuel System for the Clean Emissions Module

................................................................... 40

Soot Level Outputs ...................................... 39

Compression - Test.......................................... 62

Compression................................................ 62

Connecting Rod - Inspect................................ 75

Connecting Rod Bearings - Inspect................. 76

Coolant Temperature Switch - Test.................. 82

Cooling System ..........................................41, 70

Cooling System - Check (Overheating)........... 70

Cooling System - Inspect................................. 71

Cooling System - Test...................................... 71

Checking the Filler Cap................................ 72

Testing The Radiator And Cooling System For

Leaks.......................................................... 73

Cylinder Block - Inspect................................... 76

Cylinder Head - Inspect................................... 77

F

Finding Top Center Position for No. 1 Piston... 47

Flywheel - Inspect............................................ 78

Alignment of the Flywheel Face................... 78

Flywheel Runout.......................................... 79

Flywheel Housing - Inspect ............................. 79

Bore Runout (Radial Eccentricity) of the

Flywheel Housing....................................... 80

Face Runout (Axial Eccentricity) of the

D

Flywheel Housing....................................... 79

Diesel Particulate Filter - Clean....................... 59

This document is printed from SPI². Not for RESALE




KENR9144

87

Index Section

Fuel Injection Timing - Check .......................... 47

Fuel Injector - Test ........................................... 49

Inspection and Cleaning of the Fuel Injectors

................................................................... 49

Leakage Test................................................ 49

Pressure Test............................................... 50

Test for the Nozzle Spray Pattern ................ 51

Fuel Quality - Test............................................ 52

Fuel Shutoff Solenoid - Test............................. 83

Fuel System................................................31, 46

Fuel Injection Nozzles.................................. 34

Fuel Injection Pump ..................................... 34

Fuel Transfer Pump ..................................... 35

General Operation of the Fuel System......... 31

Glow Plugs................................................... 35

Governor...................................................... 33

Fuel System - Inspect...................................... 46

Fuel System - Prime........................................ 52

Fuel Transfer Pump - Test ............................... 48

M

Main Bearings - Inspect................................... 76

P

Piston Height - Inspect..................................... 77

Piston Ring Groove - Inspect........................... 75

Inspect the Clearance of the Piston Ring..... 75

Inspect the Piston and the Piston Rings ...... 75

Inspect the Piston Ring End Gap................. 75

S

Systems Operation Section............................... 4

T

Table of Contents............................................... 3

Testing and Adjusting Section ......................... 46

G

V

Gear Group - Inspect....................................... 80

Gear Group (Front) - Time............................... 52

General Information........................................... 4

403F-15T ....................................................... 5

404F-22.......................................................... 6

404F-22T ....................................................... 7

Engine Description......................................... 4

Engine Model Views ...................................... 4

Loose Components for the Engine .............. 10

Glossary of Electronic Control Terms .............. 10

Glow Plugs - Test............................................. 84

Continuity Test ............................................. 84

Glow Plug Circuit ......................................... 84

Governor - Adjust............................................. 52

Final Installation of the New Front Housing

Valve Depth - Inspect....................................... 65

Valve Guide - Inspect....................................... 66

W

Wastegate - Test.............................................. 60

Inspection of the Wastegate......................... 60

Water Pump - Inspect...................................... 73

Water Temperature Regulator - Test................ 73

Introduction.................................................. 73

Test Procedure............................................. 73

................................................................... 56

Record the Governor Settings ..................... 53

Removal of the Old Front Housing............... 53

Setting the Fuel Screw ................................ 56

Setting the New Front Housing.................... 55

I

Important Safety Information............................. 2

L

Lubrication System.....................................40, 67

This document is printed from SPI². Not for RESALE




©2013 Perkins Engines Company Limited

All Rights Reserved

This document is printed from SPI². Not for RESALE

免費熱線
400-082-9096?
整機銷售
0731-84424871? 18374999699
售后維修
0731-84424872? 15580888444
配件銷售
0731-84424873? 18274802060
手機端
微信公眾號
亚洲成av人电影在线无码| аⅴbt天堂中文在线| 国产精品成人免费一区久久羞羞| 亚洲视频中文字幕一区二区| 青青草国产成人一区二区| 搜欧美成人精品一级a| 日韓在線二區| 亚洲天堂欧美一区二区| 中文字字幕在线播放一区| 99视频在线观看精品视频不卡| 在线观看高清无码视频| 久久午夜网鲁丝片香蕉| 涨精装满肚子怀孕怜儿| 伊人影影院院欧美久久久久| 亚洲一区二区三区在线麻豆| av黄色在线大全| 草莓视频APP色污| 一区二区三区亚洲国产精品视频| 波多野结衣老师出道十六年| 精品久久av无码一区二区三区| 久久黄色综合红色| 亚洲一级 片内射欧美a999| 久久久久久AV无码免费肉站| 最近日本韩国免费高清观看mv| 青青草无码免费一二三区| 国产在视频精品线观看88| 天天摸日日碰夜夜爽无码 | 爱爱帝国社区| 视频区国产图片区小说区| pao国产超碰在线播放| 校园春色男人天堂| 日韩欧美国产成人大全| 加勒比东洋精品映画防屏蔽 | 老女人任你躁久久久久久老妇| 亚洲gay免费网址| 日韩成人免费久草资源网| 三年片最新电影免费观看| 激情浪漫五月天综合| 亚洲人成在线影院| 欧美亚洲国产日韩综合网| 手机版磁力国产中文| 野花2019社区高清视频免费 | 日韩欧美亚洲综合久久影院D3本| 高潮迭起!国产区在线| 最新久久播日本久久播vt| 一级做a爰片久久毛多水多| 大肉大捧一进一出好爽视频mba| 国产资源在线亚洲| 成人无码区免费AⅤ片在线观看| 野花2019社区高清视频免费| 亚洲日韩在线不卡| 亚洲av色福利天堂| 精品午夜影视网科幻电影免费观看全集高清 | 欧美成人系列在线| 色婷婷成人精品综合一区| 一级黄片二级黄片三级黄片| 91精品欧美福利免费观看| 国产精品 色哟哟| 国产91黄色在线播放| 龚玥菲一级淫片免费放 | 在线成人精品国产区免费| 999久久亚洲区区| 美日韓在線觀看| 国产男女国产乱子伦视频在线播放| 2021最新无码免费| 一本加勒比HEZYO美痴女| 午夜在线精品亚洲无码免费 | 国产成人免费高清直播app| 黄片视频大全久久久| aa一级高清无码| 国产一级大黄片亚洲特级黄片| 清纯校花粉嫩粗大进出好爽| 91精品久久人人妻人人做| 任你躁久久久久久妇女AV| 久操久操久操日韩1| 国产妓女性猛交亚洲第一黄片 | 最新海角社区登录入口大事记| 熟妇精品午夜久久久久| 黄色国产精品一区| 成人工口18手游单机| 了解最新香蕉啪视频在线观看| 久久黄色片视频日本一区二区三区| 国产成色视频在线播放| 日韩经典三级欧美| 久久caoprom超碰人人看| 偷柏自拍亚洲综合在线| 亚洲毛片视频一级| 惠民福利疯狂做受xxxx高潮欧美| 免费成人黄色大片| 国产精品乱码久久久久久小说| 美国最新免费a级毛片| 日本欧美韩国在线观看| 欧美激性欧美激情?ⅴ| 黄色高清无码专区| 人妻av无码系列专区首页| 日韩欧美国产欧美| 最近中文字幕免费精品视频| a一级毛片人免费观一看| 亚洲成在人线在线播放器| 中文字幕资源站| 高潮综合精品视频在线| 欧美成狂野欧美在线观看| 911在线区啪国自产中文字幕| 香蕉草莓秋葵片多多绿巨人| 91在线播放国产视频| 中文字幕人妻日韩在线| 99在线观看精品全部免费视频| 黄网在线免费观看视频| 亚洲av无码久久精品狠狠爱麻豆| 亚洲乱码黄片大全精品视频| 亚洲欧美国产网曝| 亚洲一区亚洲二区亚洲三区| 亚洲va中文字幕亚洲爆乳无码专区| 亚洲国产一成久久精品 国产成人综合| 国产精品久久一级C片| 精品人妻一区二区久久| 紫色丝袜人妖被调教榨精 | 国产精品韩国欧美久久三级精品| 日本全彩翼漫画全彩无遮挡| 美美女视频黄的免费网站 | 亚洲国产校园辣文精品小说| 国产精品韩国欧美久久三级精品 | 日本免费综合欧美| 越碰人人在线公开视频| 56国语精品自产拍在线观看| 依依成人精品视频在线播放| 91久久精品无码毛片| 欧美日本国产福利| 亚洲东京热一区二区三区| 亚洲免费能看的黄片| 国产韩国日本一区二区| 最近中文字幕免费精品视频| 国产无码精品视频不卡| 2020精品国产福利观看无码| 明星国产一级毛片范冰冰视频| xman每日好图原神| HD成人日韩在线播放| 久久午夜网鲁丝片香蕉| 最近中文字幕mv免费视频1| 亚洲高清在线播放| 如何免费在线观看欧黄片 | 亚洲日韩欧美内射姐弟| 亚洲欧洲日本中文天堂| 中文字幕人妻二页| 一区二区三区在线精品重口| 国产69精品久久久久777国产真实偷乱视频 | 又长又硬又粗一区二区三区| 中文字幕东京热| 亚洲AV成人综合网久久| 亚洲物业中文字幕在线网 | 欧美一卡二卡≡卡四卡| 三上悠亚在线精品一区二区| 麻豆传媒映画app破解版国产下载污| 大香伊蕉在人线国产av| 一区二区三区精品国产亚洲| 亚洲国产不卡顿免费无码看av| 日本五十路熟女久久| 麻豆天美传媒av国产剧情| 色欲av免费 草逼com| 久久国产高清免费| 老妇乱伦精品一二三区| 黄色毛片色天堂app| 精品国产综合成人亚洲区小说| 欧美特级黄片| 91美女爆乳娇喘呻吟在线播放| 在线亚洲午夜片av大片| 午夜福利av日韩| 丝袜美腿高跟国产极品老师| 2018国产一级不卡| 久久久国产精亚州aⅴ哟哟哟| 亚洲AV肉丝网站一区二区无码| 一本大道久久东京热| 国产丝袜人妻一区二区电影| 性色福利刺激无码专区| 成品人短视频推荐app| 男女激情国产免费网站欧美视频 | 激情综合在线亚洲九月天| 一本色道无码DVD中文字幕| 又长又硬又粗一区二区三区| 国产无遮挡很黄很爽的视频| 国产在线一区无码视频久| 国产精品亚洲一区二区三区妖精| 欧美日本亚洲一站二站| 久久久久成人免费观看影院| 我要看免费的一级毛片| 日韩精品一区二区三区夜色 | 亚洲精品韩国专区在线专看| 日韩中字在线| 风流熟女一区二区三区| 亚洲日韩高清成人AⅤ在线网站| 了解最新日韩草逼视频| 门卫老头吮她的花蒂的主演是谁| 8000在线观看免费视频| 国产免费看久久久| 国产在线一区无码视频久| 日韩午夜不卡无码二区全集观看| 国产人成久久久精品| 国产你懂的的在线网站| 婷婷五月天免费视频| 国产在线秘麻豆精品观看| 国产成人亚洲精品91专区高清 | 日韩无码免费视频一区二区| 韩国一级做a爰片性色毛片 | 国产高清无专砖码区2021| 可以看的欧美变态一区网站| 狠狠亚洲色香五月综合排名| 无码欧亚熟妇人妻αV在线外遇| 成人久久a片一区无码束缚| 性xxxx18免费观看视频| 国产最新精品免费综合在线| 欧美精品黄片在线看| 自拍偷拍视频二区| 午夜国产精品成人| 青青操国产精品视频| 国产三级片黄色电影久久久久 | av黄色在线大全| 天堂巴比伦rpg游戏汉化安卓版| 日本女人视频中文字幕专区| 亞洲丶國產丶歐美一區二區三區| 伊人五月在线| 国产精品成av人片在线观看| 吃奶呻吟打开双腿做受是免费| 国产精品自产拍在线观看aⅴ| 亚洲试看黄片久久| 91精国产在线夜色| AV色欲无码人妻中文字幕| 亚洲人成网站77777免费| 亚洲国产精品jizz| 国产中日韩久久久噜噜久久| 国内精品视频兔费一区二区| 久久精品国亚洲?∨麻豆| 亚洲综合另类小说色区| 欧美在线一级精品| 日本19禁啪啪无遮挡免费动图 | 岛国免费v片在线观看完整版 | 色戒电影剧免费观看| 亚洲视频欧美视频另类视频| 亚洲国产一二区午夜国产 | 国产福利自产拍在线视频| 18gay男同69亚洲网站| 国产精品厂爽爽va在线| 清纯校花粉嫩粗大进出好爽| 91视频九色欧美| 国产精品免费无遮挡| 亚洲狠狠网站色噜噜| 亚洲AV无码成人精品电影在线| 五月丁香婷婷综合| 日本一级黄色一区二区| 麻豆av免费在线| 四季无码一区二区三区| 999久久亚洲区区| 欧美中文字幕欧美亚洲日韩 | 嫩草影院99av网站| 国产一区二区三区在线嘿嘿| 亚洲欧美日韩一区二区91| 最新2022国产精品国产精品| 黄软件在线无限看免费app| 三级片中字无码一区二区在线| 美女黄频网站一区二区三区| 美女污在线观看免费网站| 解开邻居少妇蕾丝内衣| 中文字幕无码高清晰| 国产第二区第一页| 欧美A级毛欧美1级A大片放| 国产三级无码自拍iz| 性爱国产精品福利在线| 久久天天操夜夜操狠狠操| 日本一级黄色一区二区| 欧美亚洲性色影视在线| 奇777超碰欧美日韩亚洲| 久久午夜无码鲁丝片午夜精| 一本色道无码DVD中文字幕| 国内精品视频兔费一区二区| 色五月激情五月亚洲综合考虑| 色欲99久久人妻精品| 伊人国产在线播放免费| 亚洲人成在线影院| 国产aⅴ一区二区三区| 羞羞视频APP在线看| 欧美交换国产一区内射| 污污网站在线观看免费| 亚洲一区 欧美二区| 国产精品嫩草影院久久久| 国产一区二区三级| 日韩无码啪啪视频| 蜜芽永不失联2023| 成人福利在线观看一区二区| 成年女人免费视频毛片| 国产三级无码自拍iz| 亚洲综合卡通动画激情| 亚洲av色福利天堂| 国产在线自在拍9| 老熟女奶头好大呀| 中文字幕无亚洲欧洲日韩| 亚洲无码最大无码不卡在线| 欧美专区 在线视频| 女人一旦尝到黑人的心理变化 | 精品无码免费成a人片| 天堂久久AV无码亚洲一区小说| 日韩成人影视一区二区中文字幕| 午夜精品國產| 日日摸日日操| 久久99午夜精品一区人妻| xxxx色视频在线观看免费app| 日本中文字幕乱码在线高清| 在线精品亚洲一区二区动态图| 国产成a人亚洲精ⅴ品无码不卡| 无遮挡无码一级毛片免费看| 免费av在线观看网站| 小柔在舞蹈室被c到高潮3| 天天干女人国产视频| 欧美一级aa片特级黄片| 日夜影院永久入口天天综合| 久热爱精品视频在线9| 2019午夜福利1000合集92| 亚洲第一日韩二区香蕉网| 了解最新久久久久久亚洲精品成人| 爆乳喷水动漫一区二区三区| 黄色欧美在线视频| 亚洲国产AV色一二区电影| 草莓视频破解版在线观看| 日韩中文字幕美少妇视频| 欧美成人h在线观看视频| 欧美日韩中国产视频| 宋雨琦下面好紧好湿好爽| 國產亞洲精品精品2020| 图区国产欧美另类在线| 日本乱理伦片在线观看胸大| 欧美国产日韩一区在线观看| 日本少妇深喉口爆视频| 高清洲久禁X在线免费看 | 免费一区二区三区精品性爱视频 | 一本之道无码亚洲道久久| 人妻av无码系列专区首页 | 西西裸体午夜福利视频| 国产三级精品三级精品在一区| 2024中文字幕在线中字下载| 偷看农村妇女牲交| 中文区第一页永久有效| 2021一区中文字幕在线| av片免费大全在线观看不卡饣| AV一区二区在线播放| 亚洲精品少妇高清| 一本一道高清无码中午字幕 | 国模gogo啪啪中国人体| 我要看免费的一级毛片| 久久老熟女AV一区三区福利| 韩国精品久久一区二区三区| 精品国产丝袜一区二区| 看国产三级黄色视频| 小柔在舞蹈室被c到高潮3| 亚洲成人av一区| AV无码一区二区三区国产| 侯爷粗壮冲刺顶弄h双性| 欧美中文日韩| 91久久精品无码毛片| 一女被多男玩到高潮喷水| 激情婷婷网址在线观看| 成人精品久久一区久久综合| 99久久精品国产综合影视| 适合一个人看流水的书| 女生自慰网站| 天天摸日日碰夜夜爽无码| 亚洲国产一区二区三区99| 成黄色片视频日本秘书丝袜 | 日本黄色二区三区免费观看 | 影视综合自拍乱伦| 国产精品日本欧美一区二区| 日韩黄色免费一级片| 久久性色av免费精品观看| 亚洲 欧美 另类 日韩 动漫 制服| 极品美女裸色在线观看视频| 免费的成年av久网站| 国产内射视频| 国产在线精品高颜值| 亚洲av乱码免费观看| 精品国产成a人在线观看| 亚洲自拍偷拍第五页| 精品久久一区二区不卡欧美日韩| 国模gogo啪啪中国人体| 国产人成一区二区三区影院| 国产亚洲精品资源在线视频| 欧美黑人巨大巨粗性AAAA| 午夜福利大片亚洲一区| 亚洲视频欧美视频另类视频| 午夜精品國產| 青青草国产手机观线| 亚洲一区高清| 日本一卡二卡三新区| 日韩欧美一中文字暮专区| 国产成人无码av一区二区在线| 特级毛片免费| 国产精品午夜宅男| 免费少妇精品无码视频| 国产成人a视频高清在线观看| 韩国精品三级bd高清中字| 搜欧美成人精品一级a| 人妻在线成人精品视频社区 | 视频区国产图片区小说区| 国产精品午夜宅男| 国产真实交换在线| 中文字幕无码人妻少妇免费| 亚洲最大的成人网| 国产精品亚洲专区无码info| 高清中文字幕一区二区三区| 欧美精品调教一区二区三区| 免费观看经典三级在线视频| 免费毛片在线看不用播放器| 老板把舌头伸进我下边视频| 日韩爆乳av少妇无码| 波多野结衣家庭教师诱惑| 东京热高清无码系列| 久久久无码免费毛片色欲av| 亚洲91麻豆又大又粗又黄| 精品在线网站| 大陆日韩欧美经典视频一区| 视频 福利 在线| 色欲亚洲āV无码久久精品成人| 国产一级片免费看片| 久久无码AV亚洲精品色午夜麻豆| 大地资源在线观看视频在线观看 | 国产欧美日韩精品二区动漫| 欧美日韩亚洲秒播| 精品一卡三卡四区一卡三卡| 日本高清仑乱少| 国产福利91精品视频| 综合亚洲无码另类| 亚洲综合另类区色噜噜98欧美| 999久久亚洲区区| 久久亚洲精品免费观看| 毛片免费全部播放| 国产a级午夜毛片| 婷婷肏屄视频一区二区三区| 国产制服丝袜av不卡在线观看| 黑人巨大精品欧美一区二区男同性恋| 国产亚洲精品资源在线视频| 欧美日韩做性视频| 无码AV国产精品一区二区| 日韩国产欧美成人一区二区影院| 中日韩丝袜无码AV一区二区三区| 女人一旦尝到黑人的心理变化| 国产狂喷潮视频免费观看| 精品久久久无码21| 丰满大乳少妇在线观看网站| 亚洲中文字幕一区二区三区在线看| 99久久精品毛片免费播放高潮不卡| 亚洲人妻中文日本| 国产国拍亚洲精品av在线| 男男无码sm调教gv| 无码有码国产制服日韩91土豆 | 欧美性色黄大片www| 99在线精品视频免费观看视频| 线观看成人短视频| A级男女性高爱潮试看| 蝴蝶忍触摸像素游戏speed| 成人a免费视频中文字幕| 国产成人高清特级毛片| 神马影院午夜在线| 操逼视频免费在线看| 国产又粗又大又色网网视频 | 久久精品国产99国产精品毛片| 人妻一区二区三区蜜桃| 超碰在线人人爽| 老熟妇女免费资源站| 亚洲视频欧美视频另类视频| 上司丰满人妻一级A片| 成人亚瑟免费视频在线| 无码不卡中文字幕av| 欧美日本国产福利| 十八禁一区二区天堂| 粉嫩玉足夹茎视频在线看| 亚洲国产精彩视频| 91抖音成人短视频APP| 日韩精品成人网| 茄子短视频成版人更懂你| 成人AA片免费视频毛片| 人妻无码精品在线播放| 老湿机69福利区无码| 91苏州晶体有限公司ios| 久久亚洲精品免费观看| 100%胸片曝光软件| 亚洲天堂欧洲国产AV网站| 综合久久久久久婷婷| 久久夜色精品国产嚕嚕亚| 91在线精品日韩一区免费| 明星国产一级毛片范冰冰视频| 了解最新福利在线不卡| 彩虹视频免费资源在线观看| 日本一本到高清有码| 国产传媒在线观看| 车上激情(H)小说| 无遮挡午夜男女xx0o免费| 一区二区 中文字幕 麻豆| 姬小满流着口水红着脸| 国产门事件在线亚洲日韩欧美 | 久久女婷五月综合色啪小说| 久久久久久无码国产精品中文字幕一级 | 变态另类一区二区三区不卡| 国产一级精品成人大片综合高清不卡| 久久久精品免| 國產97視頻人人做人人愛| 亞洲國產歐美在線觀看片不卡| 日本黄色逼逼图片视频网站| 国产高清不卡午夜福利| 免费av在线观看网站| 国产精品第2页| 日韩AV网站免费在线观看| 亚洲无码999性爱视频| 日韩欧美电影黄色网| 丰满少妇做爰特黄大片一区二区| 日韩激情精品久久久一区二区| 聚会的目的在线观看| 91苏州晶体有限公司ios| 日本免费a级片一区二区三区| 国产你懂的在线观看| 免费?级毛片18禁网站免费| 18禁无遮挡污污污亚洲一区二区 | 成人漫画av在线免费| 亚洲未成18禁止进| 日本不卡視頻一區二區三區| 亚洲 少妇 不卡小视频| 国产翘臀美女XX00后进式在线观看| 欧美亚洲国产一区在线观看99国产黄色視頻网站 | 日韩精品中文高清一区| 国产精品系列不卡视频免费观看| 天堂影院av在线播放不卡| 亚洲欧美综合在线专区| 欧美人与动zooz在线| 亚洲成年在线观看免费漫| 无码在线免费视频| 姝姝窝人体www聚色窝| 亚洲五矿砖码砖区2023在线| 午夜在线视频一区二区三区| 亚洲午夜欧美理论| 正在播放和哺乳期妇女做爰| 国产自偷自线视频在线观看| 国产一区三区精品| 久久精品99久久国产| 了解最新欧美日韩另类国产| 特级婬片女子免费高清视频| 精品码人妻中文无码一区二区| 亚洲色图欧美另类国产| 日韩妓女精品视频播放网站| 甜美人妻出轨中文字幕| 免费网站黄页4188| 99精品国产99久久97| 午夜福利大片亚洲一区| 玖玖九在线热视频| 国产成人免费不卡在线观看| 影音先锋男人看片av资源网在线| 小黄鸭视频app下载| 亚洲不卡一区二区中文在线| 免费?级毛片18禁网站免费| 国产午夜无码精品免费看动漫| 欧美重囗味sm群虐视频| 亚洲一区二区三区美女视频| 欧美性视频video精品| 午夜精品久久久久久99热软件| 亚洲日产乱码天堂| 亚洲色在线一区二区三区| 国产精选大秀一区二区| 亚洲精品大尺码在线观看| 老色鬼在线视频| 亚洲?V无码乱码国产精品FC2| 中文字幕亚洲无码高清专区| 国产一级精品成人大片综合高清不卡| 亚洲国产日韩精品成人网| 一本一道高清无码中午字幕| 手机中文AV不卡| 日本va天堂中文字幕人妻视频| 日本中文字幕乱码在线高清| 性爱国产精品福利在线| 在线不卡福利| 国产精品无码中文图集| A级男女性高爱潮试看| 亚洲产国偷v产偷v自拍一区| 人妻三级日本香港三级极99 | 比比东开襟乳液狂飙网站| 人妻在线97视频| 无遮挡午夜男女xx0o免费| 国产毛卡片在线观看| 天天干天天色综合网| 久久青草免费线观最新| 91精品天堂福利在线观看漫画| 亚洲热在线视频| 亚洲AV无码片一区二区三区无码| 国产欧美亚洲色图| 亚洲欧美综合国产高清视频| av这里只有精品| 年轻女教师的滋味8| 国产日韩欧美二区每日更新| 成人午夜视频免费看欧美| 男女午夜免费爽爽爽试看在线| 蜜芽永不失联2023| 国产成人高清无码在线| 欧美重囗味sm群虐视频| 亚洲欧美日韩一区二区91 | 国产在线视频网址你懂的| 青青国欧美色欧美亚洲另类二区图片 | 亚热在线免费视频大全| 国产公与妇仑乱免费无码| 翘臀后进少妇大白嫩屁股 | 日本亚洲色大成网站www男男| 国产翘臀美女XX00后进式在线观看 | 91视频APP污片下载| 韩国精品久久一区二区三区| 日韩AV中文无码高清综合| 精品在线一区二区三区精品在线| 午夜国产精品成人| 五月成人深爱激情网| 亚洲国产一区二区三区99| 国产爆乳一区不卡在线| 亚洲国产精品毛片一区| 男女啪啪做爰高潮全过有多重意思| 成人久久精品一区| 无码Aⅴ视频在播放| 日毛片涩涩在线A天堂| 國產亞洲精品精品2020| 国产精品久久一级C片| 特级婬片女子免费高清视频| 国产v视频在线观看视频| 国产成人精品A级毛片在线看| 国产成人精品免费看在线播放| ?V无码无在线观看免费| 国产精品成人av免费观看| 嫩模酒店群交一区二区| 国产女在线视频播放系列| 国产三级在线网址| 久久精品国产精品九九99| 多人群P刺激交换在线观看| 日韩精品亚洲成本人专区| 国产精品国产三级囯快看| 九九免费国产肛交一区| 久久综合精品无码一区| 久久久久久综合| 亚洲欧美熟妇另类| 办公室秘书娇喘呻吟在线视频| 日本高清视频ww153色| 国产成人无码免费看片软件| 欧美国产一二三区| 99在线精品视频免费观看视频| 欧美巨波霸乳影院| 久久久国产精亚州aⅴ哟哟哟| 成人高潮喷水无码| 亚洲高清一二三四区| 视频一区亚洲视频无码大全亚洲视频一区制服| 端庄美艳人妻教师的沉沦| 免费少妇精品无码视频| 精品伊人久久久久7777人| 国产欧美综合在线男人的天堂| av女优在线二区| 国产日本欧美女人视频| 制服欧美国产在线第一页| 国产成人精品免费在线| 久久综合九色综合77| 忘忧草视频在线观看直播| 国产男女国产乱子伦视频在线播放| 丁香六月五月激情久久| 黑人巨大精品欧美一区二区男同性恋| 国产三级无码自拍iz| 国产亚洲精品无码成人九色| 亚洲成人毛片av| 人妻三级日本香港三级极99| 日韩精品一区二区二色欲| 黄色国产精品一区| 亚洲av永久无码精品尤物久久| 精品久久一区二区不卡欧美日韩| 豆奶成人版软件| 欧美日韩国产免费区二区三区 | 国内精品久久第二页| 嗯啊轻点视频在线观看| 久久亚洲精品免费观看| 国产一区二区三区精品在线| 国产三级在线网址| 精品国产香蕉在线播出| 骚货啪啪视频| 欧美最新免费一区| 一本之道无码亚洲道久久| 国产韩国日本一区二区| 一道av无码无卡| 野花日本手机观看大全免费3| 成人一区国产精品成人| 欧美大胆性爱在线| 国产无码午夜不卡| 亚洲国产精品成人网址| 国产短视频另类视频免费| 天天躁日日躁AAAA视频| 产精品啪啪一区| 日本一区色能看的一级片| 日韩无码啪啪视频| 天天躁天天碰天天看| 亚洲欧美激情gif动态图片区| 欧美精品国产中文字幕| 久久影院毛片一区二区| 午夜福利一区二区在线成人| 免费看男阳茎进女阳道试看| 欧美黑人巨大巨粗性AAAA| 偷国产乱人伦偷精品视频香蕉| 囯产精品视频一区二区三区99| 色欲av伊人久久大香线焦影院| 亚洲国产中文黄色成年人| 亚洲国产精品毛片一区| 亚洲av无码不卡国产精品| 性爱国产精品福利在线| 亚洲中文字幕一区二区三区在线看| 久久久精品国产亚洲未满成18免费网站 | 国产三级片视频自拍| 精品无码一区二区三区不卡| 日本一級片黃色一級片| 超碰在线人人爽| 天天翘天天射男人影院| 亚洲国产小电影在线观看高清 | 人妻aⅴ中文字幕无码| 中文字幕丝袜无码一区二区| 人妻av无码系列专区首页| 欧美视频偷窥自拍视频| 成年无码av片在线无缓冲| 乡野欲潮:绝色村妇| 国产超碰人人做人人爽ā大片| 大香伊蕉在人线国产av| 久久国产另类第一| 手机看片免费国产| 欧美成人一区二区三区婷婷| 猛男gvgayfreemuscle最新国产三级久久| 东京热av网一区二区三区| 国产一级无码片在线播放| 一道av无码无卡| 又爽又高潮的免费视频| 日韩少妇无码内射| 老师扒开她的黑森林让我添| 黄网一区二区视频区| 日本乱中文字幕系列下载| 成人免费av中文字幕| 日本亚洲欧洲精品天堂免费| 午夜一区二区三区三区| 婷婷丁香中文在线综合一区二区| 韩国精品三级bd高清中字| 国产超碰保健护理私密处| 国产不卡一卡2卡三卡4卡乱码| 国产午夜亚洲一区| 精品丝袜人妻久久久久久| 日本高清视频ww153色| 女生自慰网站| 制服丝袜亚洲中文在线观看| 欧美精品videossex欧美激| 蜜桃视频APP色版下载| 私密粉嫩多久做一下| 国产精品国产a级毛片| 色欲悠久久久久综合网日本| 了解最新欧美日韩另类国产| 欧美一级r片内射a| 日本免费一区二区三区四区五六区| 深夜av毛片一区二区三区| 97日本岛国动作片免费观看| 日本一卡二卡三新区| 国产精品自产拍在线观看aⅴ| 污福利网站在线观看| 黄av毛片在线观看| 色欲悠久久久久综合网日本| 国产成人不卡| 人妻网站人妻熟妇网站| 三级精品在线观看| 亚洲自拍欧美另类图片| 亚洲日韩色少妇无码播放明星| 99国产精品自拍| 小柔在舞蹈室被c到高潮3| 人人超碰字幕手机版| 色综合网日本久久| 日韩性动漫免费视频网站| 日本亚洲一卡区二卡区| 女人被狂躁c到高潮喷水| 中文字人妻中文| 国产av日韩a∨亚洲av麻豆| 日本伦奷人妻一区二区电影共| 欧美区亚洲区日韩制服| 久久性久久性久久久爽| 亚洲最大的成人网| 国产成人亚洲欧综合| 色色婷婷五狠狠久| 国内精品国产成人三级| 某机关少妇下班酒店在线播放| 日本亚洲色图视频| 成人亚瑟免费视频在线| 91久久精品日日躁夜夜躁国产| 欧美激情性五月激情| 天天操天天添| 老熟妇女免费资源站| 中文无码av制服丝袜| 亚洲毛片视频一级| 久久亚洲精品国产美女毛片| 真实国产抽搐高潮露脸在线观看| 日韩电影久久影院| 国产99在线 | 中文| 中文字幕日韩高清版毛片| 日韩中字在线| 亚州av永远无码精品| 在线观看亚洲免费视频| 久久国产亚洲日韩欧美精品| 91精品一区二区久久| 久久久精品免| 西西裸体午夜福利视频| 中日韩丝袜无码AV一区二区三区| 56uuu中文字幕一及| 偷柏自拍亚洲综合在线| 亚洲色图欧美另类国产| 老太熟妇性bbwbbwbbw| 2019男人手机天堂2020| 99国产精品自拍| 欧美一级特黄A大片| 加勒比av不卡免费播放器| 久久午夜无码鲁丝片午夜精| 亚洲人成无码WWW久久小尤奈| 亚洲大胆A级视频| 日韩高清在线中文字幕一| 亚洲午夜强奸一级网站| 天天综合久久综合电影网| 国产成人精品人妻无码| 精品久久网站免费| 国产一区二区成人久久| 老师扒开她的黑森林让我添| 巜被按摩师按摩并做爰| 黄视频白浆喷水在线| 精品国产一区二区亚州人成毛片| 国内成人自拍视频| 久久少妇无码精品| 久久久久久AV无码免费网站H | 婷婷五月在线视频| 国内精品视频兔费一区二区 | 超碰97在线观看不卡二区| 亚洲狠狠网站色噜噜| 国产日韩欧美综合视频专区| 制服丝袜亚洲中文在线观看| 日韩美精品又色又爽中文| 最新欧洲免费av| 国产av一区2区三区| 日韩欧美亚洲1区2区| 嗯啊轻点视频在线观看| 久久99精品国产麻豆| 了解最新香蕉啪视频在线观看| 日本精品视频| 人妻无码久久综合加勒比 | 诱人的女邻居在线观看| 国产一区二区日韩在线| 逼操一区二区三区| 免费观看经典三级在线视频| а√新版天堂资源中文8| 超黄片视频下载| 性开放的欧美大片黑白配| 久久国产精品天海翼av| 亚久久精品国产2020观看福利| 一级婬片试看15分钟水多| 蜜桃羞羞小视频在线观看| 小草在线观看免费高清视频| 亚洲熟妇无码成人a片| 天天去天天看天天爽| 国产精品不卡a∨在线观看资讯| 中文字幕中文字幕在线中111 | 午夜影院福利免费| 了解最新久久久久久亚洲精品成人| 国产亚洲精品久久久久久传媒 | 无遮挡很爽很污很黄的网站| 国产福利在线小视频| 亚洲爱婷婷色婷婷丁香五| 亚洲性无码av中文字幕| 国产女在线视频播放系列| 性色av无码专区做爱A天堂| 国产高潮流白浆喷水免费| 波兰r级《欲燃》观看| 久久午夜网鲁丝片香蕉| 国产美女www爽爽爽爽软件| 精品无码一区二区三区不卡| 高清国产在线拍揄自揄视频| 成色一区二区影视在线观看| 日韩欧美丝袜一区| 黄色网页综合网站| 久久国产精品一区免费下载 | 极品美女亚洲网站在线观看| 亚洲日韩色少妇无码播放明星| 最近最新中文字幕无码专区 | 中日韩丝袜无码AV一区二区三区 | \\\91国内自产精华天堂| 精品码人妻中文无码一区二区| 国产成人亚洲精品91专区高清| 国产精品99久久久久久一二区| 秋霞2016午夜限制电影在线| 91久久九九亚洲一区二区| 欧美v亚洲vrihanv在线| 亚洲日韩欧美一区二区三区最新内容 | 日本一級片黃色一級片| 亚洲国产嫩草影院免费看| 岳啊灬啊别停灬啊灬快| 成色一区二区影视在线观看| 欧美精品 亚洲日韩亚洲一级片在线观看 | 色老头精品午夜福利视频| 亞洲sss綜合天堂久久久| 国产AV日韩AⅤ亚洲AV无码馆| 中文字幕免费无码久久99| 欧美亚洲日韩中文| aa一级高清无码| 欧美综合亚洲首页| 国产一区在线不卡| 欧美日韩亚洲爱爱| 四虎黄网女人射精| 亚洲1级毛片视频| 亚洲国产小电影在线观看高清| 一区二区 中文字幕 麻豆| 亚洲黄色毛片大全| 婷婷五月精品综合一区| 亚洲一区 欧美二区| 久久一中国道色综合久久| 亚洲精选男人夜晚| 亚洲熟妇AV乱码在线| 国产成人亚洲欧综合| 亚洲欧美激情gif动态图片区| 欧美中文字幕在线网址| 午夜激情久久综合啪| 蜜桃AV网站在线观看| 福利美剧在线影院在线高清免费观看| 久久国精产品一区一区| 男女性高爱潮在线观看| 亚洲欧美国产日韩字幕| 极品美女亚洲网站在线观看| 深夜视频在线| 久久九九免費視頻| 91丨国产丨白浆秘再婚| 66亚洲丁香婷婷综合久久| 久久综合亚洲中文字幕| 人人超碰字幕手机版| 成人亚瑟免费视频在线| 四虎国产精品久久| 久操久操久操日韩1| 高潮伊人伊人久久超清| 免费无码国产在线观看AV| 成人区免费AV片在线观看| 欧洲亚洲第一区久久久| 在线不卡福利| 最新国产精品拍自在线播放桃| 国产美女丝袜在线观看| 国产成人久久蜜一区二区| 了解最新日韩草逼视频| 国语少妇高潮对白在线中文| 欧美日韩一卡2卡3卡4卡无卡| 香蕉啪啪网站免费| 萌白酱苍穹女仆喷水在线观看| 国产91最新欧美在线| 扒开奶罩吃奶头gif动态视频 | 二级毛片视频| 国产精品久久一区不卡| 欧美日韩中文三级一区| 国产亚洲成人精品91| 国产成人亚洲欧综合| 亚洲成人国产综合一区| 久操久操久操日韩1| 国产一区二区三区精品在线| 国产手机新视频在线观看| 真实国产强奸妇女视频| 国产一级电影在线| 亚洲人成在久久综合网站| 日韩电影久久影院| 高清无码免费成a人片| 本首综合久久久| 久久国产麻豆网| 欧美成综合在线| 国产精品一级毛片无码老人| 亚洲AⅤ乱码一区二区| 国产成人免费不卡在线观看| 欧美国产一二三区| 亚洲观看av网址| 国产黄色a三级三级看三级| 免费看又黄又粗又硬又爽视频| 亚洲AV无码专区国产不卡顿| 久久久久人人超国产精品| 日本动漫级中文无| 美国最新免费a级毛片| 在线观看+中文字幕| 久久黄色片视频日本一区二区三区| 亚洲av永久无码精品一不卡| 欧美一区二区三区日韩国产 | 精品无码免费成a人片| 18精品免费1区2| 欧美性色黄大片www| 第一久久亚洲| 国产午夜亚洲一区| 国产精品午夜宅男| 国产无码毛片不卡的| 欧美日本国产福利| 国产又粗又大又色网网视频| 國產成人綜合久久亞洲精品| 国产一区二区香蕉| 欧美国产日产综合精品| 国产欧美va欧美v| 嫩草影院99av网站| 动漫爆乳H动漫无遮挡尤物视频 | 欧美日韩在线手机一区二区 | 黄网站免费现在看| 免费的成年av久网站| 亚洲无码一区二区三区动漫一区二区 | 无码a级毛片无码中文字幕| 天堂在\/线中文在线资源| 好男人手机在线观看一区二区| yellow日本高清在线| 爱爱帝国综合社区精品| 最新国产成人A∨综合无码| 少妇午夜精品福利一区二区三区蜜桃| 人妻三级日本香港三级极99 | 神马天堂我不卡影院在线播放| 中国帅气体育生gary演员表| 公与媳妻hd中文在线观看| 国产午夜毛片一区二区三区| 久久亚洲激情综合网| 成人免费国产不卡的视频| dvd影片在线观看| 国产一级性爱亚洲欧美激情| 欧美日韩美女视频| 国产美女a级黄片免费黄片a级| 在线亚洲欧美性天天影院| 国产成人精品A级毛片在线看| a片多多免费观看高清影经典版 | 久久国产一飘飘网| 日韩精品视频在线观看看| 伊人久久大香线蕉资源| 久久综合亚洲中文字幕| 博人传黑土腿法娴熟| 亚洲国产中文黄色成年人| 紧身女教师冲田杏梨在线观看| 亚洲免费能看的黄片| 中文字幕午夜精品一区二区| 91在线手机精品超级观看| 日本亚洲色图视频| 精品无码免费成a人片| 手机高清国产无码看片| 欧美一级r片内射a| 黄色一级毛片国产成人A∨激情视频厨房| 四虎国产精品永久免费网址 | 男男18禁网站gay| 任你躁久久久久久妇女AV| 国产性做爰片免费视频在线观看| 亚洲人成网站18禁止中文字幕| 天堂网www中文在线资源一区二区三区 | 中国精品毛片在线免费观看| 日韩一区二区三区∧VA片| 俄罗斯少妇一级毛片| 91成年黄网站18禁免费观看| 高潮videossex潮喷另类| 浪货你那里又湿又紧h| 亚洲日韩高清成人AⅤ在线网站| 91精品中综合久久久婷婷互動交流| 成品人短视频推荐app| 一区二区久久国产精品| 亚洲日韩精品成人无码专区AV| 日韩丝袜制服亚洲精品| 99精品视频只有精品高清17| 好吊妞在线新免费视频观看| 亚洲国产精品sss在线观看?v| 欧美日一级片| 在线播放国产无码制服丝袜| 一本加勒比HEZYO美痴女| 欧美日韩德国在线观看| 在线看视频国产888| 黄色软件一区网站| 色狠狠桃花综合| 无码专区免费视频在线播放| 免费一级欧美特黄特色大片| 本免费AV无码专区一区| 欧美一区二区三区在线观看网站| 国产69精品久久久久777国产真实偷乱视频 | 国产成人高清特级毛片| 色欲人妻综合AAAAA网| 国国产精品丝袜久久久久久| 久久极品视频| 久久九九免費視頻| 中文字幕日韩高清版毛片| 夜里禁止用的十大应用| 国产成人v爽在线免播放观看| 亚洲综合另类小说色区| 日韩美女自卫慰黄网站| 久久综合网色—综合色88| 无码精品一区二区三区潘金莲嫚娜| 国内明星热门无码视频| 麻豆久久久精品一区| 大胸爆乳喷奶水WWW免费视频| 天天躁久久夜夜躁| 亚洲国语对白一级视频| 2022亚洲国产精品拍青青草原| 日韩精品亚洲成本人专区 | 扒开奶罩吃奶头gif动态视频| 国产日韩欧美在视频一区二区久久 | 亚洲va中文字幕亚洲爆乳无码专区 | 亚洲女同一区二区中文字幕| 在线不卡福利| 亚州av永远无码精品| 日韩精品一区二区三区四区亚| 久久久精品日本一區二區三區| 惠民福利日韩欧美一区二区精品久久| 国产乱淫精品一区二区三区毛片 | k久久夜色精品国产网站| 欧美重囗味sm群虐视频| 日韩欧美另类丝袜| 色五月激情五月亚洲综合考虑| 国产卡1卡2卡三卡精品| 日韩成人免费久草资源网| 熟女人妻波多野结衣在线观看| 精品久久网站免费| 91免费 无码 日产在线观看| 亚洲精品一区二区三区无码| 曰韩一级成人网站| 亚州欧州一二三四五区| 国产一区二区三区在线精品| 久久一中国道色综合久久| 欧美激情性五月激情| 中文字幕在线亚洲二区| 国产精品福利无圣光在线一区| 国偷自产福利一区在线| 精品久久久久久无码一区二区 | 日毛片涩涩在线A天堂| 国偷自产高清无码一级毛片 | 国产门事件在线亚洲日韩欧美| 亚洲综合激情一区播放| 欧美日韩国产在线播放| 国产成人高清特级毛片| 日本a级在线国产区二区| 久久不卡人妻无码| 最近中文字幕大全在线电影视频| 一区二区三区在线精品重口| 亚洲日韩国产精品| 国产亚洲AV片天天在线观看| 亚洲精品国产精品乱码涩涩| 韩国av在线一区| 人妻一区二区三区四区兽交| 我要看免费的一级毛片| 无遮挡无码一级毛片免费看| 国产大学生无套露脸在线视频| 伊人五月在线| 亚洲三级成人| 久久久人妻少妇一区二区三区 | 国产精选视频亚洲综合伦理| 超碰人人看人人玩| 网址你懂的在线观看日本| 老色鬼在线视频| 可以看的欧美变态一区网站| 欧美日韩另类国产在线视频| аⅴbt天堂中文在线| 热播综艺动漫高潮迭起!| 国产午夜福利综合网| 2021最新热播欧美极品| www亚洲天堂网站.con| 经典国产二区亚洲欧美视频| 二级毛片全部| 无码有码国产日韩制服| 亚洲免费能看的黄片| 日韩国产欧美成人一区二区影院| 经典国产二区亚洲欧美视频| 日韩午夜理论中文字幕毛片| 国产免费观看黄AV片麻豆| 日本19禁啪啪无遮挡免费动图| 国产丝袜在线精品丝袜动漫板| 未成18年不能看的视频| 美女污在线观看免费网站| 偷国产乱人伦偷精品视频香蕉| 久久青草免费线观最新| 国产日韩欧美在视频一区二区久久| 大肉大捧一进一出好爽视频mba| 偷看农村妇女牲交| 成人性无码专区免费视频| 97aⅤ超碰亚洲精品少妇| 午夜激情久久综合啪| 玛雅视频精品小视频国产| 欧美国产一二三区| 浪货你那里又湿又紧h| 黄色欧美在线视频| 欧美人与动zooz在线| 色欲av伊人久久大香线焦影院| 伊人久久大香线蕉资源| 日韩精选AV无码| 无遮挡午夜男女xx0o免费| 视频一区日韩无码日韩有码| 亚洲精品一区二区三区在线观看| chinese真实伦对白露脸| 精品视频在线观看日韩| 亚洲日韩性感自慰| 一级性爱免费看| 午夜国产成人AV电影在线观看| 岳脱得精光让我挺进去视频| 国内偷拍 第一页| 久色频网站在线一道本亚洲| (愛妃精選)午夜激情经典国产福利| 成人在线视频快插| 国产伊人啪啪亚洲无码二级| 欧美巨波霸乳影院| 欧美在线天堂色欲| 亚洲影视乱伦综合| 亚洲无码999性爱视频 | 国产美女高清一级a在线| 神马影院午夜在线| 成年女人下边毛片免费观看| 中文字幕无亚洲欧洲日韩| 国产成人亚洲欧综合| 国产精彩精彩AV对白| 丰满少妇做爰特黄大片一区二区 | 日韩一区二区黄色一级片| 亚洲美女乱码| 九久久波多野结衣| 欧美成人一区二区三区婷婷| 国产精品卡通动漫蜜臀av| 东京热av网一区二区三区| 999久久亚洲区区| 国产激情无码在线| 久久久精品免| 亚洲成在人线在线播放器| 神马天堂我不卡影院在线播放| 国产交换夫妇在线中文| 色狠狠色噜噜AV天堂五区消防| 国产无码第一页国产视频在| 三级毛片视频国产| 美丽姑娘在线观看完整版中文| 亚洲第一色欲AV| 精品国产亚洲一区二区三区在| 久久综合亚洲中文字幕| 国产精品久久成人免费观看| 欧美成人午夜大片免费| 国产口爆吞精2020版视频| 国产门事件在线亚洲日韩欧美| (愛妃)国产免费成人久久综合一区| 性色的老年免费视频网站| 亚洲av无码京香无码av| 国产视频亚洲欧美日韩| 专干日本老妇HD| 国产a级毛片色咪味| 国产一区二区成人久久| 欧美 日韩 精品 二区| 国产超a级动作大片中文字幕| 国产高清午夜福利电影| 黄色一级片大美女| 性色福利刺激无码专区| 欧美国产一二三区| 十二以下岁女子毛片免费| 国产一级性爱亚洲一级黄| 国产成人a视频高清在线观看| 国产免费永久AV网址| 成人久久精品一区| 婷婷成人五月综合激情| 亚洲a∨无码一区东京热| 精品午夜影视网科幻电影免费观看全集高清 | 人妻欧美日韩在线| 亚洲免费能看的黄片| 加勒比东洋精品映画防屏蔽 | 无码中文a在线播放国产三级| 日r夜高h操a淫v爽b亚洲| 线观看成人短视频| 青青青国产依人在线观看视频| 高清精品中文字幕| 国产午夜无码AV毛片| 免费在线观看的黄色AV| 自拍偷拍视频二区| 女高中生第一次破—国产av| 成年女人免费视频毛片| 国产真实激情在线观看电影视频| 视频一区亚洲视频无码大全亚洲视频一区制服 | 國產亞洲精品精品2020| 亚洲一区国产精品制服诱惑| 国产精品99久久久久久一二区| 亚洲日本韩国欧美| 4455永久在线观免费看| 亚洲一区二区三区在线麻豆| 国产高清啪啪| 亚洲国产中文黄色成年人| 日日摸夜夜摸狠狠摸中文字幕| 黄视频白浆喷水在线| 国产精品一区二区99久久精品| 激情综合在线亚洲九月天| 欧美日韩亚洲国内综合网俺| 国产卡1卡2卡三卡精品| 一级做a爰片久久毛多水多| 人妻av无码系列专区首页| 亚洲三级成人| av成人在线免费观看| 超碰国产上传免费| 成人无码H在线观看网站| 女邻居掀开短裙让我挺进在线 | 国产亚洲精品久久久久久传媒 | 哺乳期喷奶水视频www| 国产精品一区二区99久久精品| 野花日本手机观看大全免费3| 日韩AV中文无码高清综合| 国产在线精品无码二区欧洲| 日本动漫级中文无| 亚洲精选男人夜晚| 大地资源在线观看视频在线观看 | 国产精品 色哟哟| 日韩淫片一级免费| 欧美日韩另类国产在线视频| 中文字幕无亚洲欧洲日韩| 香蕉视频APP污版下载安装| 91视频九色欧美| аⅴbt天堂中文在线| 最新黑料网独家爆料正能量| 国产精品无码不卡久久性色| 久久国产麻豆网| 久久久久国产精品激情| 精品人妻天天爽天天做| 十二以下岁女子毛片免费| 欧美中文字幕欧美亚洲日韩| 亚洲国产小电影在线观看高清| 91精品天堂福利在线观看漫画| 欧美精品调教一区二区三区| 亚洲一区亚洲二区亚洲三区| 日韩欧美电影黄色网| 成人久久精品一区| 日韩美女自卫慰黄网站| 日韩精选AV无码| 午夜精品久久久久久久第一页下载 | 中文字幕亚洲无码高清专区| 综合网在线视频| 丰满人妻熟妇乱精品视频| 国产美女自拍自慰迅雷| 亚洲自拍欧美另类图片| 亚洲国产精品99久久久久久久| 中文字幕乱码永久免费| 一级不卡毛片| 成人一区国产精品成人| 诱人的女邻居在线观看| 日本日本乱码伦小说| Ⅴa欧美国产在线视频| 99久久精品毛片免费播放高潮不卡| 国产超碰保健护理私密处 | 国产免费青青青在线观看| 国产超碰人人做人人爽ā大片| 污福利网站在线观看| 天堂亚洲日本v?中文字幕| 老湿机69福利区无码| 男人j进女人j啪啪无遮挡电影| 中日韩丝袜无码AV一区二区三区 | 国产欧美另类在线专区| 黄色a级片在线视频| 国产一线天嫩芽草| 亚洲国产一成久久精品 国产成人综合| 日韩国产一级成人黄片av专区在线| 超碰成人在线电影| 亚洲熟妇AV日韩熟妇AV| 亚洲美女乱码| 狠狠色丁香久久婷婷综合蜜芽五| 午夜一区二区三区三区| 亚洲欧美成人综合久久久伊人| 无码有码国产制服日韩91土豆 | 5g国产精品影院天天5g天天爽| 成人久久精品一区| 国产在线视频无码观看| 国产成人精品免费看在线播放| 日本在线欧洲视频一| 五月天中文字幕一区二区| 56uuu中文字幕一及| 91久久精品无码毛片| 日韩精品一区二区三区新区乱码| 男男羞羞视频网站国产| 美女污在线观看免费网站 | 国产真实激情在线观看电影视频| 无码人妻久久| 国产v视频在线观看视频| 一本久久a久久精品綜合夜夜 | 高清中文字幕一区二区三区| 美日欧激情AV大片免费观看| 久久美女人爽女人爽| 欧美日韩亚洲国内综合网俺| 亚洲av乱码免费观看| 国产亚洲精品久久久久久传媒| 99视频在线观看精品视频不卡| 午夜黄色在线观看| 手机版磁力国产中文| 日韩爆乳av少妇无码| 国产乱人伦偷精品视频下| 日本午夜精品视频一区二区| 巜被按摩师按摩并做爰| 伊人精品无码av一区二区三| 亚洲观看av网址| 欧美一级a片免费观看| 久久婷婷国产精品青草网| 综合欧美日韩一区二区国产精品精?v影视| 婷婷五月天在线精品| 黄网站免费现在看| 精品国产精品国产一级| 女生自慰网站| 亚洲国产中文黄色成年人| 日本19禁啪啪无遮挡免费动图| 久久久国产精品高清| 国产91最新欧美在线| 一本加勒比HEZYO美痴女| 午夜视频在线会员国产| 午夜国产成人AV电影在线观看| 亚洲无码久久久久久| 男男18禁网站gay| 日韩专区亚洲综合在线观看免费完整版 | 欧美国产永久免费看片| 国产真实交换在线| 无码精品一区二区三区潘金莲嫚娜| 超碰成人免费福利| 欧美一级性爱视频在线免费看| 国产性做爰片免费视频在线观看 | 日本在线精品a首页正| 91在线免费视频网站| 无码精品一区二区三区潘金莲嫚娜| 伊人精品无码av一区二区久久| 姬小满流着口水红着脸| 精品久久久久久免费看| 免费?级毛片无码?∨中文字幕| 久久久久久综合| 另类av在线亚洲| 国产亚洲精品成人AA片在线播放| 欧美激情网站| 亚洲AV肉丝网站一区二区无码| 无码欧亚熟妇人妻αV在线外遇| 彩虹视频免费资源在线观看| 亚洲国产精品丝袜无码| 日韩人妻一区2区| 成人AA片免费视频毛片| 天堂新版中文在线最新版| 一区二区三区亚洲国产精品视频| 国产精品免费视频久久 | 成人3级视频在线免费观看| 免费看毛片网| ?91久久精品国产性色tv| 日本不卡視頻一區二區三區 | 免费观看国产美女裸体网站| 愛妃為您提供精品国产成人国产在线观看| 无码视频一区=区| 国产成人高清激情视频在线观看| 欧美黄视频免费观看| 亚洲婷婷久久久久久久久| 欧美一级aa片特级黄片| 被三个老头捆着躁我一个爽文| 天天综合久久综合电影网| 国产精品88久久久久久| 久久久久一区视频网| 久久99午夜精品一区人妻| 教官趁她睡着吸允她的花蜜视频| 国产精品一区二区午夜在线观看| 亚洲永久无码日韩毛片精品 | 國產日韓av免費無碼一區二區| 日本三级电影天堂| 欧美一区二区三区四区五区视频| 高潮videossex潮喷另类| 欧美日韩中国产视频| 岛国片夜色影院055| 少妇惨叫毛片亚洲色| 免费?级毛片18禁网站免费| 美女胸又WWW又黄的视频| 亚洲av不卡一区在线| 日韩性动漫免费视频网站| 精选国产911在线播放| 日韩经典在线视频播放一区| 久久综合精品无码一区| 国产成人亚洲精品91专区高清| 兽交另类人妻素人| 男女一级特黄毛片| 宅男在线视频| 日本亚洲色图视频| 精品在线一区二区三区精品在线| 电影专区欧美日韩国产小说| 久久夜黄色无码A级大片| 国产高清午夜福利电影| 色五月婷婷在线观看| 欧美大胆性爱在线| 亚洲av不卡一区在线| 性欧美videofree高清极品| 成人三级视频在线观看完整版| 免费一区二区三区精品性爱视频| 天天影视亚洲伊人| 成人漫画av在线免费| 成年av动漫网站18禁| 精品国产天天在线2019| 蜜桃视频APP色版下载| 麻豆久久久精品一区| 五月婷婷开心综合| 亚洲国产日韩精品成人网| 91视频九色欧美| 在丈前下药侵犯人妻在线| 亚洲av色福利天堂| 国产日韩一区二区视频在线播放| 视频一区亚洲视频无码大全亚洲视频一区制服 | 紧身女教师冲田杏梨在线观看 | 手机看片免费国产| 岳啊灬啊别停灬啊灬快| 性国产孕妇性涩视频| 欧美激情免费观看一区| 日韩欧美黄页在线| jizz老师好多水| 亚洲综合另类区色噜噜98欧美| 国产成人无码精免费视频| 国产精品日本欧美一区二区| 亚洲精品A片久久久久| 日韩精品一区五码久久| 美女淫荡自慰三极黄色| 国产美女久草热| 无码人妻一级毛片免费又粗又硬的 | 国产美女久草热| 国产毛片视频高清毛| 午夜黄色在线观看| 亚洲成人国产综合一区| 国产成色视频在线播放| 本一道波多野结衣AV一区| 亚洲熟妇无码在线播放| 午夜精品久久久久久电影| 99国产免费最新视频| 久久伊人亚洲精品| 日韩在线理伦片免费观看| 欧美一级性爱视频在线免费看| 欧美黑人巨大巨粗性AAAA| 欧美精品黄片在线看| 国产精品一区二区al在线| 久久人爽爽人爽爽?V无码自慰| 国产精选视频亚洲综合伦理| 亚洲成人黄片影院| 国产精品熟女视频sa8| 好舒服快吸我乳视频| 国产成色视频在线播放| 天堂网www中文天堂在线| 亚洲国产精品sss在线观看?v| 日本欧洲亚洲波霸| 中文字幕日本在线视频二区| 日韩小视频网站hq| 日韩精品视频在线观看看| 国产亚洲精品综合成人| www.亚洲成在线小黄书| 日本视频不卡一区二区| 天干天干啦夜天干天天爽动漫| 精品在线观看综合国产| 亚洲天堂性爱视频亚洲激情四射婷婷 | 能在线上直接观看的AV片| 久久精品AV一区二区免费| 福利美剧在线影院在线高清免费观看| 葫芦娃app旧版本下载| 麻豆国产亚洲精品视频大全| 久久网免费视频| 邻居丰满的奶水在线HD| 国产精品秘入口18禁麻豆免会员| 在线综合亚洲欧洲综合网站| 午夜福利真人一级毛片| 香蕉啪啪网站免费| 美丽姑娘在线观看完整版中文 | 无码热搜电影先生免费全集在线观看| 在线看视频国产888| 污福利网站在线观看| 久久久一区二区三区在线观看| 萌白酱苍穹女仆喷水在线观看| 天堂资源中文www| 黄色A级毛片性高潮久久久久久 | 亚洲 少妇 不卡小视频| av免费网站不卡观看在线观看| 98在线视频免费噜噜噜国产| 香蕉啪啪网站免费| 久久久精品日本一區二區三區 | 欧美日韩国产精品激情| 一级a一级a爱片免费免免多人| 偷国产乱人伦偷精品视频香蕉| 99久久久国产高清| 香蕉啪啪网站免费| 女人骚逼被鸡巴插得流水软件| 三级经典在线观看| 果冻传媒2021精品入口软件| 国产口爆吞精2020版视频| 四虎国产精品久久| 天天拍夜夜添久久精品免费| 国产狂喷潮视频免费观看| 免费无码av免费中文字幕| 精品国产高清在线观看| 内射人妻无码色a| 亲爱的爸爸中文字幕| 欧美一级r片内射a| 国产一级电影在线| 国产高清在线?视频大全| 在线欧美视频| 久久天天躁夜夜躁狠狠85麻豆| 免费看又黄又粗又硬又爽视频| 日本精品视频| 无遮挡粉嫩泬久久久久| 日韩A片无码毛片免费看小说| 黄色一级毛片国产成人A∨激情视频厨房 | 老熟女奶头好大呀| 惠民福利曰韩无码AV片免费播放| 国产精品激情久久久久久| 日韩一区二区三区∧VA片| 亚洲毛片视频一级| 日韩精品国产欧美激情在线| 2021国产91精品对白露脸| 欧美一级AAAAA片在线观看| 午夜三级一区二区三区| 色戒电影剧免费观看| 国产成人高清无码在线| 亚洲精品自产拍在线观看91| 午夜精品视频免费看| 国产精彩精彩AV对白| 亚洲天堂视频免费看| 把跳d放在里面坐公交车视频| 日本特黄夜夜爽大片| 国产精品一区21p| 日韓在線va中文字幕| 久久综合九色综合77| 高清一区高清二区视频| 91久久精品无码毛片| 博人传黑土腿法娴熟| 国产成人深夜福利网站| 亚洲无码激情视频在线观看 | 人妻系列无码专区在线视频| 国产欧美一区二区三区沐| 国产精品宅男宅女在线观看擁有海量影視資源 | 自拍偷拍视频二区| 哔哩哔哩漫画在线漫画免费观看| 亚洲自拍欧美另类图片| 亚洲av成人男人的天堂网| 国产精品99精品免费无码视频| 加勒比av不卡免费播放器| 亚洲日韩在线不卡| 91精品国产综合久久不国产大片 | 亚洲欧美经典国产| 好爽好紧好湿的免费视频国产| 影音先锋男人看片av资源网在线| 中字无码在线免费观看| 98在线视频免费噜噜噜国产| 国产午夜亚洲精| 丝袜美腿高跟国产极品老师| 一区二区 中文字幕 麻豆| 亚洲精品高清毛片| 在线天堂欧美一区二区成人| 国产老头吃嫩草magnet| 超碰天天躁日日躁狠狠躁| 国产手机新视频在线观看| jizz老师好多水| 日韩黄片特级一区二区三区| 欧美大胆性爱在线| 又色又爽又黄国产网页| 东京热av网一区二区三区| 国内精品久久久久久久久久| 美女日批一区二区三区| 成人三级视频在线观看完整版| 欧美性色黄大片www| 免费看片无码视频免费| av女优在线二区| 加勒比东洋精品映画防屏蔽| 精品久久久久久免费看| 国产精品国产三级囯快看| 久久国产一级av| 在线观看欧美日韩三级| 日韩精品一区二区三区新区乱码 | 豆奶成人版软件| 亚洲人成在线影院| 亚洲欧美自拍一区精品麻豆| 一本一道av无码中文字幕| 99久久婷婷国产综合亚| 亚洲成av人电影在线无码| 亚洲国产综合久久| 神马影院午夜在线| 國產97視頻人人做人人愛| 欧美一级aa片特级黄片| 99热点高清无码中文字幕| 久久AV无码免费看大片| 韩国三级无码在线观看 | 在线综合亚洲欧洲综合网站| 亚洲最新性感少妇av片| 成人性无码专区免费视频| 自拍偷在线拍每日更新| 黄色毛片色天堂app| 日韩成人欧美在线视频| 特级做?爰片毛片免费看无码| 亚洲永久精品国产导航| 日本高清仑乱少| 久久国产麻豆网| 亚欧三区在线观看| 播放一级毛片真人| 色天天久久综合狠狠综合天天 | 91苏州晶体有限公司ios| 久久久久国内免费精品| 久久水蜜桃亚洲?V无码精品麻豆| 天堂新版中文在线最新版| 人人妻人人爽人人干| 精品少妇裸体无码av专区| 香蕉婷婷日韩精品| 日韩精品在线第一页| 午夜一级欧美成年大片在线| 精品久久网站免费| 久久国产精品一区免费下载| 日韩AV网站免费在线观看| www.亚洲成在线小黄书| 資源久国产乱子精品| 欧美成a人片免费看久久| 国产真实激情在线观看电影视频| 国产一区二区在线看片免费| 日韩精品视频在线观看看| 国产激情无码一区二区视频麻豆| 自拍偷拍视频二区| 国产91最新欧美在线| 日韩在线精品首页免费观看| 女人骚逼被鸡巴插得流水软件| 国产极品高颜值露脸女主播 | 亚洲成av人电影在线无码| 精品国产私拍在线| 无码国产精品免费看| 手机看黄色片久久| 这里只有精品久久| 精品少妇裸体无码av专区| 全国aⅤ一区二区高清在线观看| 国内精品一区二区视频在线 | 丰满人妻熟妇乱精品视频| 久久精品+成人+欧美大片| 人妻无码少妇一区二区三区| 亚洲依依成人综合在线网址| 五色视频精品全部免费| 久久国产高清免费| 精品国产丝袜一区二区| 狠狠色丁香久久婷婷综合蜜芽五| 丁香五月天天综合亚洲| 国产午夜亚洲精品国产成人| 国产麻豆影院在线观看| 国产美女丝袜在线观看| 国产自在线拍视频国产gav| 无码精品人成在线观看| 精品人妻无码一区二区三区99 | 欧美一级aa片特级黄片| 免费无码国产在线观看AV| 韩国精品三级bd高清中字| AⅤ精品一区二区在线观看| 亚洲精品美女久久久久999| 国产激情无码在线| 高清无码不卡在线DvD| 国产一级无码片在线播放| 日本不卡一区二区在线观看| 18禁无码无无遮挡永久免费| 成人自慰网站免费观看| 午夜无码影视福利导航| 亚洲精品A中文字幕乱码| 国产精品一区二区日| 男女一级特黄毛片| 欧美性生交大片免费网| 亚洲?V无码乱码国产精品FC2| 国产在线视频无码观看| A片中文字幕在线播放 | 中文无遮挡好黄h肉视频在线视频 久久综合九色综合久桃花网 | 被三个老头捆着躁我一个爽文| 天天干夜夜干一……| 国产精品无码?v免费| 日本亚洲欧洲精品天堂免费| 日韩永久在线观看| 久久亚洲a∨永久无码精品| 久久精品中文字幕人妻| 国产激情无码一区二区视频麻豆| 韩国一级做a爰片性色毛片| 色天天久久综合狠狠综合天天| 高清无码在线观看视频国产无码内射 | 国产精品亚洲一区二区三区妖精| 日韩国产欧美成人一区二区影院| 偷拍视频国内精品| 日韩岛国AV一区二区三区免费| 亚洲国产精品sss在线观看?v| 在线观看污国产精品| 亚洲一级无码在线| 成人无码精品免费视频在线观看| 亚洲精品综合欧美精品综合| 东京热av网一区二区三区| 青青草国产手机观线| 亚洲欧美秘一区二区| 久久久久久久久国产精品免费综合| 亚洲熟妇无码在线播放| 高清无码免费成a人片| 永久在线精品免费视频观看| 色天天久久综合狠狠综合天天| 国产免费永久AV网址| 亚洲毛片动漫无码不卡| 国产大学生无套露脸在线视频| 极品熟妇大蝴蝶20p无套人妻| 免费网站黄页4188| 亚洲a∨无码一区东京热| 亚洲依依成人综合在线网址| 又长又硬又粗一区二区三区 | 国产一级免费试看| 国产一区二区三区久久精品小说 | 午夜福利av日韩| 如何免费在线观看欧黄片| 欧美一级不卡a级| 门卫老头吮她的花蒂的主演是谁| av免费在线看的网站| 亚洲日韩欧美内射姐弟| 久久久精品视频三级| 日韩无砖专区一中文字目| 亚洲欧美中文制服日韩在线观看| 色欲亚洲āV无码久久精品成人| 精品久久久久久无码一区二区 | 亚洲无码久久久久久| 乡下偷伦国产偷v| 91抖音成人短视频APP| 嗯 好爽 好多水 好大视频| 大陆日韩欧美经典视频一区| 亚洲欧美秘一区二区| 日韓在線二區| 嫩草影院99av网站| 国内精品大陆自线在拍2020| 色综合网日本久久| 亚洲国产精品成人AV在线| 人妻忍着娇喘被中进中出视频| 哪些国产人妖有视频网站| 午夜精品一区二区三区免费| 一级婬片试看15分钟水多| 午夜在线视频一区二区三区| 久久精品国产精品最熱門最齊全的電影!| 亚洲国产资源| 一本av无码人妻出轨| 久久久一区二区三区在线观看| 亚洲码国产精品性色在线| 免费网禁呦萝资源网在线观看| 亚洲AV无码成人网站WWW| 男女18禁啪啪无遮挡激| 国产日韩欧美在线成人网| 国产精选视频亚洲综合伦理| 网友自拍亚洲无码另类| 国产成熟妇女性视频电影| 欧美日韩亚洲国产制服| 另类av在线亚洲| 成人无码做爰www欧美粉嫩| 男女午夜免费爽爽爽试看在线| 99久久婷婷国产综合亚| 看免费的无码区特aa毛片a0| 日韩黄片特级一区二区三区| 无码专区免费视频在线播放| 成人久久a片一区无码束缚 | 高潮一级视频电影| 一级黄片二级黄片三级黄片| 99久久亚洲午夜福利视频| 亚洲欧洲国产精品| 锕锕锕锕锕锕锕好大污的动画 | 18禁无码无无遮挡永久免费| 麻豆天美传媒av国产剧情| 精品人妻一区二区久久| 无码专区免费视频在线播放| 日本三级在线不卡一区二区 | 亚洲人成无码WWW久久小尤奈| 久久久久国产乱码久久| 在线观看日韩视频| 成人在线视频快插| 亚洲老妇久久| 女人被狂躁c到高潮喷水| 2019午夜福利1000合集92| 色天堂视频在线免费观看污| 欧美日韩德国在线观看| 国产日韩欧美在线成人网| 国产精品日本欧美一区二区| 亚洲成人av色婷婷| 日本一卡二卡三新区| 国产美女自拍自慰迅雷| 国产精品自在拍首页| 国产男女猛烈无遮挡免费网站| 欧美成人系列在线| 美丽姑娘在线观看完整版中文| 久久五月黄色| 成人黄色三级毛片在线观看| 奇米精品一区二区三区在线不卡| 九九免费国产肛交一区| 特级婬片国产高清| 在线极品无码| 久久性久久性久久久爽| 国产自偷在线拍精品热| 私人毛片免费高清影视院| 黄色高清无码专区| 日韩欧美另类丝袜| 亚洲丝袜成人在线| 视频一区二区三区四区在线观看| 亚洲丝袜成人在线| 在线亚洲欧美性天天影院| 无码人妻久久| 国产丰满熟女综合浪潮AV| 99久久久无码国产精品69| 黄片视频大全久久久| 成人高潮喷水无码| 大地资源在线观看视频在线观看 | 黄色软件app大全免费下载2024入口华为| 成人av无码一区二区三区| 在线亚洲午夜片av大片| 国产国拍亚洲精品av在线| 美女丝袜图片一区二区三区| 国产性做爰片免费视频在线观看| 成人无码H在线观看网站| 国产乱人伦偷精品视频下| 免費線上内地av影片| 国产精品不卡a∨在线观看资讯| 亚洲熟妇AV乱码在线| 欧洲国产成年片在线观看| 午夜一区二区三区三区| 春药按摩人妻弓中文字幕| 911在线区啪国自产中文字幕| 国产白丝女仆在线线观看| 国产美女出白浆| 亚洲熟妇无码在线播放| 激情五月六月丁香| 亚洲欧美成人综合久久久伊人| 久久夜色精品国产嚕嚕亚| 人伦人与牲口性恔配视频免费| 日本免费看v视频| (愛妃精選)午夜激情经典国产福利| 日韓在線二區| 久久国产色AV免费观看| 爽爽影院在线免费观看| 久久久久人人超国产精品| 国产夫妻上传超碰在线| 免费无码毛片一区二区A片小说| 色欲av免费 草逼com| 国产亚洲日本你懂的| 久久综合九色综合久桃花网| 精品无码免费成a人片| 久久综合精品二区无码| 大地资源在线观看视频在线观看| 久久caoprom超碰人人看| av在线电影亚洲| 亚洲国产精品99久久久久久久| 亚洲试看黄片久久| 人妻无码久久综合加勒比 | 国产你懂的在线观看| 精品99久久aaa一级毛片| 久久午夜网鲁丝片香蕉| 影音先锋男人看片av资源网在线| 中国精品毛片在线免费观看| 欧美中文字幕欧美亚洲日韩| 国产精品三级在线18线观看| 歐美 亞洲 精品 三區91| 俄罗斯少妇一级毛片| 丰满老熟女一区二区| 久久先锋男人a资源网站| 日韩成人免费久草资源网| 日本国产视频网址| 亚洲欧洲国产精品| 久久一区精品麻豆| 日本三级二区在线观看| 一区二区无码动漫在线观看| 国产色迷迷影院在线观看| 精品一区国产欧美综合一区| 久久综合亚洲中文字幕| 欧美成人午夜大片免费| 亚洲倩色偷拍拍自| 国产99精品成人不卡在线观看| 极品国产美女流白浆视频| 猫咪maomiav永久网址| 欧美一级特黄A大片| 2021最新无码免费| 日本不卡一区二区在线观看| 日本特黄特色aaa大片免费看 | 日本免费福利视频| 美女高潮喷白浆网站| 天天cao在线天天cao在线| 精品久久香蕉国产线看观看| 日本香蕉久久一区二区视频| 美女的胸又黄又www网站免费| 精品国产三级a在线古代| 亚洲欧美国产综合av| 狼友视频免费观看| 国产乱淫精品一区二区三区毛片| 国产成人久久蜜一区二区| 国产又粗又长又猛的色网视频| 亚洲欧美久久久一区二区三区| 天天影视亚洲伊人| 国产又粗又大又爽大片精华液| 亚洲成?v人片在线播放一二区| 亚洲国产资源| 91免费视频软件APP下载| 日本亚洲精品网站| 很黄的网站在线观看| 亚洲倩色偷拍拍自| 色欲人妻综合AAAAA网| 精品亚洲国产成人av制服| 国语自产一区二页欧美一线| 亚洲一区高清| 午夜日本精品一区二区| 亚洲午夜精品午夜亚洲| 中文字幕乱码永久免费| 91精国产在线夜色| 国产成人一区不卡在线观看| 欧美国产日产综合精品| 无码AV国产精品一区二区| 日本午夜精品视频一区二区| 哺乳期喷奶水视频www| 91香蕉视频高清国产内容播放| 岳啊灬啊别停灬啊灬快| 老司机深夜性爱一区二区三区| 欧美日产国产在线一区二区| 国产一区二区三区在线嘿嘿| 国偷自产高清无码一级毛片| 无码热搜电影先生免费全集在线观看| 免费精品国产国语在线不卡| 国产激情无码在线| 国产成人无码av片在线| 青青伊人精品视频在线| 国产精品 色哟哟| 欧美精品黄片在线看| 2021国产91精品对白露脸| 国产一区二区三区在线精品| 先锋资源劲爆激情欧美| 中文字幕午夜精品一区二区| yy午夜私人影院免费| 日本亚洲色大成网站www男男| 日本欧美亚洲一区二区| 麻豆精品国产综合久久| 狠狠视频久久久久站| 人人爽人人爽少妇免费| 在线观看亚洲免费视频| 成人a∨欧美大片| 锕锕锕锕锕锕锕好大污的动画 | 黄片视频大全久久久| 日日夜夜精品| 欧美成在线国产更新影片资源| 甜美人妻出轨中文字幕| 女人让男人桶爽30分钟小视频免费| 日韩人妻无码精品久久久潘金莲| 激情五月综合在线不卡中文字幕| 青青草国产成人一区二区| 污福利网站在线观看| 婷婷五月天免费视频| 成a人片亚洲日本久久91| 日韩精品综合| 黄色免费影视| 国产一级电影在线| 无码a级毛片无码中文字幕| 成人a免费视频中文字幕| 色偷偷东京热男人的天堂社区| 免费观看经典三级在线视频| 日本在线欧洲视频一| 老熟妇女免费资源站| 国产黃色a片三級三級三級m | 无遮挡很爽很污很黄的网站| 欧美日韩第一区精品| 精品丝袜人妻久久久久久| 喷水欧美磁力免费第3页欧美| 日日夜夜爽歪| 国产最强大片免费视频| 加勒比av不卡免费播放器 | 亚洲欧美综合在线一区| 国产无码日韩无码| 国产精品毛片在线播放| 最近中文字幕大全在线电影视频| 亚洲熟妇AV日韩熟妇AV| 久久综合亚洲中文字幕| 中国熟妇丰满videos| 日本在线欧洲视频一| 国内精品久久久久免费| 国产性做爰片免费视频在线观看| 99精品国产99久久97| 亚洲欧美激情gif动态图片区| 久久三级欧美影视| 亚洲成人高清在线| 国产av日韩a∨亚洲av麻豆| 好舒服快吸我乳视频| 一级做a爰片久久毛片a片v| 男女性高爱潮在线观看| 午夜男女无遮挡免费视频| 天天综合久久综合电影网| 911在线区啪国自产中文字幕| 亚洲黄色无码超碰AV在线| 2024中文字幕在线中字下载| 欧洲尺码专区24免费| 性爱国产精品福利在线| 欧美国产在线观看综合| 五月成人深爱激情网| 成 人影片 毛片免费观看 | 国产拍一二三四区在线观看| 亚洲AV无码一区二区二三区四季| 韩国三级无码在线观看| 久久成人毛片A级| 国产精品三级视频大全| 午夜毛片久久精品国产| 国产AV亚洲精品久久久久久小说| 亚洲高清偷拍亚洲韩日欧美专区| 欧美成a人片免费看久久| 91精品久久人人妻人人做| 污污污视频在线观看视频| 欧美日本国产福利| 成人性无码专区免费视频| 最新国产日韩在线| 女人被狂躁c到高潮喷水| 一级a一级a爱片免费免免| 亚洲色最新高清AV网站| 亞洲國產精品久久久久婷婷老年| 青青草成人影院| 国产av一区2区三区| 全免费A级毛片免费看无码下载| 又黄又爽又无遮挡的女人视频| 播放黄色一级大片| 免费国产高清精品一区在线| 青青草国产成人一区二区| 福利美剧在线影院在线高清免费观看 | 午夜视频在线会员国产| 精品热久久久久久久久久久| 纳西ちゃんが腿法角色解析| 日韩AV不卡在线| 老太熟妇性bbwbbwbbw| 亚洲无码最大无码不卡在线| 欧美国产日产综合精品| 校园春色男人天堂| 午夜不卡影院| 日韓激情成人| 国产青草视频在线观看视频 | 国产中出色小说在线观看| 香蕉97人人做视频观看| 精品 视频 视频 在线| 特级婬片女子免费高清视频| 成人国产视频不卡在线等| 久久久久成人精品亚洲国产av无码高清毛片 | 免费无码高清aⅴ| 神马影院手机在线观看| 狠狠婷婷综合久久久久久| 日韩欧美亚洲综合久久影院D3本| 日本免费福利视频| 惠民福利在线播放国产真实女同事| 日韩欧美黄页在线| 年轻漂亮的妺妺6中文字幕版 | 97久久精品人人做人视频思思久久免费国产| 国产一级婬片免费放视频| 久99久视热频免费观看6| 天天干天天色综合网| 亚洲国产精品sss在线观看?v| 99性生活免费视频| 亚洲日韩va在线视频| 国内偷拍 第一页| 午夜大尺度无码福利视频| 国模gogo啪啪中国人体| 午夜福利日本人妻| 日韩亚洲欧美中文字幕影音| 国内精品一区二区视频在线 | 亚洲无码999性爱视频| 久久久91精品亚洲精华高潮ⅤA| 欧美日韩免费区一区二| 国产成人片无码免费视频软件网站 | 精品久久久久久无码一区二区| 在线播放国产av天美传媒| 电影专区欧美日韩国产小说| 多人电影无码在线观看| 国产狂喷潮视频免费观看| 免费精品国偷自产在线读大二| 善良的女邻居2中文字幕| 亚洲国产精品成人AV在线| 三级片中字无码一区二区在线| 久久综合精品二区无码| 美女胸又WWW又黄的视频| 2021一区中文字幕在线| 东京热激情一区二区三区| 黑人强伦姧人妻日韩HD| 久久厕所国产精品嘘嘘| 凹凸福利视频| 亚洲一区二区三区久久av| 国产自偷自线视频在线观看| 午夜激情久久综合啪| 国产一线天嫩芽草| 欧美一卡二卡≡卡四卡| 黄网站免费现在看| 91尤物在线观看精品| 亚洲精品少妇高清| 国产自在线拍视频国产gav| 亚洲精品网站在线| 在线观看一级毛片免费| 欧美日韩做性视频| 车上激情(H)小说| 很黄的网站在线观看| 亚洲毛片视频一级| 人妻欧美日韩在线| 日韩精品亚洲成本人专区 | 香港韩国三级伦理片在线播放| 亚洲欧美国产日韩字幕| 欧美日韩熟女一区| 免費線上内地av影片| 久草热在线观看| 老师扒开她的黑森林让我添| 桃色在线免费视频| 久久久久成人免费观看影院| EEUSS影院www在线窝窝| 亚洲日本在线观看色网视频| 亚洲一区二区三区久久av| 久久无码中文字幕东京热| 男女18禁啪啪无遮挡激| 中文字幕v日韩专区v欧洲专区| 日韩欧美国产成人大全| 欧美A级毛欧美1级A大片放| 97无码视频在线播放| 亚洲综合视频婷婷| 国产日韩亚洲无码| 亚洲无码久久久精品| 欧美一区2区三区4| 三级毛片视频国产| 久久久精品国产亚洲av综合| 女人乱人伦国产在线观看| 成人午夜电影亚洲一区| 美女熟女一二区不卡| 国产精品视频第一区| 在线看欧美国产| 2021最新无码免费| 国产精品秘国产A级| 影视综合自拍乱伦| 成人在线一二三| 国产日韩欧美在线观看播放| 六月丁季色欲Aⅴ| 人妻三级日本香港三级极99| 五月天丁香五月| 无码人妻系列在线| 三区人妻欧美果冻传媒在线观看视频| 人妻制服丝袜有码无码中文字幕 | 欧美精品黄片在线看| 诱人的女邻居在线观看| 一级做a爱片久久毛片a高清| 国内精品视频兔费一区二区 | 99久久久国产高清| 免费无码高清aⅴ| 天天操天天添| 91香蕉国产福利片| 精品少妇裸体无码av专区| 亚洲综合卡通动画激情| 高潮videossex潮喷另类| 麻豆传播媒体网站入口官网下载| 高清无码在线观看视频国产无码内射 | 午夜三级中文在线观看 | 国产成人无码A?片在线观看| 人妻字幕字幕中文| 成人性无码专区免费视频| 久久黄色综合红色| 国产精品乱码久久久久久小说 | 精品人妻天天爽天天做| 熟女乱色一区二区三区| 成人无码区免费AⅤ片在线观看| 亚洲东京热一区二区三区| 日本特黄夜夜爽大片| 岛国大片免费观看| 野花2019社区高清视频免费| 国产人和拘做受视频免费| 久久久无码免费毛片色欲av| 日韩 欧美 久久| 单亲妈妈用性缓解孩子压力| 亚洲av无码京香无码av| 欧美一区二区中文字幕在线| 亚洲综合无码AV一区二区三区| 人妖无码第一页| 91精品一区二区久久| 黄网在线免费观看视频| 男女一级a大片免费视频| 亚洲区日韩中文字幕在线视频| 日本一卡二卡三新区| 91苏州晶体有限公司ios| 偷拍视频国内精品| 最好看最新的中文免费视频| 裸体美女啪啪十八禁免费网站| 中文字幕第一页五月天丁香第一页婷婷丁香| 么公又大又硬又粗又爽视频电影| 人妻无码精品在线播放| 女的扒开腿让男的猛进猛出| 美美女视频黄的免费网站| 中文字幕日韩高清版毛片| 日韩av一区二区免费看| 国产精品久久电影中文字幕| jizz老师好多水| 亚洲人成网站18禁止中文字幕 | 亚洲日产乱码天堂| 人妻一区二区三区蜜桃| 91视频九色欧美| 99国产免费最新视频| 免费av网站在线播放| 国产人成一区二区三区影院| 亚洲国产精品毛片一区| 国产最强大片免费视频| 精品无码一区二区三区不卡| 人妻在线97视频| 国产免费观看黄AV片麻豆| 亚洲精品大尺码在线观看| 国产高潮流白浆喷水免费| 久久午夜无码鲁丝片秋霞电影| 午夜精品视频免费看| 好吊妞在线新免费视频观看| 日日大香人伊一本线久| 欧美在线观看免费专区| 曰本一区二区三区片视频| 秋霞电影午夜理论2020 | 欧美成ee人免费视频| 又长又硬又粗一区二区三区| AⅤ无码免费永久在线观看| 日本三级蜜桃在线播放| 高潮videossex潮喷另类| 欧美日韩国产精品激情| 亚洲高清成人不卡| 高清中文字幕一区二区三区| 国产精品第一区第二区| 在线亚洲午夜片av大片 | 国产大学生无套露脸在线视频| 日本亚洲精品网站| 最新国产日韩在线| 国产精品网站自拍一区欧美| 日韩亚洲欧美中文字幕影音| 小黄鸭视频app下载| 欧美aa一级久久网| 锕锕锕锕锕锕锕好大污的动画 | 性欧美videofree高清极品| 亚洲国产一区二区三区99| 婷婷精品一区二区在线观看| 美女丝袜图片一区二区三区| 国产又粗又大又爽大片精华液| 深田咏美一区二区三区av高清| 大屁股人妻女教师撅着| 色欲一本色道久久88综合亚洲| 欧美日一级片| 婷婷丁香五月综合色| 中文无遮挡好黄h肉视频在线视频| 无码一区二区三区播放| 色老久亚洲av不卡无码国产| 超视频碰97在线播放| 超碰在线人人爽| 午夜大尺度无码福利视频| 欧美日本亚洲一站二站| 藏经阁成人搞基视频网站在线观看| 精品精品国产一区二区三区| 中文字幕丝袜无码一区二区| 中文字幕玖玖资源亚洲精品| 一级做a爱全免费视频免费的| 综合久久久久久婷婷| 蜜桃羞羞小视频在线观看| 婷婷激情五月天综合网社区| 国产大学生无套露脸在线视频| 无遮挡污污网站免费| 欧美中文字幕在线网址| 6080yyy午夜理论片三男两女 | 中国浓毛少妇毛茸茸| 成人午夜视频免费看欧美| 人妻一区二区三区四区兽交| 欧美色亚洲高清视频在线| 欧美色亚洲高清视频在线| 粗壮公每次进入让我次次高潮 | 午夜不卡影院| 亚洲女同一区二区中文字幕 | 国产一级精品免费视频观看大全| 91抖音成长人版破解安装苹果破解版| 国产精品福利无圣光在线一区| 国产精品宅男宅女在线观看擁有海量影視資源| 中文字幕亚洲综合久久蜜桃| 久久精品免视看成人国产| 久久综合一本加勒比色88| 成在人线αV无码免费高潮喷水| 天天躁久久夜夜躁| 性色福利刺激无码专区| 欧美一级特黄A大片| 久久亚洲精品欧美| 国产乱人无码伦AV在线线A| 正能量不良网站直接进入窗口破解版| 中文一级黄色片| 亚洲中文字幕av.| 中文字幕日韩小视频| 凹凸福利视频| 美女日批一区二区三区| 亚洲成人黄片影院| 五色视频精品全部免费| 蜜芽永不失联2023| 人伦人与牲口性恔配视频免费| 一个人免费高清在线观看| 69式荫蒂被添全过程频| 国产真实激情在线观看电影视频| 高清精品中文综合| 国产精品日本欧美一区二区| 91在线免费视频网站| 国内精品视频兔费一区二区| 国产伊人啪啪亚洲无码二级 | 亚洲视频欧美视频另类视频| 一区二区三区视频99国精品午夜| 人人天天大胆精品| 亚洲无玛在线观看| 国产你懂的的在线网站| 欧美老年人成人在线视频| 加勒比东洋精品映画防屏蔽 | 国产激情无码在线 | 制服丝袜亚洲中文在线观看| 国产亚洲精品a久久777| 亚洲不卡成人免费视频| 五月天中文字幕一区二区| 精品无码免费成a人片| 男女午夜免费爽爽爽试看在线| 中文字幕日韩小视频| 免费看日本人妻潮水喷av| 狠狠亚洲色香五月综合排名| 亚洲午夜理论av| 国产有码在线观看| 毛片免费全部播放| 日韩经典在线视频播放一区| 97久久精品人人做人视频思思久久免费国产 | 一本大道久久东京热| 午夜男人的天堂| 麻豆国产成人三级视频| 天天操天天添| 人妻无码少妇一区二区三区| 九九九九在线永久免费视频| 欧美精品一区二区三区在线视频| 国产不卡一卡2卡三卡4卡乱码| 大地资源中文第3页| 国产又粗又大又色网网视频 | 国产精品激情久久久久久| 丰满老熟女一区二区| 午夜精品久久久久久久第一页下载| 亚洲依依成人综合在线网址| 妺妺窝人体色69| 成人3级视频在线免费观看| 97aⅤ超碰亚洲精品少妇| 惠民福利国产农村妇女毛片精品久久 | 日韩精品亚洲成本人专区| 国产成人啪免费视频| 国产成人无码av一区二区在线| 五月天综合在线| 成人漫画av在线免费| 无码a级毛片无码中文字幕| 全国aⅤ一区二区高清在线观看| 国产福利小视频免费高清| 嗯 好爽 好多水 好大视频| 成品人短视频推荐app| 色吊丝最新永久免费观看网站| 喷水欧美磁力免费第3页欧美| 色综合久久久久综合999| 深夜av毛片一区二区三区| 狠狠se婷婷亚洲中文字幕宅男 | 奇777超碰欧美日韩亚洲| 亚洲日本在线观看色网视频| 免费看片无码视频免费| 91在线精品日韩一区免费| 中文字幕家庭乱伦| 国产精品第一区第二区| 中文字幕无码高清晰| 国产白丝女仆在线线观看| 大伊香蕉精品视频在线直播| 日韩免费福利一区二区三区 | 丝袜美腿高跟国产极品老师| 婷婷肏屄视频一区二区三区| 久久99久久99精品免费免费| 337p日本欧洲亚洲高清鲁鲁| 成人福利av网站| 亚洲日本v?中文字幕久久| 大肉大捧一进一出好爽视频mba | 99视频精品国产在线视频| 精品视频在线观看日韩| 日韩一卡二卡三卡四卡免费观在线| 欧美成黄一级午夜在线国产| 99精产国品一二三产区区别| 精品在线网站| 亚洲精品一区二区三区无码| 久久久人妻少妇一区二区三区 | 最近免费视频中文2019| 久久久久久AV无码免费肉站| 激情视频一区亚洲欧美专区| 欧美一级性爱视频在线免费看| 國產亞洲精品免費| 老湿机一区二区三区| 妺妺窝人体色69| 久久精品黄色一级| 亚洲精品综合欧美精品综合| 亚洲国产激情| 老板把舌头伸进我下边视频| 波多野结衣免费线在线| 国产白丝女仆在线线观看| 欧美日韩国产色| 台湾一级特黄精品大片| 亚洲人成影院在线观看网色| 国产高潮大量喷水AV在线播放| gogo日本大胆免费高清| 欧美男人操亚洲女人动态视频免费看| 久久一区精品麻豆| 黄网一区二区视频区| 国产综合专区一区二区| 国产一区二区h在线观看| 97精品伊人久久大香线蕉app}| 激情五月六月丁香| 欧美成狂野欧美在线观看| 久久精品国产亚洲AV无码不| 国产黄色a三级三级看三级| 国产电影精品久久| 国产精选大秀一区二区| 国产精品综合小说区| 亚洲无码国产不卡二区| 噼里啪啦在线看免费观看| 午夜超碰在线观看| 天天去天天看天天爽| 91免费视频软件APP下载| 亚洲无码999性爱视频| 哪些国产人妖有视频网站| 国产美女黄性色AV| 国产无码日韩无码| 人妻字幕乱码免费中文| 又色又爽又黄的视频件下载| 国产精品厂爽爽va在线| 激情综合在线亚洲九月天| 本免费AV无码专区一区| 精品少妇裸体无码av专区| 精品久久久久九九九九国产潘金莲 | 亚洲国产一成久久精品 国产成人综合| 超爽毛片国产精品久久| 极品丰臀推荐最新S性大神| 女人骚逼被鸡巴插得流水软件| 国产精品秘国产A级| 欧美日一级片| 国产日韩欧美在视频一区二区久久 | 成人免费国产不卡的视频| 精品午夜影视网科幻电影免费观看全集高清 | 久久精品国产亚洲波霸| 国产精品欧美搞黄在线观看| 五月天激激婷婷大综合蜜芽| 玖玖九在线热视频| 免费观看国产美女裸体网站| 亚洲精品日韩欧美中文字幕| 黄色国产精品一区| 成人AA片免费视频毛片| 亚洲一区二区Av毛片| 久久黄色片视频日本一区二区三区| 射插插插免费视频| 日韩美女激情毛片免费看| 国产一区二区三区在线嘿嘿| 56uuu中文字幕一及| 日本少妇不卡| 男女性高爱潮在线观看| 人人澡人人澡人人澡澡| 精品午夜影视网科幻电影免费观看全集高清 | 亚洲国产精品sss在线观看?v| 在线看欧美国产| 国产成人久久蜜一区二区| 日夜影院永久入口天天综合| 久久久精品国产亚洲av综合| 精品福利国产一区二区在线观| 亚洲熟伦熟女新五十路熟妇| 亚洲a∨无码精品色午夜在线观看 日韩在线视频不卡一区二区 | 中文乱码一区二区三区在线观看| 国产内射视频| 国产精品99精品免费无码视频| 国产精品无码中文图集| 国色天香社区视频在线| 最近中文字幕免费精品视频 | 好黄好硬好爽免费视频在线| 欧美一级成人在线| 中文一级黄色片| 天天躁天天碰天天看| 日韩一区二区三区∧VA片| 好爽好紧好湿的免费视频国产| 一级a一级a爰片免费免免2021| 曰韩一级成人网站| 日韩精品一区五码久久| 啪色网视频在线观看| 丝袜美腿高跟国产极品老师| 精品人妻一区二区无码免费| 国产一区二区三区在线嘿嘿| 最新国产日韩在线| 成人午夜视频免费看欧美| 亚洲av不卡一区在线| 国产日本欧美女人视频| 91苏州晶体有限公司ios| 国产三级无码自拍iz| 欧美国产一级特黄AAA大片在线观看| 国产一级精品免费视频观看大全| 日韩日皮在线一区二区| 少妇无套内射免费观看视频| 日韩欧美黄页在线| 国产美女高清一级a在线| 在线观看亚洲AV永久无码网站| 国内精品久久第二页| 精品国产aⅴ一区二区三区不卡| 8888四色奇米在线观看免费看| 免费在线观看的黄色AV| 无码在线视频亚洲色图| 一区二区无码动漫在线观看| 亚洲国产不卡顿免费无码看av| 日韩影音先锋AV大片| 日韩在线理伦片免费观看| 免费少妇精品无码视频| 久久久精品波多野结衣电影 | 车上激情(H)小说| 娇妻偷人被粗大爽ⅹxoo视频| 国产精品美女久久久免费日本中文字幕在线2020 | 国产精品激情久久久久久| 久久国产另类第一| 久久精品国产亚洲AV无码不| 亚洲成人影院在线| 老女人任你躁久久久久久老妇| 亚洲精品人妻在线播放| 嗯啊轻点视频在线观看| 国产第六部久久一级午夜度福利| 国产拍一二三四区在线观看| 日本在线精品a首页正| 亚洲国产不卡顿免费无码看av| 欧美aa一级久久网| 青青草国产成人一区二区| 欧美性爱精品一区二区| 91精品欧美福利免费观看| 专干日本老妇HD| 电影联盟午夜福利| 少妇人妻中文字幕系列在线看| 国产精品喂奶一区二区三区| 国产精品自在线免费| 91蜜月精品亚洲| 亚洲精品卡2卡3卡4卡乱码| 在线观看亚洲免费视频| 97久久精品人人做人视频思思久久免费国产 | 97aⅤ超碰亚洲精品少妇| 久久国产热精品波多野结衣Aⅴ| 亚洲欧洲国产精品一品骚影视| 亚洲色在线一区二区三区| 日本va天堂中文字幕人妻视频 | 久久精品中文字幕无码有码| 国产一区二区三区在线精品| 国产无码第一页国产视频在| 久久精品国产高清| 国产欧美精品久久久久亚洲| 国产综合久久久久久蜜桃| 麻豆国产亚洲精品视频大全| 日本乱理伦片在线观看胸大| 女人被狂躁c到高潮喷水| 中文有码在线视频| 萌白酱苍穹女仆喷水在线观看| 少妇人妻中文字幕系列在线看| 亚洲码国产精品性色在线| 国产在线卡一卡二卡三卡下载| 亚洲美女自慰在线观看| 中日韩精品视频| 爱爱帝国社区| 精品少妇裸体无码av专区| 一级毛片在线直接观看| 中文字幕家庭乱伦| 秋霞电影午夜理论2020| 日本乱理伦片在线观看胸大| 国产日韩欧美二区每日更新| 91福利精品老师国产老师啪| 99久久er热在这里只有精品15| 国产成人免费不卡在线观看| 国产日韩一区二区视频在线播放 | 久久少妇无码精品| 久久精品99久久国产| 亚洲就去吻婷婷永久网| 日本一卡二卡三新区| 亚洲午夜欧美理论| 欧美高大丰满freesex| 一本色道无码DVD中文字幕| 婷婷成人五月综合激情| 国产亚洲三级中文| 在线观看污国产精品| 亚洲av乱码免费观看| 日韩中文字幕美少妇视频| 美女成人十八禁一区二区| 激情浪漫五月天综合| 九久久波多野结衣| 国产免费观看黄AV片麻豆| 无码欧亚熟妇人妻αV在线外遇| 明星国产一级毛片范冰冰视频| 韩国精品三级bd高清中字| 日本全彩翼漫画全彩无遮挡| 老司国产高清免费视频| 波多野结衣老师出道十六年| 久久久精品免| 亚洲AV无码成人精品区无码| 亚洲欧美精品天堂久久综合一区| 91免费视频软件APP下载| 天天躁久久夜夜躁| 日本大片免a费观看视频+播放器| 惠民福利疯狂做受xxxx高潮欧美| 老师扒开她的黑森林让我添| 色偷偷中文字幕| 亚洲鲁丝片aV无码蜜桃| 极品美女亚洲网站在线观看| 国产18到20岁美女毛片| 免费?级毛片无码?∨中文字幕| 欧美激情五月婷婷| 中文无遮挡好黄h肉视频在线视频| 国产一级精品成人大片综合高清不卡| 少妇把腿扒开让我添69| 久久精品17无码| 精品国产综合成人亚洲区小说| 激情小说激情图片激情视频| 亚洲日韩在线精品第一品| 黄色一级毛片国产成人A∨激情视频厨房 | 成人久久a片一区无码束缚| 少妇搡bbbb搡bbb搡野外| 久久精品视频一区二区三区下| 国产福利小视频免费高清| 国产精品视频观看裸模| 男女性高爱潮在线观看| 色欲99久久人妻精品| 精品国产亚洲一区二区三区在| 东京热av网一区二区三区| 成人无遮羞视频在线观看| 永久在线精品免费视频观看| 日韩毛片在线观看网站| 欧美精品高潮久久久| 国产精品综合久久久久久久免费| 日韩高清免费中文字幕 | 亚洲精品国6porn视频| 精品无人区无码乱码午夜福利| 国产一级大黄片亚洲特级黄片 | 性欧美videofree高清极品| 国产高清无专砖码区2021| 国产精品厂爽爽va在线| 亚洲av无码久久精品狠狠爱麻豆| 女人骚逼被鸡巴插得流水软件| 第四色丁香五月| 国产福利小视频免费高清| 亚洲欧美日韩精品在线| 在线观看+中文字幕| 欧洲尺码专区24免费| 亚洲熟妇无码成人a片| 三上悠亚在线精品一区二区| 香蕉网在线视频| 婷婷成人亚洲| 91香蕉视频高清国产内容播放 | 91香蕉视频高清国产内容播放| 桃色在线免费视频| 免费国产高清精品一区在线| 久久久91精品亚洲精华高潮ⅤA | 粗壮公每次进入让我次次高潮 | 欧美一区二区三区日韩国产 | 国产精品综合小说区| 欧美国产日产综合精品| 免费三级视频在线观看| 中文字幕人成人乱码| 久久日本国产精品123| 亚洲毛片视频一级| 亚洲国产精品成人网址| 国产在线一区无码视频久| 91在线视频黄色| 搡6070老女人老熟女的意思| 天堂久久AV无码亚洲一区小说| 十八禁一区二区天堂| 黄网一区二区视频区| 在线永久看片免费的视频| 日韩经典三级欧美| 黄色免费影视| 亚洲最大熟女毛片精品久久久久| 成a人片亚洲日本久久91| 高清欧美黑人性猛另类精品| 国产女女在线观看高清视频| 国产成人v爽在线免播放观看| 欧美一级特黄A大片| 国产免费永久AV网址| 无码丰满熟妇一区二区浪| 91在线免费视频网站| 免费精品国偷自产在线读大二| 要久久爱高清免费观看电视剧| 萌白酱苍穹女仆喷水在线观看| 又黄又爽又无遮挡的女人视频| 日韩综合无码一区二区| 丰满无码人妻热妇无码喷水| 亚洲东京热一区二区三区 | 亚洲日韩Av中文字幕无码| h肉动漫在线观看| 精品久久久久久免费看| 亚州av永远无码精品| 欧美 日韩 精品 二区| 国产精品99久久久久久人四| 激情浪漫五月天综合| 国产高清啪啪| 国产高清精品免费区| 任你躁久久久久久妇女AV| 国产精品99久久久久久人四| 亚洲第一啪啪色欲av| 国产av一区2区三区| 99在线视频免费观看6| 久久久久久久久午夜福利| 亚洲国产瑟瑟无遮挡精品免费观看| 亚洲熟妇无码成人a片| 久久亚洲激情综合网| 国产门事件在线亚洲日韩欧美| 亚洲成人av色婷婷| 亚洲一区网站观看| 亚洲精品国产输五月天丁香| 高清无码毛片免费播放| 国产精品一区小视频| 亚洲av无码精品无码电影| 精品性爱视频网址| 欧美日一级片| 色99热久久偷拍| 国产成人亚洲精品91专区高清 | 色婷婷久精品午夜福利| 惠民福利曰韩无码AV片免费播放| 亚洲精品韩国专区在线专看| 亚洲产国偷v产偷v自拍一区| 久久伊人亚洲天堂| 国产91最新欧美在线| 香蕉97人人做视频观看| 我要看三级黄色片子| 国产精品久久成人免费观看| j妓女网站在线观看国产| 一级婬片试看15分钟水多| 丰满大乳少妇在线观看网站| 忘忧草视频在线观看直播| 日本免费高清一二三区| cao死你 好湿好紧好爽欧美大片| 激情小说激情图片激情视频| 精品国产天天在线2019| 深田咏美一区二区三区av高清 | 国产又粗又黄又爽的免费视频| 亚洲综合另类区色噜噜98欧美| 特级婬片国产高清| 国产久久精品自拍视频| 国产亚洲精品综合成人| 国产一级性爱亚洲一级黄| 午夜特黄a级毛片免费看| 一本加勒比HEZYO美痴女| 亚洲AV肉丝网站一区二区无码| 日日摸日日操| 愛妃為您提供精品国产成人国产在线观看 | 黄网站免费现在看| ?V无码无在线观看免费| 亚洲区日韩中文字幕在线视频| 甜美人妻出轨中文字幕| 成年女人免费视频毛片 | 久久av黄色精品| 亚洲色最新高清AV网站| 国产精品囗交吞精视频 | 欧美日韩精品dvd在线观看| 中文一级黄色片| 日韓激情成人| 亚洲国产精品毛片一区| 国产精品亚洲一区二区三区妖精| 日韩美女激情毛片免费看| 亚洲日本乱码中文在线电影亚洲| 亚洲试看黄片久久| 国产精品欧美综合在线| 日本高清仑乱少| 国产片免费福利片永久不卡| 码一区二区三区AV免费蜜桃视| 久久成人18免费网站| 欧美亚洲性色影视在线| 美女精品久久久久久国产| 久久久久久久久午夜福利| 国产成人精品综合久久久性色| 办公室秘书娇喘呻吟在线视频| 精品码人妻中文无码一区二区| 国产精品免费无遮挡| 最新无码a∨在线观看| 亚欧三区在线观看| 精品福利国产一区二区在线观| 哔哩哔哩漫画在线漫画免费观看| 国产在线视频福利资源| 99久久婷婷国产综合亚| 国产中日韩久久久噜噜久久| 国产91最新欧美在线| 一本之道无码亚洲道久久| 日韩精品中文高清一区| 狐狸视频APP污污污| 自拍偷在线拍每日更新| 亚洲欧美综合在线一区| 日韩高清在线中文字幕一| 亚洲国产激情| 高清无码不卡在线DvD| 国产成人免费高清直播app| 日本少妇深喉口爆视频| 在阳台调教sm撅臀打屁股作文| 欧美黑人巨大巨粗性AAAA| 高清无码在线观看视频国产无码内射| 制服肉丝袜亚洲中文字幕| 最近中文字幕免费mv在线直播| 天堂资源中文www| 亚洲精品日韩欧美中文字幕| 欧美激情五月婷婷| 播放一级毛片真人| 亚洲国产另类久久久精品网站| 国产一级一级一级片| 国产三级hd在线观看视频| ?V无码无在线观看免费| 在线视频欧美一级A做片| 天堂网www中文天堂在线| 99久久久无码国产精品69| 丰满少妇av无码区| 亚洲国产日韩在线人高清不卡| 亚洲试看黄片久久| 久久亚洲精品欧美| 国产午夜福利综合网| 青青草久热精品视频在线观看| 在线观看国产更新视频| 小13箩洗澡无码自慰av久动漫 | 日韩午夜福利免费视频| 无码一区二区三区播放| 久久黄色综合红色| 色婷婷久精品午夜福利| 国产在线卡一卡二卡三卡下载| 国产无码日韩无码| 欧美日韩中文三级一区| 国产精选大秀一区二区| 亚洲国产日韩精品成人网| 91久久精品无码毛片| 國產亞洲精品免費| 狼友视频免费观看| 亚洲第一啪啪色欲av| 幻女free的性俄罗斯| 欧美日韩国产免费区二区三区| 国产精品99久久久久久人四| 黄色最新网址| 精品国产高清在线观看| 少妇人妻系列无码| 欧美男同自慰GAY巨大飞机杯| 中文无码av制服丝袜| 制服肉丝袜亚洲中文字幕| 一级做a爰片久久毛多水多| 亚洲人成无码WWW久久小尤奈| 97超碰碰懂色一区二区三区| 久久99精品国产麻豆| 十二以下岁女子毛片免费| 无码中文字幕日韩观看| 国偷自产高清无码一级毛片| 了解最新日韩草逼视频| 男女爽爽爽免费视频| 久久精品一区二区三区无码免费| 国产精品秘入口18禁麻豆免会员 | 亚洲色图欧美另类国产| 妓.女不卡一二区| 中文字幕日本在线视频二区| 精品国产天天在线2019| 国产精品免费av片在线观看下载按摩| 欧美一级成人在线| 好舒服快吸我乳视频| 亚洲AV成人一区二区| 一本一道在线免费播放| 手机高清国产无码看片| 国产精品亚洲?∨无人区| 玖草在线中文在线2018| 极品国产美女流白浆视频| 国产午夜无码AV毛片| 男女激情国产免费网站欧美视频| 国产日本欧美女人视频| 午夜不卡影院| 九久久波多野结衣| 国产精品国产中国久久| 青青国欧美色欧美亚洲另类二区图片| 一区免费视频在线观看| 日本全彩翼漫画全彩无遮挡| 亚洲熟妇无码在线播放| 偷拍视频国内精品| 小柔在舞蹈室被c到高潮3| 日韩 欧美 久久| 最新国产成人A∨综合无码| 成人久久三级免费欢| 国产短视频另类视频免费| 无遮挡粉嫩泬久久久久| 日日摸夜夜添免费毛片小说| 黄色毛片色天堂app| 高清无码不卡在线DvD| 久久亚洲精品国产美女毛片| 国产三级精品三级精品在一区| 能在线上直接观看的AV片| 日本视频不卡一区二区| 日本国产高潮免费在线播放| 久久黄色片视频日本一区二区三区| 亚洲不卡一区二区中文在线| 人妻一区二区三区毛黑又多无码| 国产乱人伦偷精品视频下| 亚洲无码999性爱视频| 亚洲AV无码区东京热久久| 最新无码a∨在线观看| 偷柏自拍亚洲综合在线| 亚洲国产一二区午夜国产| 男女做爰全过程免费| 国产精品久久电影中文字幕| 日本高清仑乱少| 岛国大片免费观看| 欧美性爱视频网不下载| 在线看视频国产888| 无遮挡粉嫩泬久久久久| 国产蜜芽一区二区三区在线观看| 午夜免费福利社| 日韩精品区二区三区在线观看| 久久久久久久中文精品字幕久久久免费国产 | 久久综合九色综合久桃花网| 欧美成ee人免费视频| 极速影院国产91在线| 鲁一鲁一鲁一鲁一曰综合网| 欧洲尺码专区24免费| 亚洲第一狼人久久五月天婷婷| 欧美黄色一区二区三| 亚洲乱中文字幕| 三级国产污视频在线观看| 无码电影免费在线播放 | 性色av一区二区三| 国产亚洲成人精品91| 国产精品88久久久久久| 一本久久a久久精品綜合夜夜| 国产成人h动漫一二区无码| 亚洲国产精品丝袜无码| 国偷自产高清无码一级毛片| 日韩欧美中文字幕热| 亚洲黄色毛片大全| 国产精品午夜宅男| 这里只有精品久久| 亚洲人成人伊人成综合网| 国产人成一区二区三区影院| 国产成人手机在线| 久久婷香五月综合色啪| 激情浪漫五月天综合| 国产美女丝袜在线观看| 國產熱門亞洲綜合歐美韓國| 久久黄色综合红色| 丝袜亚洲精品中文字幕| 年轻漂亮的妺妺6中文字幕版| 国产午夜福利短片精品视频| 亚州欧州一二三四五区| 国产在线视频福利资源| 在丈前下药侵犯人妻在线| 国产超碰保健护理私密处| 欧美在线做性视频一区二区| 日韩高清在线中文字幕一| 黄色录像一区二区| 好吊妞在线新免费视频观看| 亚洲国产日韩在线成人蜜芽| 亚洲中文字幕欧美第一| 麻豆天美传媒av国产剧情| 国内偷拍 第一页| 久久久国产精亚州aⅴ哟哟哟| 亚洲a∨粉嫩一二三区| 国产ts人妖另类专区|
